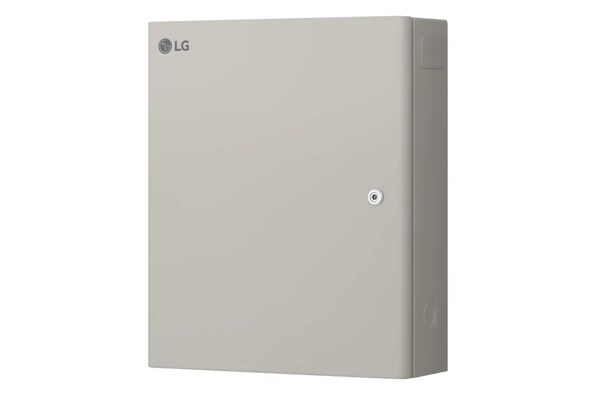

LG Home Series Smart Energy Box
REA200AP0
LG Home Series Smart Energy Box
Key Features
All Specs
- Key interface integrating with LG Home Series Energy Storage System (required)
- AC coupled all-in-one system with a seamless startup process
- 7" touch screen LCD HMI display for commissioning without WiFi or apps
- Integrated touch-screen HMI and Installer Setup Wizard for streamlined setup
- Web-based EnerVu monitor and installation tool for performance analysis | LG ThinQ Home Management System app for convenient energy usage control and monitoring
- Connects up to four LG Home Series units
Compare
Specs & Resources
SE Box - General Specifications
AC Meter Accuracy
+/- 2%
Grid Frequency (Nominal)
60 Hz
Input Short Circuit Current Rating
10 kAIC?
Max Continuous AC Current Rating
160 A
Backup Transfer Time
< 100 ms
Nominal Voltage (L-N/L-L)
120/240 V Split Phase
Modularity
Up to 4 Home 8 units
Backup Operation
Automatic Disconnect for Seamless Backup
Over Current Protection Device
100 ~ 200 A, Service Entrance Rated ?, ?
Max AC Current Rating
200 A
Operating Mode
PV Self-Consumption, Time-of-Use (ToU), Backup Only, AI Mode
Overvoltage Category
Category IV
SE Box - Interface
External Device
MODBUS
Internet Connection
Ethernet 10/100, WLAN (802.11 b/g/n)
User Interface
7-inch Touch LCD, LG ThinQ® App (User), EnerVu Web (Installer)
Home 8 Stacking - Single SE Box
Battery Capacity (kWh)
1 Home 8 Unit: 14.4, 2 Home 8 Units: 28.8, 3 Home 8 Units: 43.2, 4 Home 8 Units: 57.6
Rated AC Power (kVA)
1 Home 8 Unit: 9, 2 Home 8 Units: 18, 3 Home 8 Units: 27, 4 Home 8 Units: 36
Max AC Power (kVA) 10 Sec
1 Home 8 Unit: 7.5, 2 Home 8 Units: 15, 3 Home 8 Units: 22.5, 4 Home 8 Units: 30
SE Box - Wire Gauges
Neutral (Large)
Cu/Al : 6 AWG ~ 250 KCMIL
Neutral (Medium) and Ground
Cu/Al : 14 AWG ~ 2/0 AWG
Backup/Non-backup load lugs (L1,L2)
Cu/Al : 6 AWG ~ 250 KCMIL
Grid lug (L1,L2)
Cu/Al : 6 AWG ~ 300 KCMIL
CSR/BW Breaker (L1,L2)
Cu/Al : 6 AWG ~ 300 KCMIL
Disclaimer
Disclaimer1
? Tested by NEMA 250 ? 10-years Limited Warranty: Standard limited warranty period is five years parts/energy capacity for qualified products. Upon expiration of original manufacturer’s limited warranty, an extended limited warranty may apply (ten years parts/energy capacity) for qualified products registered with LG’s ThinQ® service and connected to internet. Full limited warranty terms are available at lgusa.com/ess ? When protected by Class J fuses, LG, SE Box, is suitable for use in circuits capable of delivering not more than 22 kA symmetrical amperes. ? LG SE Box is not suitable for use as service equipment in Canada. ? AI (Artificial Intelligence) mode operates based on the tariff setting in ToU.
Disclaimer
¹ Adjustable, limited by the battery pack output capability such as charging/discharging power derating by the atmosphere temperature. ² Usable energy might be reduced for enhancing the battery lifetime and system stability. ³ Verified according to LG Electronics conditions. ? AC to battery to AC with 4.32 kW charging and 2.88 kW discharging power at 25?C ( 77 ?F) under the beginning of life.
All image simulations are for illustration purposes only.
