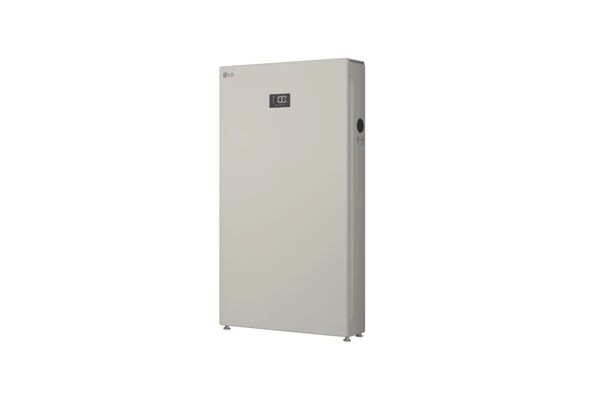

LG Home 8 Energy Storage System

Name: LG Home 8 Energy Storage System
Brand: LG Electronics
SKU: RA768K16A11
Availability: OutOfStock

RA768K16A11

LG Home 8 Energy Storage System

Key Features

All Specs

Innovative residential energy storage solution
Scalable design, versatile stacking, and a 10-year limited warranty
Prioritizes advanced battery tech, safety, and straightforward installation
All-in-one system: LG Home 8 battery, Smart Energy Box, ThinQ Smart Monitoring, and EnerVu
Streamlined installation process for quick and easy deployment | Elevate installations with more power and increased energy capacity
Components seamlessly integrate, minimizing intricate setup procedures

Compare

Specs & Resources

Collapse All

Home 8 - Battery

Total Capacity

15.8 kWh

Usable Capacity

14.4 kWh²

Battery Package Types

Cylindrical Li-ion

Nominal DC Voltage

406.56 V

Home 8 - Battery Module

Battery Package Types

Cylindrical Li-ion

Module Nominal DC Voltage

101.64 V

Module Capacity (Min)*

36.9Ah (*Battery Capacity (Nominal) = 38.9Ah)

Module Weight (Max)

26 kg / 57 lb

Module Size[W*H*D]

600 x 212 x 190 [mm] (23.6 x 8.4 x 7.5 [in])

COMPLIANCE

Functional Safety

IEC60730-1 Annex H

Seismic

IEEE 693-2005, High

Safety

IEEE1547, 1547.1, UL1741, UL1741SA, UL1741SB, CA Rule21, UL1741, C22.2 No.107.1-16, UL1642, UL1973, UL9540A, UL1741 CRD PCS

System Safety

UL9540

EMC

FCC Part15 Subpart B

Grid Code

Floor Stand with Wall Support, and Wall Mount

Enclosure

NEMA Type 3R?

Home 8 Stacking - Single SE Box

Max AC Power (kVA) 10 Sec

1 Home 8 Unit: 7.5, 2 Home 8 Units: 15, 3 Home 8 Units: 22.5, 4 Home 8 Units: 30

Battery Capacity (kWh)

1 Home 8 Unit: 14.4, 2 Home 8 Units: 28.8, 3 Home 8 Units: 43.2, 4 Home 8 Units: 57.6

Rated AC Power (kVA)

1 Home 8 Unit: 9, 2 Home 8 Units: 18, 3 Home 8 Units: 27, 4 Home 8 Units: 36

Home 8 - General Specifications

Grid Frequency (Nominal)

60 Hz

Nominal Voltage (L-N/L-L)

120/240 V Split Phase

Usable Capacity

14.4 kWh²

CEC Efficiency (PCS only)

0.98

Rated AC Power (Charging)

7.5 kVA¹

Total Capacity

15.8 kWh

Round Trip Efficiency

> 90% ³, ?

Overvoltage Category

Category IV

Rated AC Power (Discharging)

7.5 kVA¹

Interface

LED Display

Home 8 - Backup Mode

Rated AC Current (Charging)

22.5 A

Rated AC Power (Charging)

5.4 kVA¹

Rated AC Current (Discharging)

31.25 A

Nominal AC Frequency

60 Hz

Max AC Power (Discharging)

9.0 kVA (10s)

Max AC Current (Discharging)

37.5 A (10s)

Nominal AC Voltage

120/240 V Split Phase

Rated AC Power (Discharging)

7.5 kVA¹

Home 8 - Grid Connection Mode

Nominal Voltage (L-N/L-L)

120/240 V Split Phase

Power Factor

- 0.8 ~ + 0.8

Rated AC Power (Charging)

5.4 kVA¹

Rated AC Power (Discharging)

7.5 kVA¹

Rated AC Current (Charging)

22.5 A

Grid Frequency (Nominal)

60 Hz

Rated AC Current (Discharging)

31.25 A

Environmental Specifications

Dimensions [W*H*D]

Home 8 (698 X 1260 X 205 [mm] (27.5 X 49.6 X 8.1 [in])) / SE Box (500 X 600 X 178 [mm] (19.7 X 23.6 X 7.0 [in]))

Ambient Humidity (RH)

5 ~ 95% (non-condensing)

Altitude

< 3000 m (9843 ft)

Storage Temperature

-20 ~ 50?C (-4 ~ 122?F)

Noise

< 47 dB

Cooling

Home 8 (Fan (Forced Air Cooling)) / SE Box (Natural Convection)

Weight

Home 8 (163 kg / 359 lb) / SE Box (25 kg / 55 lb)

Mounting Type

Floor Stand with Wall Support, and Wall Mount

Recommended Operating Temperature

Home 8 (0 ~ 35?C (32 ~ 95?F) @ Discharging 0 ~ 33?C (32 ~ 91.4?F) @ Charging) / SE Box (-20 ~ 50 ?C (-4 ~ 122?F))

Warranty

10 years (Battery: 70% @ 10 years)?

Operating Temperature

Home 8 (-20 ~ 50?C (-4 ~ 122?F) @ Discharging -10 ~ 45?C (14 ~ 113?F) @ Charging) / SE Box (-20 ~ 50 ?C (-4 ~ 122?F))

Disclaimer

Disclaimer1

? Tested by NEMA 250 ? 10-years Limited Warranty: Standard limited warranty period is five years parts/energy capacity for qualified products. Upon expiration of original manufacturer’s limited warranty, an extended limited warranty may apply (ten years parts/energy capacity) for qualified products registered with LG’s ThinQ® service and connected to internet. Full limited warranty terms are available at lgusa.com/ess ? When protected by Class J fuses, LG, SE Box, is suitable for use in circuits capable of delivering not more than 22 kA symmetrical amperes. ? LG SE Box is not suitable for use as service equipment in Canada.

Disclaimer

¹ Adjustable, limited by the battery pack output capability such as charging/discharging power derating by the atmosphere temperature. ² Usable energy might be reduced for enhancing the battery lifetime and system stability. ³ Verified according to LG Electronics conditions. ? AC to battery to AC with 4.32 kW charging and 2.88 kW discharging power at 25?C ( 77 ?F) under the beginning of life.
