49” XE4F-M Series High Brightness Outdoor Displays
$4,533.00
TAA Compliant
49XE4F-M
49” XE4F-M Series High Brightness Outdoor Displays
$4,533.00
Key Features
All Specs
- Brightness(Typ.) : 4,000 cd/m²
- Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
- Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
- Anti-Reflection Coating
- IP56 Design, IK10 Protective Glass
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs

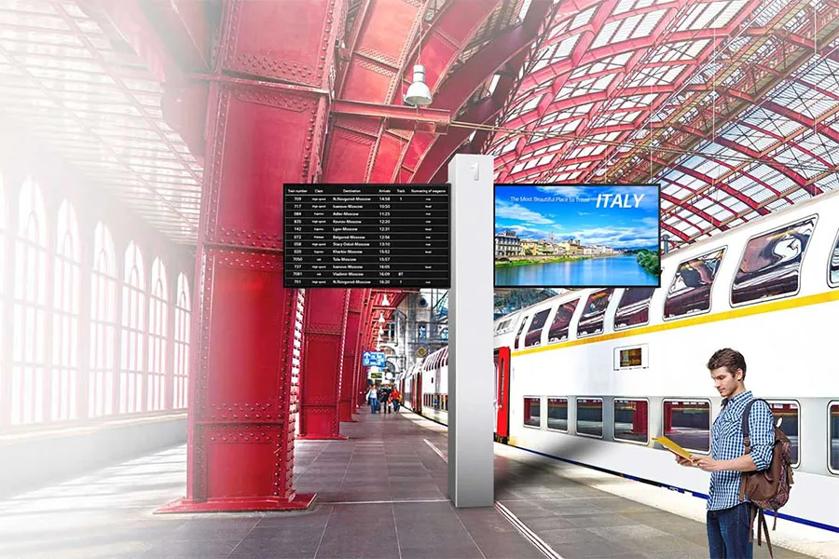

Robust Design with Outstanding Visibility
The slim & robust design of the XE4F-M series signage makes it easy to install, meeting the customer’s needs. This outdoor display can handle most environments and its high brightness will capture your customer’s attention, even under strong and direct sunlight.

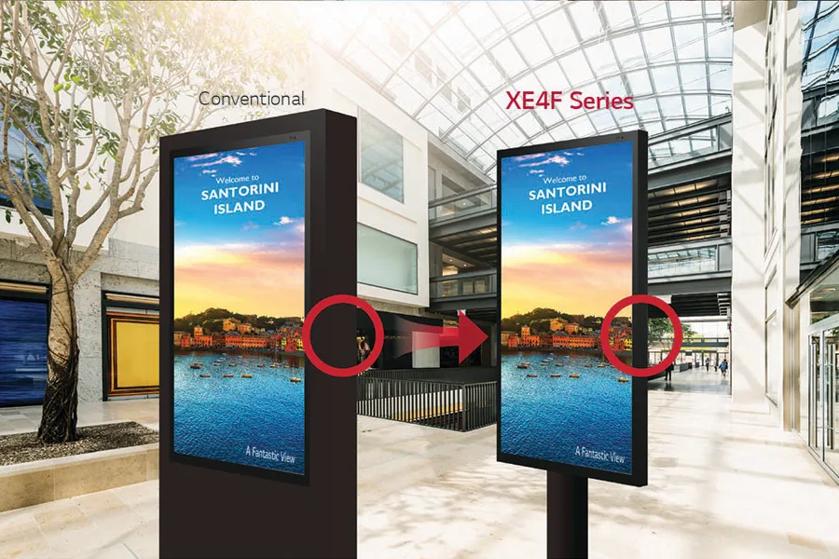

Slim & Light Design
The XE4F-M series is composed of a single display that has a light and slim design. It can be easily customized to suit various external environments with no need for separate casing.

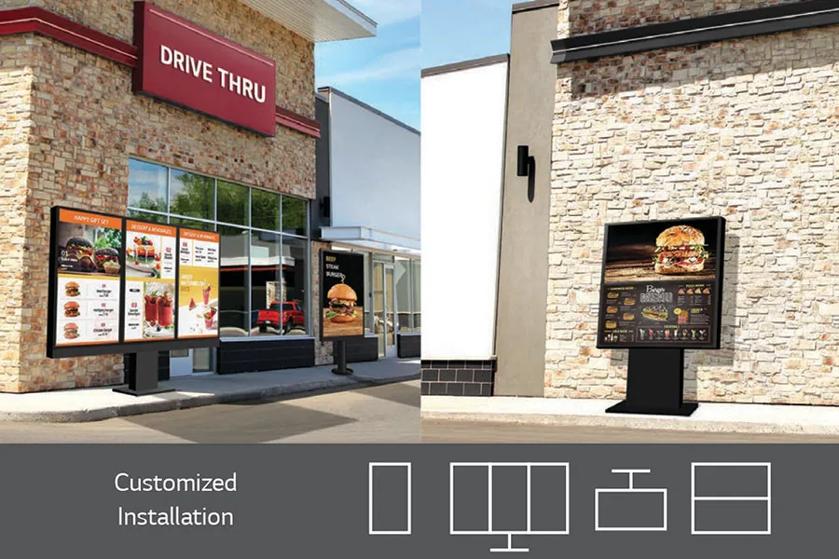

Easy Integration & Customizable
The XE4F-M series outdoor displays are ready to be customized to meet your business needs. From outdoor menu boards to kiosks, the XE4F-M series signage are mount ready and optimized for customers, based on your industry and use.
Bright & Brilliant
The XE4F-M series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

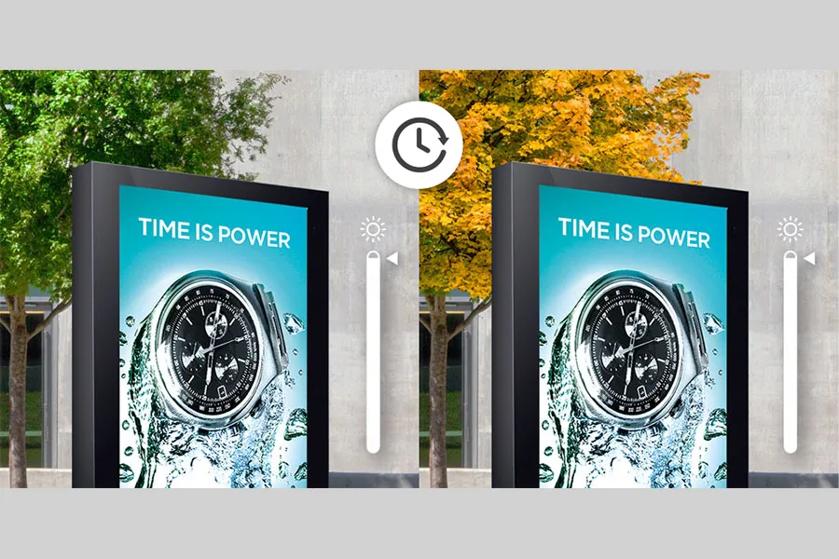

Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
Visible with Polarized Sunglasses
Quarter Wave Plate enables clear visibility even when the viewer is wearing polarized sunglasses.

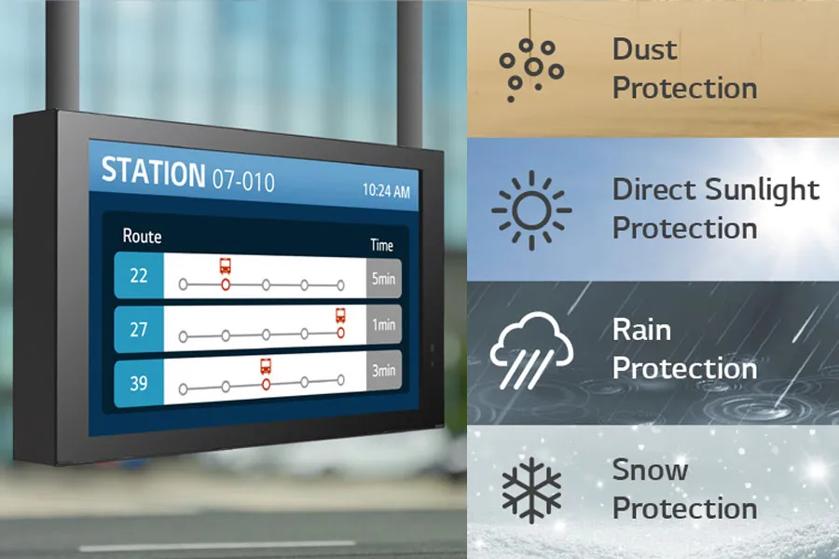

Secured Protection with IP56 Design
The XE4F-M Series is IP56 protected. This means it is designed to withstand water and other weather like damaging effects of the sun, rain, snow, dust and wind. This is an essential feature for outdoor displays.

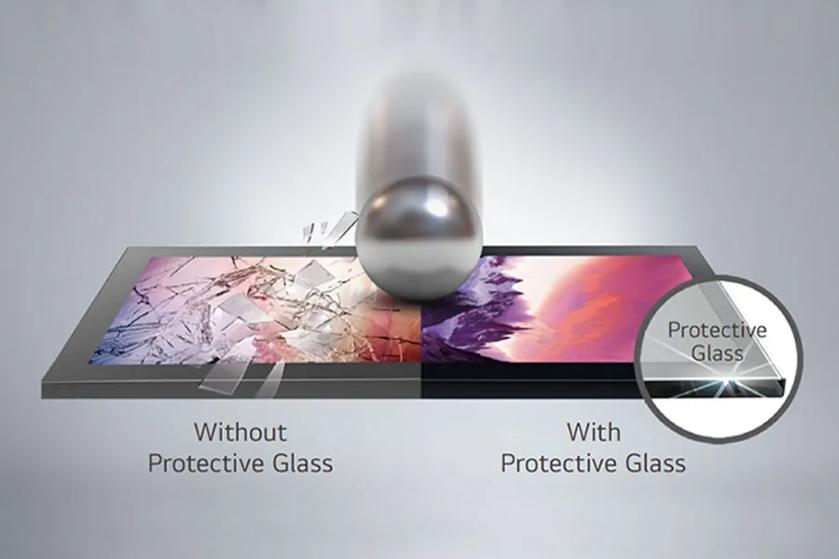

Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.

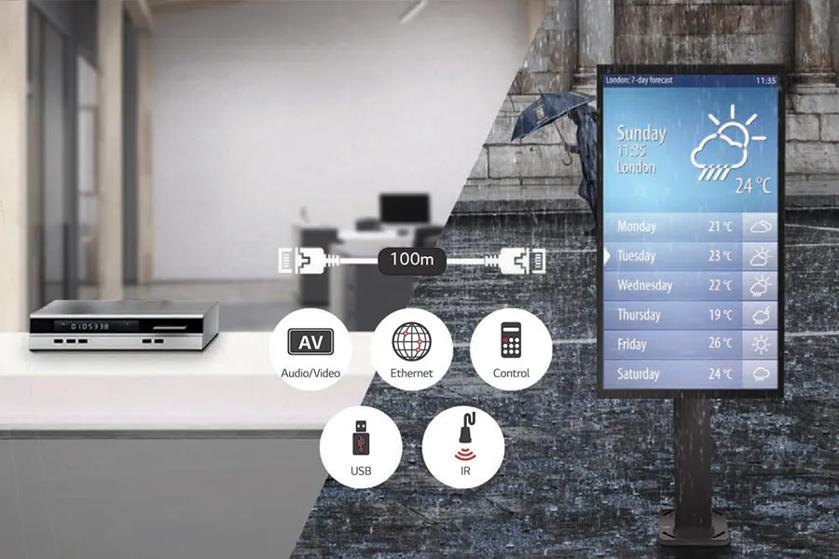

Support HDBaseT ™
XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.*
*XE4F Series doesn't support the power supply.
*XE4F Series doesn't support the power supply.
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
Yes (2)
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
Yes
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (4)
PM mode
No
Picture-in-Picture (PIP)
Yes
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
No
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes (LAN in / HDbaseT port)
Electrical
Power Consumption (Max.)
350W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
Less than 0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
Less than 3.5W (WOL Off) Less than 8W (WOL on)
Power Consumption (Smart Energy Saving - 70%)
140 W
BTU Heat Generation (Max.)
Not Available
BTU Heat Generation (Typ.)
Not Available
Power Consumption (Typ.)
300 W
Mechanical
Bezel Color
Black
Bezel Width
T: 38.4 mm, R/L: 26 mm, B 38.4 mm
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Not Available
Tilt (Face Down)
No
Tilt (Face Up)
Yes (+15˚)
Weight
70.5 lbs / 32 kg
Weight Signage Box
N/A
Weight with Stand
N/A
Shipping Weight
81.6 lbs / 37 kg
Dimensions (W x H x D)
45.4 x 25.8 x 3.5 in / 1,153 x 656.2 x 88.0 mm
Dimensions with Stand (W x H x D)
N/A
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
50.7 x 31.4 x 8.1 in / 1,287 x 797 x 207 mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
No
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
Yes
Protective Glass
Thickness
5 mm
Degree of Protection
Yes (IK10)
Tempered / Chemical Strengthening
Chemical Strengthening
Anti-Reflective
Yes
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
Yes
Shatter-Proof
Yes
Heat Dissipation
Heat exchange
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
Yes
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
Yes
Power Indicator
Yes
Proximity Sensor
No
Humidity Sensor
Yes
Features
Crestron Certified Compatibility
No
Beacon
No
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 4.0
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x2) HDCP 2.2
IR In (3.5 mm)
No
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
Yes (x1) HDCP 2.2
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x2) (Lan (x1), HDbaseT(x1))
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
No
Audio Out (3.5 mm)
No
Touch USB
No
IR Out
No
RJ45 (LAN) Out
Yes (x1)
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
Yes (x1) L/R, 10W+10W
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
No
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arab, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish
Optional Accessories
No
UPC
7 19192 63863 1
Basic Accessories (included)
Remote Controller, Manual (EIG, IG), Regulation Book, 3.5mm to RS232C Adapter, HDMI Cable , POWER CABLE, Battery, Screws
Environmental Conditions
Operation Humidity
5% to 100%
Operation Temperature (Portrait)
N/A
Operation Temperature
-20°F to 122°F / -30°C to 50°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
IP56
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
49"
Panel Technology
IPS, M+
Backlight Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ.)
4,000 nits
Brightness (Max.)
Not Available
Brightness (Min.)
3,200 nits
Contrast Ratio
1300:1
Dynamic Contrast Ratio
500000:1
Color Gamut
NTSC 67%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
8 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
Yes
