55” XE4F-M Series High Brightness Outdoor Displays
DISCONTINUED
55XE4F-M
55” XE4F-M Series High Brightness Outdoor Displays
Key Features
All Specs
- Brightness(Typ.) : 4,000 cd/m²
- Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
- Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
- Anti-Reflection Coating
- IP56 Design, IK10 Protective Glass
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs
IP Rated Reliability
This outdoor display is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
Conformal Coating
Conformal Coating consists of thin protective films that help shield the circuit board and power board against water vapor and solid debris.

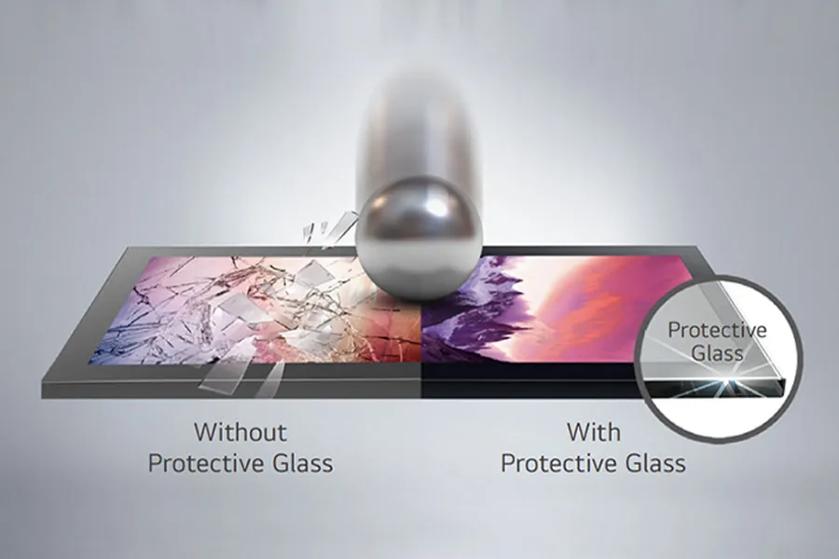

IK10 Protective Glass
This high bright outdoor signage features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
Wide Range of Operating Temperature
This outdoor display can be used under a wide range of operating temperatures from -22°F to 122°F without direct sunlight, and -22°F to 104°F with direct sunlight.*
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
Yes (2)
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
Yes
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (4)
PM mode
No
Picture-in-Picture (PIP)
Yes
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
No
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes (LAN in / HDbaseT port)
Electrical
Power Consumption (Max.)
400W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
Less than 0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
Less than 3.5W (WOL Off) Less than 8W (WOL on)
Power Consumption (Smart Energy Saving - 70%)
170 W
BTU Heat Generation (Max.)
Not Available
BTU Heat Generation (Typ.)
Not Available
Power Consumption (Typ.)
330 W
Mechanical
Bezel Color
Black
Bezel Width
T: 38.4 mm, R/L: 26 mm, B 38.4 mm
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Not Available
Tilt (Face Down)
No
Tilt (Face Up)
Yes (+15˚)
Weight
88.2 lbs / 40 kg
Weight Signage Box
N/A
Weight with Stand
N/A
Shipping Weight
101.4 lbs / 46 kg
Dimensions (W x H x D)
50.9 x 29 x 3.5 in / 1,292.5 x 737.4 x 88.0 mm
Dimensions with Stand (W x H x D)
N/A
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
56.9 x 35 x 8.1 in / 1,446 x 890 x 207mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
No
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
Yes
Direct Sunlight
Yes
Protective Glass
Thickness
5 mm
Degree of Protection
Yes (IK10)
Tempered / Chemical Strengthening
Chemical Strengthening
Anti-Reflective
Yes
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
Yes
Shatter-Proof
Yes
Heat Dissipation
Heat exchange
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
Yes
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
Yes
Power Indicator
Yes
Proximity Sensor
No
Humidity Sensor
Yes
Features
Crestron Certified Compatibility
No
Beacon
No
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 4.0
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x2) HDCP 2.2
IR In (3.5 mm)
No
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
Yes (x1) HDCP 2.2
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x2) (Lan (x1), HDbaseT(x1))
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
No
Audio Out (3.5 mm)
No
Touch USB
No
IR Out
No
RJ45 (LAN) Out
Yes (x1)
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
Yes (x1) L/R, 10W+10W
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
No
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arab, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish
Optional Accessories
No
UPC
7 19192 63862 4
Basic Accessories (included)
Remote Controller, Manual (EIG, IG), Regulation Book, 3.5mm to RS232C Adapter, HDMI Cable , POWER CABLE, Battery, Screws
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
30°F to 104°F / 0°C to 40°C (with Solar) 30°F to 122°F / 0°C to 50°C (without Solar)
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
IP56
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
55"
Panel Technology
IPS, M+
Backlight Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ.)
4,000 nits
Brightness (Max.)
Not Available
Brightness (Min.)
3,200 nits
Contrast Ratio
1000:1
Dynamic Contrast Ratio
500000:1
Color Gamut
NTSC 72%
Color Depth (Number of Colors)
16.7 Million Colors, 8 bit
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
9 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
Yes
