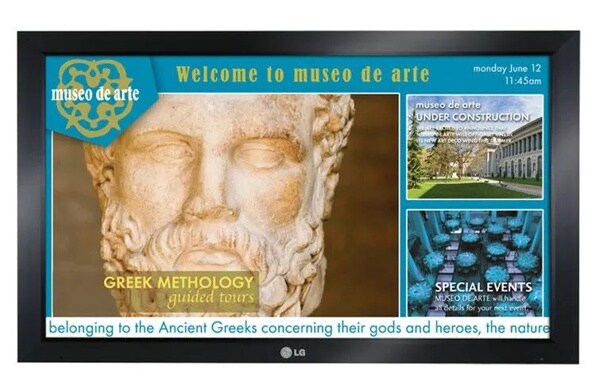

52" class (52.0" measured diagonally) LCD Widescreen Full HD Capable Monitor
DISCONTINUED
M5203CCBA
52" class (52.0" measured diagonally) LCD Widescreen Full HD Capable Monitor
Compare
Specs & Resources
UPC Code
UPC
7 19192 18698 9
AUDIO
Sound Mode
Clear Voice/Standard/Music/Cinema/ Sports/Game/User
Audio Power
20W(10W x 2)
Auto Volume
Yes
Balance
Yes
Speaker On/Off
Yes
REAR INPUTS
Audio Jack Built-In (No Amp)
Yes
PC Formats
Auto Scaling to Full HD
External Speaker Out
Yes
Audio Inputs
2 Plus PC Sound
PC Input via 15-Pin Sub "D"
1 in / 1 out
Audio Output
1
Composite Video Input/ Output
1 in/ 1 out
HDMI/DVI with HDCP
Yes
Discrete IR Input
Yes
Component Video
1 Hi-Res
S-Video
1(S-Video has a priority but there is no input mode)
HDTV Formats
Component: 720p / 1080i / 1080P HDMI: 720p / 1080i / 1080P
RJ-45
Yes
RS-232C
1 in / 1 out, Female-to-Female Crossed Type
VIDEO
Video Input
RGB, HDMI/DVI
H-Scanning Frequency
30 ~ 83kHz (RGB, HDMI/DVI)
V-Scanning Frequency
56 ~ 75 Hz (RGB), 60 Hz (HDMI/DVI)
Sync Compatability
Separate / Composite / Digital
Max Input Resolution
1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
Recommended Resolution
1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
Pixel Frequency
148.5MHz (RGB, HDMI/DVI)
Color Temperature
Warm/Medium/Cool/User
Picture mode
Vivid/Standard/Cinema/Sports/Game/ User1/User2
SPECIFICATIONS
Pixels (H x V x 3)
6,220,800
Display Area
52.0"
Aspect Ratio
16:9
Contrast Ratio
4000:1 (5000:1 DCR)
Native Resolution
1920 x 1080 (Full HD)
Color Depth
1.07 Billion
Surface Treatment
Super clear
Response Time
8ms(G to G)
LCD Panel Type
52"
Brightness
700 cd/m^2
Viewing Angle (H x V)
178° x 178°
S-IPS
Yes
Color Gamut
72%
Tni
75°C
Lifetime
50,000 Hr., Portrait & Landscape
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption-Power Off
1W
Power Consumption-DPMS
1W (RGB) / 2W(HDMI)
Power Consumption-Normal
400W
Power Switch Type
No
SPECIAL FEATURES
Key Lock
Yes
ISM Method
Normal/White Wash/Orbiter/ Inversion/Dot wash
DPM Select
Yes
Source Selection
Digital (HDMI/DVI)/Analog (RGB)/ Component/AV
Time
Clock/On/off time/Auto sleep/ Power on Delay
Temperature Sensor
Yes
Advanced
Gamma/Film mode/Black level/ Noise Reduction
Information Display
Serial Number, SET ID, MNT S/W Version, LAN S/W Version
Auto Power / Source Memory
Yes
Position
H / V
Tracking
Auto/Clock/Phase
Set-up
Language(English/French/Spanish/ Italian/German/Portugues/ Korean/Japanese/Chinese/Russian)
Mute
Yes
Sleep Timer
Yes
Brightness/ Contrast
Yes
Color
Warm/Medium/Cool User Control (R/G/B)
Display Control (RS-232C &Network,ez-NetManager)
Single/GroupWAN control, Scheduling, Instant Messaging, Self Diagnosis(Temp, FAN, Lamp), Alarm Service through mailing, Easy Tile mode setup, S/Wupgrade via Network
Split Zoom (Self Video Wall)
Yes (adjusts for bezel width)
STANDARD CERTIFICATIONS
Safety
UL/c-UL/CB scheme/TUV/NEMKO
EMC
FCC Class "B", VCCI, C-tick, CE, KCC
Erp/Energy Star 5.0
Yes / Yes
RoHS Compliant
Yes
CABINET
Bezel Width
63.6mm
Color
Black
Monitor Weight
93.4 lbs.
VESA Standard Mount Interface
800mm x 400mm (AP-WX60)
Packed Weight
95.9 lbs.
Carton Dimensions
55.7" x 35.4" x 15.1”
Monitor Dimensions
50.5" x 30.2" x 4.6"
