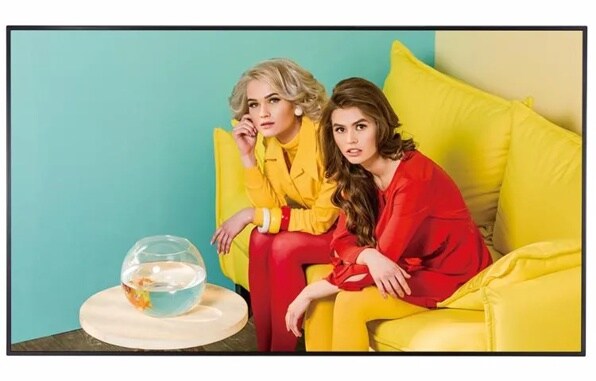

86” UHD UH5E-B Series Signage

Name: 86” UHD UH5E-B Series Signage
Brand: LG Electronics
SKU: 86UH5E-B
Availability: Discontinued

DISCONTINUED

86UH5E-B

86” UHD UH5E-B Series Signage

Key Features

All Specs

Brightness(Typ.) : 500 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 57.9 mm (without Handle and Logo)
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker(10W+10W)

Compare

3 Year Limited Warranty

Buy with confidence knowing your product is backed by a 3 year limited warranty.

Free Delivery

Enjoy free delivery on your business orders.

Free Returns

Shop with confidence. Free returns within 14 days of delivery.

Return Policy

Features and Specs

See All Specs

Digital Signage

Discover innovative display solutions for businesses, enhancing communication and engagement with cutting-edge technology.

Specs & Resources

Collapse All

Software Features

Picture-by-Picture (PBP)

Yes (4)

webRTC (Real Time Communication)

Yes

Picture-in-Picture (PIP)

Yes

Local Network Sync

Yes

Smart Energy Saving

Yes

SI Server Setting

Yes

Setting Data Cloning

Yes

Tile Mode Setting

Yes (Max. 15 x 15)

SNMP

Yes

Group Manager

Yes

Local Contents Scheduling

Yes

HDMI-CEC

Yes

OPS Compatibility

OPS Compatible

Yes

Hospitality Features

Wake on LAN

Yes

Electrical

Power Type

Built-in Power

Power Consumption (Max.)

280W

Power Consumption (Smart Energy Saving - 70%)

215 W / 280 W

Power Consumption (Typ.)

215W

Mechanical

Bezel Color

Black

Bezel Width

14.3 mm (Even)

Weight

108 lbs / 49 kg

Shipping Weight

134.7 lbs / 61.1 kg

Dimensions (W x H x D)

75.8 x 43.2 x 2.4 in / 1,926.2 x 1,097.2 x 60.6 mm

Shipping Dimensions (W x H x D)

81.6 x 49.6 x 11.5 in / 2,073 x 1,260 x 292 mm

Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

Audio/Sound

Built-in Speakers

Yes

Hardware Features

Current Sensor

Yes

Temperature Sensor

Yes

Auto Brightness Sensor

Yes

Features

Cisco Certified Compatibility

Yes

Failover

Yes

Crestron Certified Compatibility

Yes

Beacon

Yes

Play Via URL

Yes

System

Internal Memory

8 GB

Connectivity

HDMI In

Yes (x3)

IR In (3.5 mm)

Yes

DVI-D In

Yes (x1)

DisplayPort In

Yes (x1)

RS-232C In (3.5 mm 4-pin)

Yes

RJ45 (LAN) In

Yes

DisplayPort Out

Yes (x1)

Audio Out (3.5 mm)

Yes

RS-232C Out (3.5 mm)

Yes (x1)

External Speaker Out (3.5 mm)

Yes (x1)

Built-in Wi-Fi

Yes

Warranty & Other

Warranty

3 Year Limited

Assembled In

Korea

UPC

719192624603

Optional Accessories

OPS Kit (KT-OPSF), Wall Mount (LSW640A/B), Touch Overlay(KT-T75E)

Basic Accessories (included)

Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender

Environmental Conditions

Operation Humidity

10% to 80%

Operation Temperature

32°F to 104°F / 0°C to 40°C

Regulatory & Certifications

ERP (Environmental)

N/A

FCC (Regulatory)

EMC Class A

Energy Star (Environmental)

Yes

TAA Compliance

Yes

Smart Features

Screen Share

Yes

LG Software Compatible

SuperSign™ Control+

Yes

SuperSign™ CMS

Yes

SuperSign™ Cloud

Yes

Panel

Screen Size (Inches)

86"

Panel Technology

IPS

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

120 Hz

Brightness (Typ.)

500 nits

Contrast Ratio

1200:1

Viewing Angle (H x V)

178° x 178°

Response Time (G to G)

8 ms

Surface Treatment (Haze)

Operation Hours (Hours per Day / Days per Week)

24/7

Lifetime

50,000 Hrs

Orientation

Portrait / Landscape

Software Features

Picture-by-Picture (PBP)

Yes (4)

webRTC (Real Time Communication)

Yes

Picture-in-Picture (PIP)

Yes

Local Network Sync

Yes

Smart Energy Saving

Yes

SI Server Setting

Yes

Setting Data Cloning

Yes

Tile Mode Setting

Yes (Max. 15 x 15)

SNMP

Yes

Group Manager

Yes

Local Contents Scheduling

Yes

HDMI-CEC

Yes

OPS Compatibility

OPS Compatible

Yes

Hospitality Features

Wake on LAN

Yes

Electrical

Power Type

Built-in Power

Power Consumption (Max.)

280W

Power Consumption (Smart Energy Saving - 70%)

215 W / 280 W

Power Consumption (Typ.)

215W

Mechanical

Bezel Color

Black

Bezel Width

14.3 mm (Even)

Weight

108 lbs / 49 kg

Shipping Weight

134.7 lbs / 61.1 kg

Dimensions (W x H x D)

75.8 x 43.2 x 2.4 in / 1,926.2 x 1,097.2 x 60.6 mm

Shipping Dimensions (W x H x D)

81.6 x 49.6 x 11.5 in / 2,073 x 1,260 x 292 mm

Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

Audio/Sound

Built-in Speakers

Yes

Hardware Features

Current Sensor

Yes

Temperature Sensor

Yes

Auto Brightness Sensor

Yes

Features

Cisco Certified Compatibility

Yes

Failover

Yes

Crestron Certified Compatibility

Yes

Beacon

Yes

Play Via URL

Yes

System

Internal Memory

8 GB

Connectivity

HDMI In

Yes (x3)

IR In (3.5 mm)

Yes

DVI-D In

Yes (x1)

DisplayPort In

Yes (x1)

RS-232C In (3.5 mm 4-pin)

Yes

RJ45 (LAN) In

Yes

DisplayPort Out

Yes (x1)

Audio Out (3.5 mm)

Yes

RS-232C Out (3.5 mm)

Yes (x1)

External Speaker Out (3.5 mm)

Yes (x1)

Built-in Wi-Fi

Yes

Warranty & Other

Warranty

3 Year Limited

Assembled In

Korea

UPC

719192624603

Optional Accessories

OPS Kit (KT-OPSF), Wall Mount (LSW640A/B), Touch Overlay(KT-T75E)

Basic Accessories (included)

Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender

Environmental Conditions

Operation Humidity

10% to 80%

Operation Temperature

32°F to 104°F / 0°C to 40°C

Regulatory & Certifications

ERP (Environmental)

N/A

FCC (Regulatory)

EMC Class A

Energy Star (Environmental)

Yes

TAA Compliance

Yes

Smart Features

Screen Share

Yes

LG Software Compatible

SuperSign™ Control+

Yes

SuperSign™ CMS

Yes

SuperSign™ Cloud

Yes

Panel

Screen Size (Inches)

86"

Panel Technology

IPS

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

120 Hz

Brightness (Typ.)

500 nits

Contrast Ratio

1200:1

Viewing Angle (H x V)

178° x 178°

Response Time (G to G)

8 ms

Surface Treatment (Haze)

Operation Hours (Hours per Day / Days per Week)

24/7

Lifetime

50,000 Hrs

Orientation

Portrait / Landscape
