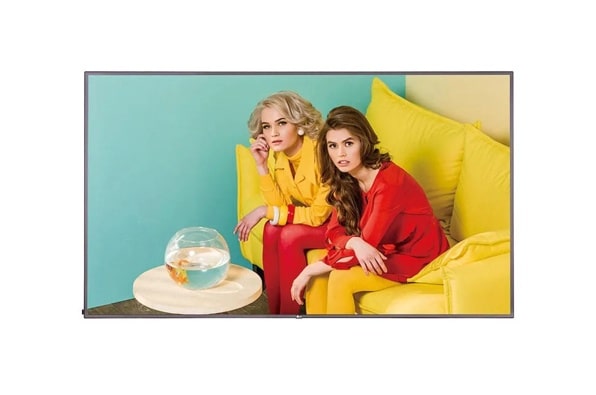

75” UHD UH5E-B Series Signage
$2,000.00
TAA Compliant
75UH5E-B
75” UHD UH5E-B Series Signage
$2,000.00
Key Features
All Specs
- Brightness(Typ.) : 500 cd/m²
- Bezel : 14.9 mm (Even, Off-Bezel)
- Depth : 57.9 mm (without Handle and Logo)
- Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker(10W+10W)
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Specs & Resources
Software Features
Gapless Playback
No
Picture-by-Picture (PBP)
Yes (4)
Control Manager
No
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
No
Auto Set ID
No
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
No
Network Ready
No
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
No
PM mode
No
Picture-in-Picture (PIP)
Yes
Local Network Sync
Yes
Screen Rotation
No
Smart Energy Saving
Yes
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
No
No Signal Image
No
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
No
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
Yes
Hospitality Features
Pro:Idiom®
No
Wake on LAN
No
Electrical
Power Consumption (Max.)
260W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
Not Available
Power Type
Built-in Power
PoE Type
No
PoE Power Class
No
Power Consumption (Display Power Management - DPM)
Not Available
Power Consumption (Smart Energy Saving - 70%)
126W
BTU Heat Generation (Max.)
Not Available
BTU Heat Generation (Typ.)
Not Available
Power Consumption (Typ.)
180W
Mechanical
Bezel Color
Black
Bezel Width
T/L/R/B: 14.9 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
91.5 lbs / 41.5 kg
Shipping Weight
109.2 lbs / 49.5 kg
Dimensions (W x H x D)
66.2 x 37.8 x 2.3 in / 1,682.4 x 960.3 x 57.9 mm
Shipping Dimensions (W x H x D)
71.5 x 44.2 x 9.0 in / 1,816 x 1,123 x 228 mm
Conformal Coating (Power Board)
No
Handle
Yes
VESA™ Standard Mount Interface
600 x 400 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Audio/Sound
Built-in Speakers
Yes
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
Yes
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
Yes
Failover
Yes
System
Operating System (OS)
webOS™
Processor
N/A
Internal Memory
8 GB (System 4 GB + Available 3.6 GB) (eMMC)
Connectivity
HDMI In
Yes (x3)
IR In (3.5 mm)
Yes (x1)
DVI-D In
Yes (x1)
RGB In
No
Audio In (3.5 mm)
Yes (x1)
DisplayPort In
Yes (x1)
RS-232C In (3.5 mm 4-pin)
Yes
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes
USB Type-A In
Yes (x2)
USB Type-C In
No
Power In (DC From External PWR Box)
N/A
Power Loop In
No
HDMI Out
No
DisplayPort Out
Yes (x1)
Audio Out (3.5 mm)
Yes
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
Korea
Warranty
3 Year Limited
Optional Accessories
OPS Kit (KT-OPSF), Wall Mount (LSW640A/B), Touch Overlay(KT-T75E)
UPC
719192 62394 1
Basic Accessories (included)
Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
N/A
Energy Star (Environmental)
Yes
Smart Features
Screen Share
Yes
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
75"
Panel Technology
IPS
Backlight Type
Not Available
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120 Hz
Brightness (Typ.)
500 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1200:1
Dynamic Contrast Ratio
Not Available
Color Gamut
Not Available
Color Depth (Number of Colors)
Not Available
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
6 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
No
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
Test legal footnote for env
¹ This feature may have a restriction depending on the TV models.
