55'' Transparent OLED with Expandable Design
$17,333.00
55EW5P-M
55'' Transparent OLED with Expandable Design
$17,333.00
Key Features
All Specs
- 55" 1,920 × 1,080 (FHD) OLED
- 43% Transparency
- Expandable design to create transparent video walls
- Features webOS 7.5 & is compatible with LG SuperSign software
- Operates 18 / 7 (Moving Content Only) & lifetime up to 30,000 hours
Select Quantity
Max 5 units when checking out as guest. To purchase more than 5 units, please sign in to your LG Business Account
Upgrade your business with LG. Sign up for discounts, higher purchase limits, and more.
Warranty Info
This product comes with standard manufacturer's warranty. Extended Care Plans are available. see here for details
Review your selections
Selection Total
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs
High Transparency
LG OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43% transparency.* It clearly displays objects behind the screen while overlaying additional information directly in front of them.
*Transparency Testing Conducted in 2022 by LG Display Using a Hazemeter.
*Transparency Testing Conducted in 2022 by LG Display Using a Hazemeter.

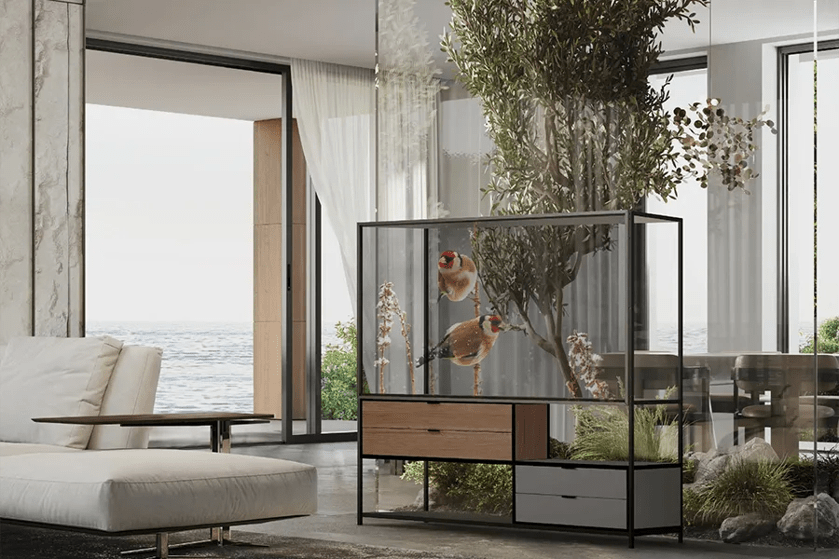

Sleek Elegance in Transparency
Connecting spaces and adding a sense of openness, this transparent display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location.

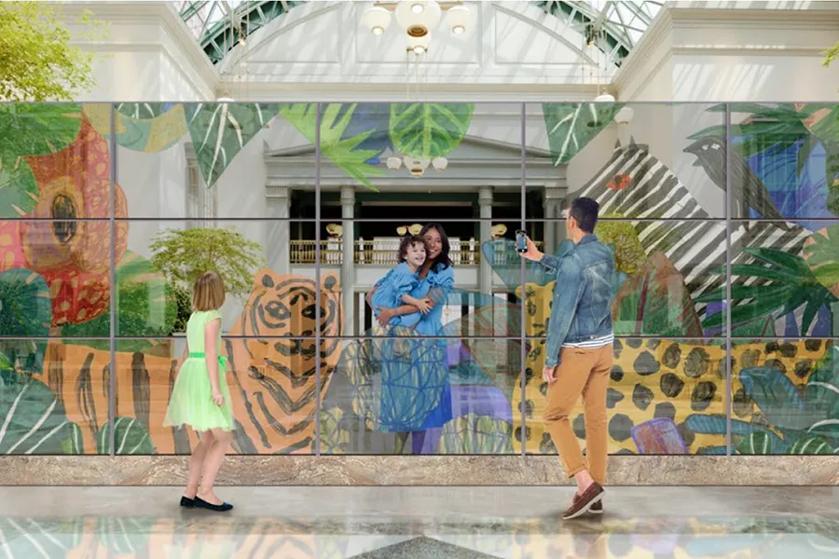

Expandable Design
Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics.
Convenience of Installation & Stability
This product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product’s rigidity. Additionally, M4 apertures, which are widely-used globally, are incorporated into all rear corners to facilitate installation.

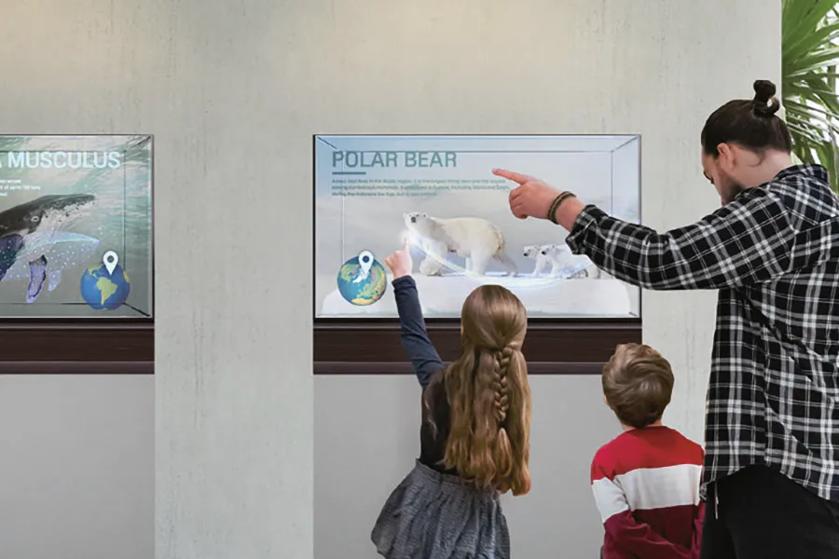

High Transparency
LG Transparent OLED signage seamlessly and naturally blends into it surroundings thanks to its high transparency. These see-through digital displays turn static signage areas into open and interactive spaces.

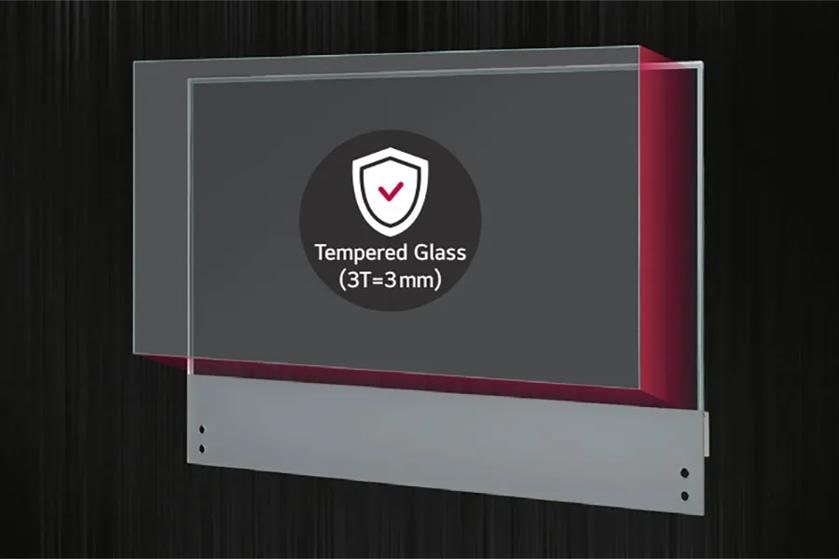

Protective Tempered Glass
Touching a display directly can cause damage or scratches. This transparent OLED display has a tempered front glass that protects the display from external impacts.

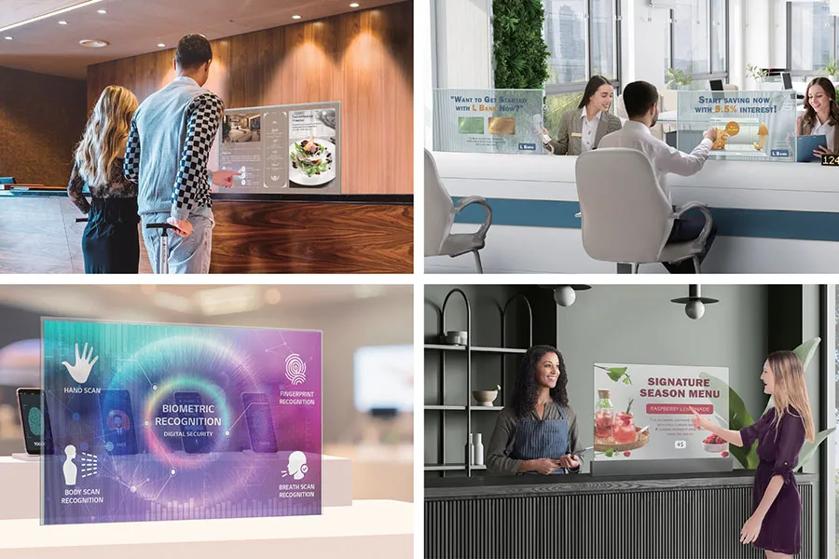

Enhanced Spatial Versatility
Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
Yes
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
No
Network Ready
No
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
No
Video Tag
Yes (x4)
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
No
Tile Mode Setting
Yes
External Input Rotation
Yes
No Signal Image
No
SNMP
No
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
No
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
230W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
PoE Type
No
PoE Power Class
No
Power Consumption (Display Power Management - DPM)
0.5W
BTU Heat Generation (Max.)
785 BTU
BTU Heat Generation (Typ.)
239 BTU
Power Consumption (Typ.)
70W
Mechanical
Bezel Color
Transparent
Bezel Width
T/R/L/B: 12.2 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
31.1 lbs / 14.1 kg
Weight Signage Box
5.7 lbs / 2.6 kg
Shipping Weight
66.1 lbs / 30.0 kg
Dimensions (W x H x D)
48.7 x 28.3 x 3.4 in / 1,237.6 × 717.9 × 86.5 mm
Dimensions Signage Box (W x H x D)
15 x 8.6 x 2.9 in / 381.6 × 217.6 × 73.6 mm
Shipping Dimensions (W x H x D)
53.9 x 9.6 x 37.7 in / 1,368 × 245 × 957 mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
No
Overlay Touch Compatibility
Not Available
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
3.0 mm
Degree of Protection
Not Available
Tempered / Chemical Strengthening
Chemical Strengthening
Anti-Reflective
Yes
Anti-Reflective Coating
No
Anti-Reflective Film
Yes
Infrared - Resistance (IR)
No
Shatter-Proof
Yes
Heat Dissipation
No
Heater
No
Noise Level
Not Available
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
No
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
No
Beacon
No
Play Via URL
No
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 7.5
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Connectivity
HDMI In
Yes (x1) HDCP 2.2/1.4
IR In (3.5 mm)
Yes (x1), External IR Receiver
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
Yes (x1) HDCP 1.3
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
Yes (x1)
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
Sharing RS-232C Out
RJ45 (LAN) Out
Yes (x1)
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
Yes
Built-in Wi-Fi
No
Warranty & Other
Assembled In
Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Turkish
UPC
1 95174 09166 1
Basic Accessories (included)
Remote Control, Power Cord, QSG, IR Receiver, Regulation Book, 3.5mm to RS-232C Adapter, MCX / Harness Cables (x4, 3m / x2, 3m for Connection between Panel and Signage Box), DP Cable (2m), LAN Cable (1.5m), RS-232 Cable (4P-4P, 1.5m), LC Cable (VLC, 3m), Screws (x24, M3 × L5.5 Black / x8, M3 × L5.5 Silver / x14, M3 × L6 Black), Cover Shield Assembly, Cable Accessory (x2), Cable Cap Assembly (x2), Tiling Bracket (x2), Signage Box Wing Bracket (x2)
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
Not Available
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
Carbon Trust
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
No
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
Yes
Mobile CMS
Yes
ConnectedCare™
No
Panel
Screen Size (Inches)
55"
Panel Technology
OLED
Backlight Type
OLED
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
120 Hz
Brightness (Typ.)
200 nits
Brightness (Max.)
600 nits
Contrast Ratio
200000:1
Dynamic Contrast Ratio
No
Color Gamut
DCI 90%, BT709 110%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
0.1 ms
Moving Picture Response Time
8 ms
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
5H
Reflectance (Typ.)
No
Operation Hours (Hours per Day / Days per Week)
18/7
Lifetime
Up to 30,000 hrs.
Orientation
Portrait / Landscape
Transparency
43% (Set)
QWP (Quarter Wave Plate)
No
¹ This feature may have a restriction depending on the TV models.
