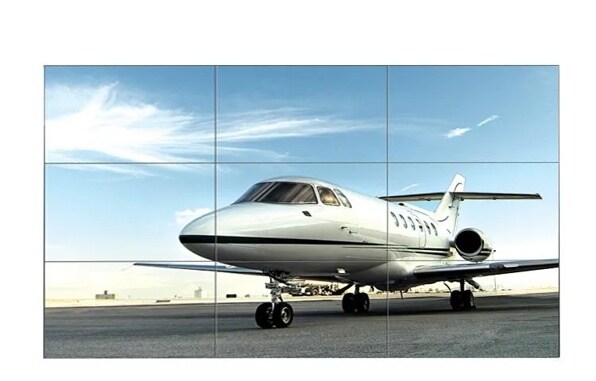

55" class (54.64” diagonal) Super-Narrow 3.5mm Bezel Premium Display
DISCONTINUED
55LV77A-7B
55" class (54.64” diagonal) Super-Narrow 3.5mm Bezel Premium Display
Key Features
All Specs
- Super Narrow Bezel
- Evolved Daisy-Chain Performance
- FREE SuperSign C Software for Advanced Color Adjustment and Remote Monitor & Control
- 700 nit Display - 24/7 Operation
Compare
Specs & Resources
CERTIFICATIONS
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "B" / CE / KCC
ENVIRONMENTAL CONDITIONS
Operation Temperature
0 °C to 40 °C
Operation Humidity
10%~80%
SOFTWARE COMPATIBILITY
SuperSign-C
Yes (SuperSign C software is available at http://www.lg.com/us/commercial/video-walls)
SIGNAL(OUTPUT)
External Control
RS232C (1)
Digital
Display Port (1)
Audio
Audio Out(1)
SPECIAL FEATURES
Temperature Sensor
Yes
Brightness/Contrast /Backlight
Yes
Time
Clock, On/off Time, Sleep Timer, Power on Delay, Auto off, Automatic standby
PIP/PBP
Yes
DPM Select
Yes
Advanced
Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
Tile Mode
Yes, Up to 15 x 15 (Natural mode)
Information
Model/Type, S/W Version, Serial Number, IP Address, Mac address, Homepage
Input Label
Yes
Auto Power/Source Memory
Yes
ISM Method
Normal, Orbiter, Inversion, White wash
File Play with USB
Yes
Smart Energy Saving
Yes
Source Selection
RGB / DVI-D / HDMI / Component / AV / Display Port / USB
Position/Size
Yes
Energy Saving
Yes, Off / Minimum / Medium / Maximum / Screen Off
Auto Config/Phase
Yes
SIGNAL(INPUT)
USB
USB (1)
Digital
DVI-D (1), HDMI (1), Display Port (1) with HDCP for all input
External Control
RS232C (1), RJ45 (1), IR Receiver (1)
Analog
RGB (1), Shared Component (1), AV (1)
Audio
PC Audio In (1)
CABINET
Color
Black
Weight (Monitor)
51.1 Ibs
Weight (Packed)
67.2 Ibs
Bezel Width
2.25mm (left/top) / 1.25mm(right/bottom)
VESA™ Standard Mount Interface
600mm x 400mm
Dimensions (Carton) (W x H x D)
53.3” x 33.5” x 10.0”
Handle
Yes
WARRANTY
Limited Warranty
3-Year Limited Warranty (Parts/Labor/Backlight)
MEDIA PLAYER COMPATIBILITY
External Media Player Attachable
Yes
UPC
UPC
7 19192 19517 2
VIDEO(PC)
H-Scanning Frequency
30 ~ 83 kHz (RGB, HDMI, DVI-D, Display Port)
Sync Compatability
Separate / Composite / Digital
Picture Mode
Vivid, Standard, Cinema, Sports, Game
Recommended Resolution
1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
Color Temperature
Warm, Medium, Cool
Pixel Frequency
148.5MHz (RGB, HDMI, DVI-D, Display Port)
Video Input
RGB, HDMI, DVI-D, Display Port, AV, Component
Max Input Resolution
1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
V-Scanning Frequency
56Hz ~ 75Hz (RGB), 56Hz ~ 60Hz (HDMI, DVI-D, Display Port)
POWER
Power Type
Built-in Power
Power Consumption-Power Save/Sleep Mode (Max)
120W
Power Supply
100–240V~, 50/60Hz
Power Consumption-DPM
0.7W
Power Consumption-Power Off
0.5W
Power Consumption (Typ)
230W
PANEL
Surface Treatment
Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)
Viewing Angle(H x V)
178° x 178°
Aspect Ratio
Sun Dec 31 16:09:00 KST 1899
Panel Size
55” Class (54.64” diagonal)
Brightness
700 cd/m2
Native Resolution
1920 x 1080 (FHD)
Color Gamut
72%
Panel Type
IPS
Dynamic CR
500,000:1
Orientation
Portrait & Landscape
Color Depth
1.06 Billion
Pixels(H x V x 3)
6220800
Contrast Ratio
1,400:1
Response Time
12ms (G to G)
ACCESSORIES
Accessories
Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable,Tiling Guide, Screw
