55" IPS 4K Surgical Monitor with HDR 10, DCI-P3 86%, 12G-SDI Support, Mirror & Rotation Mode, & 4PBP | PIP
55MH5K
55" IPS 4K Surgical Monitor with HDR 10, DCI-P3 86%, 12G-SDI Support, Mirror & Rotation Mode, & 4PBP | PIP
Key Features
All Specs
- 55" IPS 4K (3,840 x 2,160) Resolution & 16:9 Aspect Ratio
- 178° Wide Viewing Angle
- 12G-SDI Support
- HDR 10 & DCI-P3 86% (CIE 1976) Deliver Crisp, Clear Images
- Mirror & Rotation Mode, Failover Input Switch & PBP (2/3/4PBP) / PIP
- IP45 (Front), IP32 (Except for Front), IK06
Compare
Features and Specs

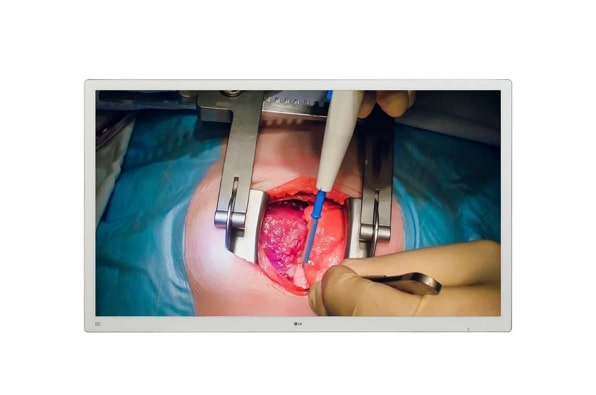

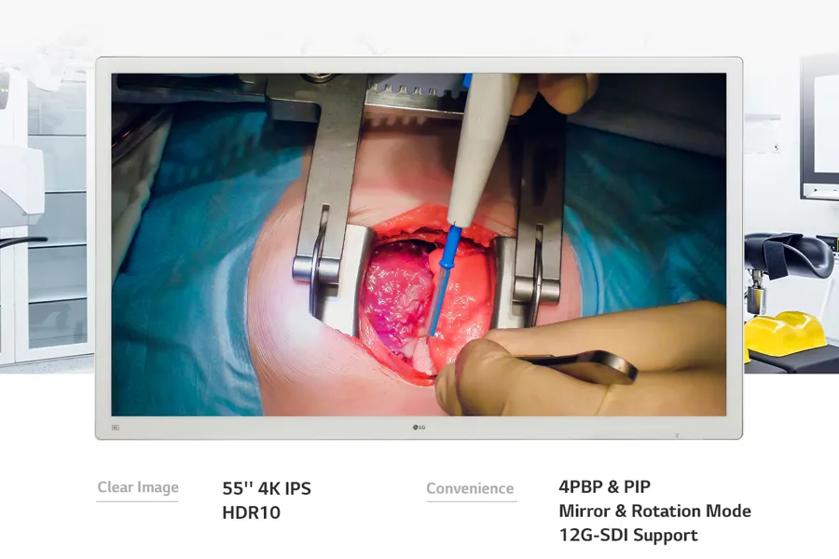

4K Large Display for Surgery
Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
HDR10
This 4K surgical monitor features HDR10, properly displaying HDR images clearly.
Mirror & Rotation Mode
Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.

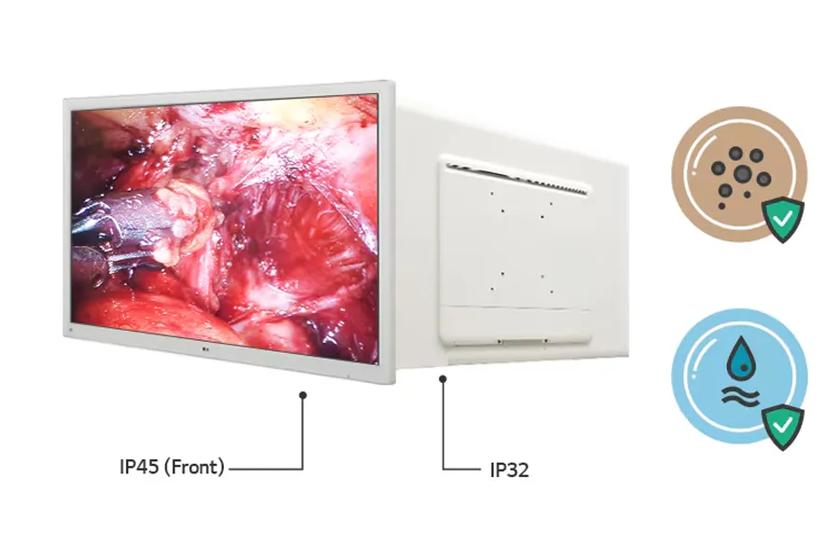

IP 45 & IP 32
With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water. ¹ ²

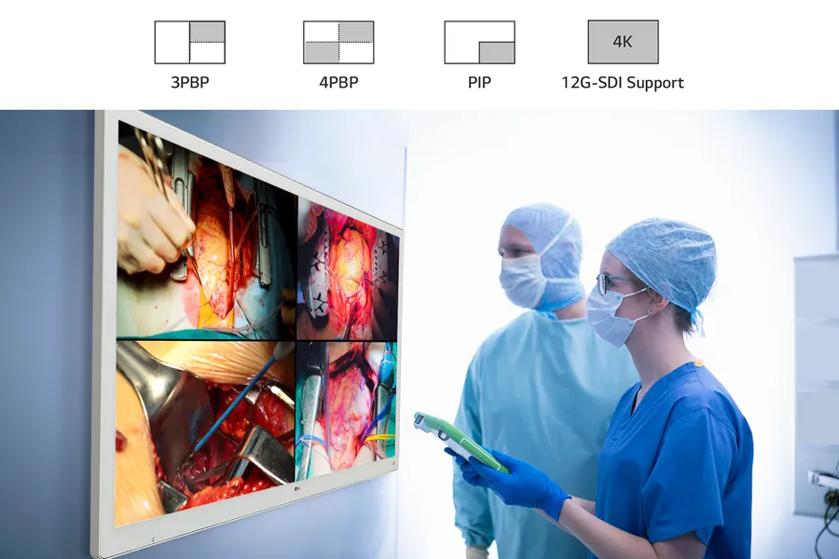

Multiple Signals on One Screen
Supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
12G-SDI Support
12G-SDI Support enables long-distance transmission of 4K signals over a single coaxial cable without latency. (12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Features
Screen Flip
Mirror Mode & Rotation Mode
Quick Charge
No
DDC/CI
No
Original Ratio
No
Brightness (DICOM Calibrated)
Not Available
Focus View Mode
No
Uniformity Compensation
No
Light Box Mode
No
Key Lock
No
Calibration Software
LG Calibration Studio
DICOM Mode
No
DPM
No
Failover Input Switch
Yes
User Preset Quick Setting
No
4 Screen Split
No
Color Temperature
No
Uniformity
No
Super Resolution+
No
HW Calibration
Yes
Automatic Standby
No
Brightness Stabilization
No
DynaMic Sync Mode (Thru Mode)
No
Pathology Mode
No
Six Axis Control
No
HDCP
No
DICOM Calibrated
No
Factory Calibration
No
DICOM Compliant
Yes
Brightness Uniformity Correction
No
BLS (ALS)
No
Color Calibrated
No
Multi-resolution Mode
No
Gamma
No
Picture Mode
No
Software Features
Picture-by-Picture (PBP)
Yes (2PBP / 3PBP / 4PBP)
Picture-in-Picture (PIP)
Yes
Smart Energy Saving
No
Flicker Safe
No
Reader Mode
No
Black Stabilizer®
No
Text Mode
No
USB Plug & Play
No
Connectivity
HDMI In
Yes (x1) v2.0 HDCP 2.2
HDMI (Max. Resolution at Hz)
3,840 x 2,160 at 60 Hz
HDMI (w/o VRR)
56~61 Hz
DVI In
Yes (x1)
DVI (V Frequency)
56~61 Hz
DVI (Max Resolution at Hz)
1,920 x 1,080 at 60 Hz
DisplayPort In
Yes (x1) HDCP 2.2
DisplayPort (w/o VRR)
56~61 Hz
DisplayPort (Max. Resolution at Hz)
3,840 x 2,160 at 60 Hz
RS-232C In (D-sub 9-pin)
Yes (x1)
USB Type-A (Downstream)
Yes (x1) USB 3.0
USB Type-B (Upstream)
Yes (x1) USB 3.0
S-Video
No
3G-SDI In
No
12G-SDI In (3.5 mm)
Yes (x1)
AC In
Yes (x1)
DC In (4 pin)
No
DisplayPort Out
Yes (x1)
Audio Output Jack Location
No
DVI Out
Yes (x1)
3G-SDI Out
No
12G-SDI Out (3.5 mm)
Yes (x1)
Headphone Out (3.5 mm)
No
Digital Scanning Frequency (H/V)
Not Available
Daisy Chain
No
Signal Input Jack Location
Not Available
Control Key
Key Type
Not Available
LED Color (On Mode)
Not Available
LED Color (Power save mode)
Not Available
Key Location
Not Available
Key Number (Power Key Included)
Not Available
Warranty & Other
Assembled In
China
Warranty
3 Year Limited
OSD Language
17 Language
Accessories Included
Calibration Report, DP cord, HDMI Cord, Power Cord
UPC
1 95174 05385 0
Regulatory & Certifications
Impact Protection
IK06
ICES-003
No
Windows 10
No
EN (EN 60950-1/EN55032, 55024)
Yes
MFDS (KR)
No
CE MDD (EU)
No
CE (Regulatory)
No
IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035)
No
ANSI/AAMI ES 60601-1
No
FCC (US)
FCC Part 15 Class A
CMDR (Canada)
No
RoHS (Environmental)
Yes
GMP
No
IP Rating (Solid / Liquid Ingress) (Front)
IP45
TGA / RCM (Australia)
No
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
TAA Compliance
No
CE (MDD 93/42/EEC, 2007/47/EC)
No
CISPR (Global)
No
REACH (Environmental)
Yes
CSA (CAN/CSA-C22.2 NO. 60601-1)
Yes
WEEE
Yes
FDA (US)
FDA (Registration (Class I))
RCM (Australia)
No
IEC (IEC 60950-1/IEC 55032, 55024)
Yes
CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90)
No
KGMP
No
ISO13485
No
IP Rating (Solid / Liquid Ingress) (Rear)
IP32
UL/cUL Certification
ANSI/AAMI ES 60601-1
Electrical
Power Consumption (Max.)
180W
Power Consumption (Power Off)
Less than 0.3W
Power Type
Built-in Power
Power Consumption (Sleep Mode)
Not Available
Power Consumption (On Mode)
Not Available
AC Input
100-240 Vac, 50/60 Hz
DC Output
PSU output (20.5V , 9A)
Mechanical
Color
White
Adjustable Stand
N/A
Base Detachable
N/A
One Click Stand Set-up
N/A
Stand Height Range
N/A
Tilt (Angle)
N/A
Swivel (Angle)
N/A
Pivot
N/A
Weight
76.7 lbs / 34.8 kg
Weight with Stand
N/A
Shipping Weight
93.5 lbs / 42.3 kg
Dimensions (W x H x D)
50.5 x 30.3 x 2.7 in / 1,283.4 x 768.5 x 68.3 mm
Dimension with Stand (W x H x D)
N/A
Shipping Dimensions (W x H x D)
58.7 x 34.6 x 6.8 in / 1,490 x 880 x 172 mm
VESA™ Wall Mount
200 x 200 mm, 300 x 300 mm
LG Software Compatible
On Screen Control
Not Available
Dual Controller
Not Available
Panel
Screen Size (Inches)
55"
Diagonal (Inches)
N/A
Panel Type
IPS
Backlight Type
Edge
Aspect Ratio
16:09
Resolution
3840 x 2160 (4K UHD)
Pixel Pitch
0.315mm x 0.315mm
Brightness (Typ.)
680 cd/m²
Contrast Ratio
1100:1
Color Gamut
DCI-P3 86% (CIE 1976)
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G) (Faster-setting)
5 ms
Response Time (G to G) (Off-setting)
9 ms
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
HDR
HDR 10
HDR Effect
No
Protective Glass
Thickness
3.1T
Anti-Reflective
Yes
Anti-Fingerprint
Yes
User Convenience
Auto Luminance Sensor
No
Presence Sensor
No
Hot Key
No
Lighting
No
undefined
