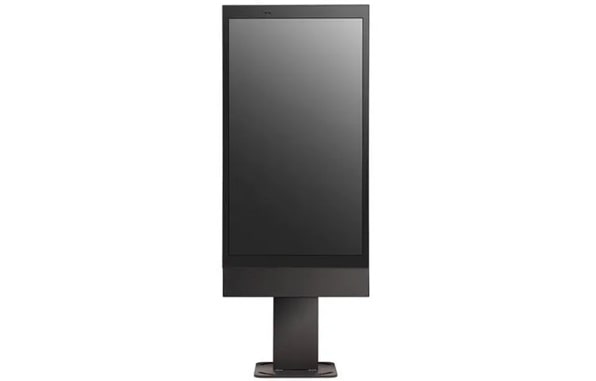

55” (54.64” Diagonal) Outdoor Commercial Signage
DISCONTINUED
55XE3C-B
55” (54.64” Diagonal) Outdoor Commercial Signage
Key Features
All Specs
- Dust & Humidity Protection Designed with IP56
- High Operating Temperature
- Enhanced Thermal Management
- 7.5 mm Protective Glass
Compare
Specs & Resources
CONNECTIVITY
Input
HDMI, DP, DVI-D, Audio
Output
DP, External Speaker out
External Control
RS232C, RJ45, USB 3.0, SD Card
ENVIRONMENTAL CONDITIONS
Operation Temperature
-30 °C to 50 °C
Direct Sunlight
Yes
Operation Humidity
5 % to 100 %
Dust / Water Proofing
IP 56
SOFTWARE COMPATIBILITY
SuperSign-C
Yes
SuperSign-Lite
Yes
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
No
External Media player Attachable
No
UPC
55XE3C
7 19192 60679 1
POWER
Power Consumption (Typ./Max)
Typ. 350 W / Max. 500 W
Power Type
Built-In Power
Power Supply
100 -240V, 50/60Hz
SPECIAL FEATURES
Yes
Temperature Sensor, Auto Brigtness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM wake up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Fail over, Mirroring, SoftAP, BEACON, Embedded Template
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB
EMC
FCC Class "A" / CE / KCC
ErP / Energy Star
No / No
PANEL
Surface Treatment
Anti-reflection treatment of the front polarizer (Reflectance< 2.5%)
Panel Technology
IPS
Aspect Ratio
16 : 9
Brightness
3,000 cd/m2 through front protective glass (Typ)
Native Resolution
1,920 x 1,080 (FHD), M+
Lifetime
50,000 Hours
Local dimming
55" 160 Block
Viewing Angle (H x V)
178 x 178
Orientation
Portrait & Landscape
Contrast Ratio
1,000:1
Response Time
6 ms (G to G), 9 ms (G to G BW)
Screen Size
55" Class (54.64" measured diagonal)
QWP Polarizer (FPR Film)
Yes
ACCESSORIES
Accessories
Remote Controller, Manual, QSG, Regulation book, Phone to RS232C Gender, USB cable, HDMI cable
Optional
Media player (driven by customer), Enclosure Stand (ST-750X)
PHYSICAL SPECIFICATION
Bezel Width
66.4 mm (T/B), 31.0 mm (L/R)
Dimensions (w/Stand)(W x H x D)
745 x 542 x 420 mm
Front Glass
7.5 mm (AR, Front Safety Vandal Glass)
Dimensions (w/o Stand)(W x H x D)
745.3 x 1,345.4 x 160.0 mm
Dimensions (Carton) (W x H x D)
1,027 x 1,491 x 309 mm
Weight (Head + Stand)
100.5 kg
Weight (Head)
70 kg
Bezel Color
Medium Texture Black (Common color)
All image simulations are for illustration purposes only.
