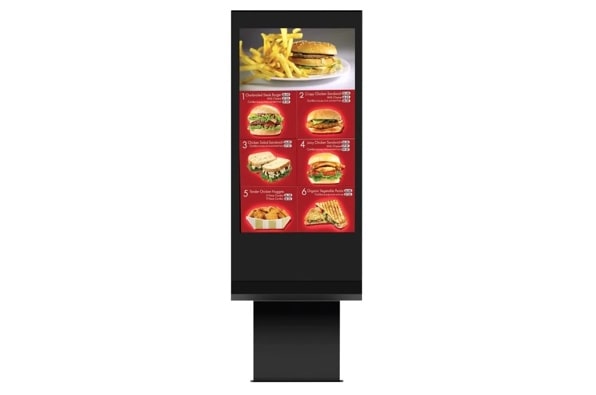

49” Class (48.50” Diagonal) Outdoor Commercial Signage
DISCONTINUED
49XEB3E
49” Class (48.50” Diagonal) Outdoor Commercial Signage
Key Features
All Specs
- High Brightness
- Visible with Polarized Sunglasses
- Smart Brightness Control
- Secured Protection with IP56 Design
- Conformal Coating
Compare
Specs & Resources
CONNECTIVITY
Input
HDMI, DP, DVI-D, Audio In, USB 3.0
Output
DP, External Speaker Out
External Control
RS232C In/out, RJ45 In
ENVIRONMENTAL CONDITIONS
Operation Humidity
5% to 100%
Dust / Water Proofing
IP56
Operating Temperature Range
-22°F to 122°F / -30°C to 50°C
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Link
Content Management Software
SuperSign CMS
POWER
Power Consumption (Typ./Max)
270 W / 400 W
Power Type
Built-in Power
Power Supply
100-240V~, 50/60Hz
Power Consumption (Smart Energy Saving)
145 W
SPECIAL FEATURES
Yes
Temperature Sensor, Auto Brightness Sensor, Pixel Sensor, Cooling FAN, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory 8GB (System 4GB + Available 4GB), USB Cloning, Easy Brightness Control, Wake on LAN, Fail Over, DP Daisy Chain, Control Manager
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB
EMC
FCC Class "A" / CE / KCC
PANEL
Surface Treatment
Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Haze 3% (Typ.)), QWP
Panel Technology
IPS
Aspect Ratio
16 : 9
Brightness
3,000 cd/m2 (Typ.), 2,400 cd/m2 (Min.)
Native Resolution
1,920 x 1,080 (FHD), M+ (WRGB)
Lifetime
50,000 Hrs
Viewing Angle (H x V)
178 x 178
Orientation
Portrait only
Response Time
8 ms (G to G BW, Typ.)
Screen Size
49” Class (48.50” Diagonal)
Operation Hours
24Hrs
QWP Polarizer (FPR Film)
Yes
ACCESSORIES
Basic
Remote Controller, Manual (EIG, ESG), Regulation Book, Phone to RS232C Gender, USB Cable, HDMI Cable
Optional
Enclosure Stand (ST-491X, ST-493X), Circuit Breaker & Surge Suppressor (KT-PS)
PHYSICAL SPECIFICATION
Bezel Width
103.0 mm (T), 262.0 mm (B), 46.5 mm (L/R)
Dimensions (w/Stand)(W x H x D)
745 x 1,980 x 321 mm / 29.3” x 78.0” x 12.6”
Front Glass
6.8 mm (AR, Tempered & Laminated Glass)
Dimensions (w/o Stand)(W x H x D)
701 x 1,445 x 180.9 mm / 27.6” x 56.9” x 7.1”
Weight (Packed)
73.4kg / 161.8lbs
Dimensions (Carton) (W x H x D)
863 x 1,624 x 333 mm / 34.0” x 63.9” x 13.1”
Weight (Head + Stand)
100kg / 220.4lbs
Weight (Head)
58.6kg / 129.1lbs
Bezel Color
Black
All image simulations are for illustration purposes only.
