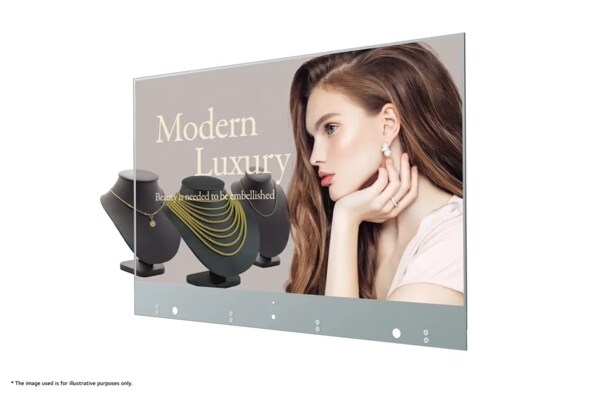

Transparent OLED Digital Signage
DISCONTINUED
55EW5F-A
Transparent OLED Digital Signage
Key Features
All Specs
- Brightness(Typ.): 400 cd/m²
- Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
- Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
- IEC 61373 Standard Certified
Compare
Specs & Resources
ACCESSORY
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Tapes, Screws, Shield Cover Assy', Rubber Dampers
CONNECTIVITY
Input
HDMI, DP, USB (2)
Output
DP, Audio
External Control
RS232C In/Out, RJ45 (LAN) In/Out, IR In
POWER CONSUMPTION
Typ.
309 W *8 color bar
Max.
318 W *8 color bar
CERTIFICATION
EMC
FCC Class "A" / CE / KC
Safety
CB / NRTL
ErP / Energy Star
Yes(EU Only) / No
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Control / Control+
Content Management Software
SuperSign CMS
MEDIA PLAYER COMPATIBILITY
OPS type compatible
No
ENVIRONMENT CONDITIONS
Operation Humidity
10% to 80%
Operation Temperature
0°C to 40°C
MECHANICAL SPECIFICATION
Bezel Width
7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)
Carton Dimensions (W × H × D)
1,329 x 898 x 191 mm
Monitor Dimension (W × H × D)
(Head) 1,225.53 x 810.1 x 6.6 mm(Signage Box) 782.8 x 238.4 x 34.7 mm
Packed Weight
22.4 kg
Weight
(Head) 13.9 kg, (Signage Box) 3.4 kg
POWER
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
PANEL
Native Resolution
1,920 x 1,080 (FHD)
Screen Size
55"
Brightness (APL100%, Typ., cd/m²)
150
Brightness (APL25%, Typ., cd/m²)
400
All image simulations are for illustration purposes only.
