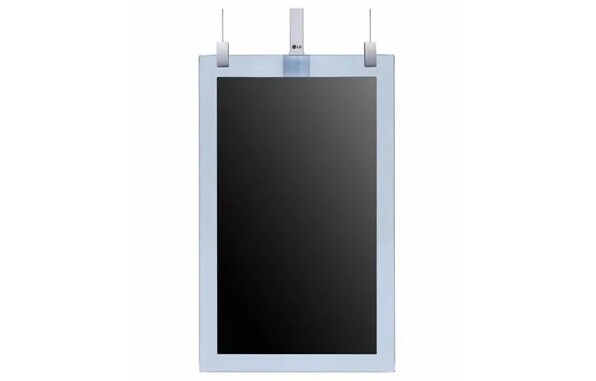

In-Glass OLED Wallpaper

(Head) 31.2 kg (T-Con Box) 1.6 kg (Signage Box) 4.3 kg

Black

(Head) 861.3x 1,406.2 x 13 mm (w/o Hanging Acc.) (T-Con Box) 312.2 x 213.4 x 16 mm (Signage Box) 412.6 x 222.4 x 64.3 mm

(Off-bezel, with Glass) 101.3 / 81.3 / 81.3 / 81.3 mm (U/B/L/R) (On-bezel, with Glass) 107.9 / 87.9 / 88.5 / 91.6 mm (U/B/L/R) (On-bezel, w/o Glass, Only Panel) 6.6 / 6.6 / 7.2 / 10.3 mm (U/B/L/R)

1,880 x 1,015 x 363 mm

71.4 kg (Glass Module 1ea, T-Con Box 2ea, Signage Box 2ea)

HDMI (1+1), DP (1+1)

DP (1+1), Audio, IR out (w/RS232C OUT Port Share)

RS232C in/out (1+1), RJ45 in/out (1+1), IR receiver (1+1), USB 3.0 (1+1)

10 % to 80 %

0°C to 40°C

Yes

Yes

Yes

Yes

Built-in Power

190 W

Less than 0.5 W

100–240V~, 50/60Hz

3 W under

Temperature sensor, Cooling FAN, ISM method, DPM select, DPM wake up, Energy saving, Motion eye care, File play with USB, Internal memory (64 GB), USB cloning, Calibration mode, PM mode, Fail over, DP daisy chain

Yes / NA

UL / cUL / CB / TUV / KC

FCC Class "A" / CE / KCC

OLED

16 : 9

100/400 cd/m2 (APL 100 % / 25 %) * Average Picture Level

1,920 x 1,080 (FHD)

178 x 178

Portrait

1 ms (G to G), 8 ms (MPRT)

55" (54.64" measured diagonally)

18 hrs / 7 days (moving video only)

Remote controller (include battery 2ea), Power cord, QSG, HDMI cable (1m x 2ea for connection between T-Con box and signage box, 1.5m x 2ea), Power Hanness Cable (1m x 2ea for connection between T-Con box and signage box), IR receiver, Regulation book, Phone to RS232C gender, Jack cover, Signage box mounting bracket, T-Con box mounting bracket, FFC cable cover, Hanging Supporter front, Hanging supporter rear, Hanging supporter rear cover, FFC cable supporter assy, Ceiling bracket

OPS kit (KT-OPSA)
