Flexible Curvable Open Frame
DISCONTINUED
55EF5E-P
Flexible Curvable Open Frame
Key Features
All Specs
- Brightness(Typ.): 400cd/m² (Average Picture Level 25%)
- Depth: 12.4mm (Head Only)
- Supported Curvature: Up to 1,000R (Concave/Convex)
- Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Dimensions (Monitor) (W x H x D)
701.4 x 1,219.7 x 38.0 mm (Head, w/Pem-nut) 701.4 x 1,219.7 x 12.4 mm (Head Only)
Weight
Set: 9.9kg, Signage Box: 3.5kg
Bezel Width
0.6/0.6/6.7/6.7 mm (Flat, Off Bezel)
5.0/5.0/7.8/13.2 mm (Flat, On Bezel)
5.0/5.0/7.8/13.2 mm (Flat, On Bezel)
Dimensions (Carton) (W x H x D)
1,350 x 837 x 250 mm
Packed Weight
17kg
CONNECTIVITY
Input
HDMI, DP, USB 2.0 (2)
Output
DP, Audio (Fixed/Off/Variable)
External Control
RS232C In/out, RJ45 In/out, IR In
CERTIFICATIONS
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A"/CE/KCC
ErP
Yes
ENVIRONMENTAL CONDITIONS
Operation Humidity
10 % to 80 %
Operating Temperature Range
0°C to 40°C
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Control+/Control
Content Management Software
SuperSign CMS
MEDIA PLAYER COMPATIBILITY
External Media Player Attachable
Yes
POWER
Power Type
Built-in Power
Power Consumption (Typ/Max)
309W / 318W
Power Supply
100-240V~, 50/60Hz
PANEL
Brightness (Average Picture Level 25%, Typ., cd/m²)
400
Brightness (Average Picture Level 100%, Typ., cd/m²)
150
Resolution
1,920 x 1,080 (FHD)
Screen Size
55"
ACCESSORIES
Basic
Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
Optional
Curvature Calibrator (ACC-CC-EF5E)

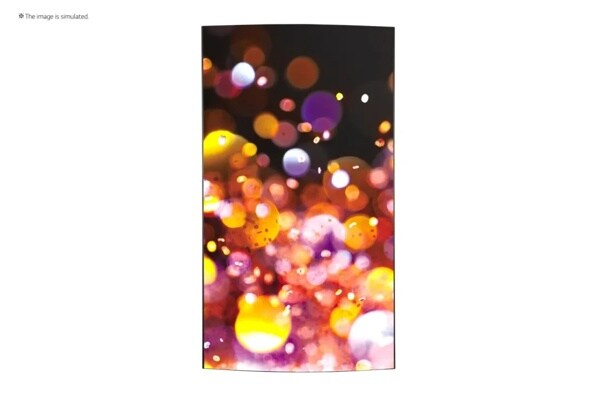

All image simulations are for illustration purposes only.
