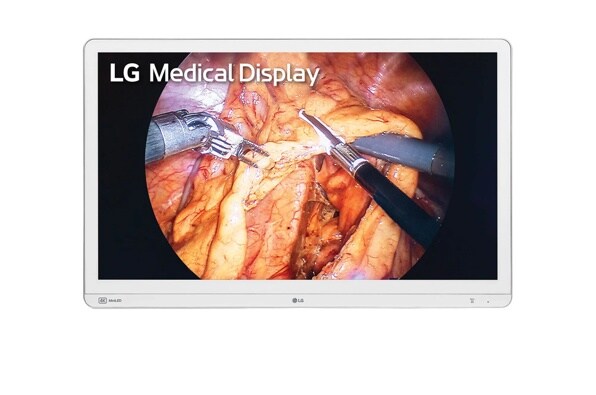

31.5" 4K Mini-LED Surgical Monitor

Local dimming, inherent to Mini-LED technology, enables brightness control across the entire LED backlight, enhancing visual contrast by darkening the dark areas and brightening the light areas. This monitor, equipped with 1.5K local dimming zones, significantly enhances the dynamic contrast ratio up to 1,000,000:1 and reaches a peak brightness up to 2,000 cd/m².

With a wide color range of DCI-P3 98%, the 32HR734S provides a great level of detail with optimized image clarity and enhanced color response.

The 32HR734S is engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without any air gaps, further enhanced with Anti-glare, Anti-reflection, and Anti-fingerprint coatings on the front glass. This combination significantly improves display readability by minimizing reflections and glare, ensuring that image clarity and color response are optimized even in brightly lit environments. The elimination of air gaps reduces light dispersion and loss, resulting in sharper and more vibrant images.

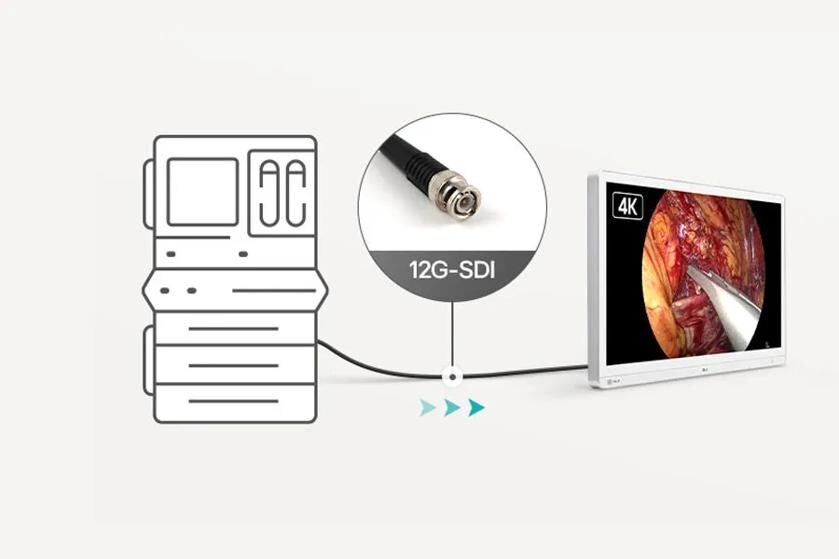

The 32HR734S supports 12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.

As the 32HR734S supports up to 4 PBP & PIP, medical professionals can monitor various critical information streams concurrently on a single screen, enhancing operational efficiency and decision-making. For example, medical staff can view a combination of laparoscopic and endoscopic images while monitoring vital signs.

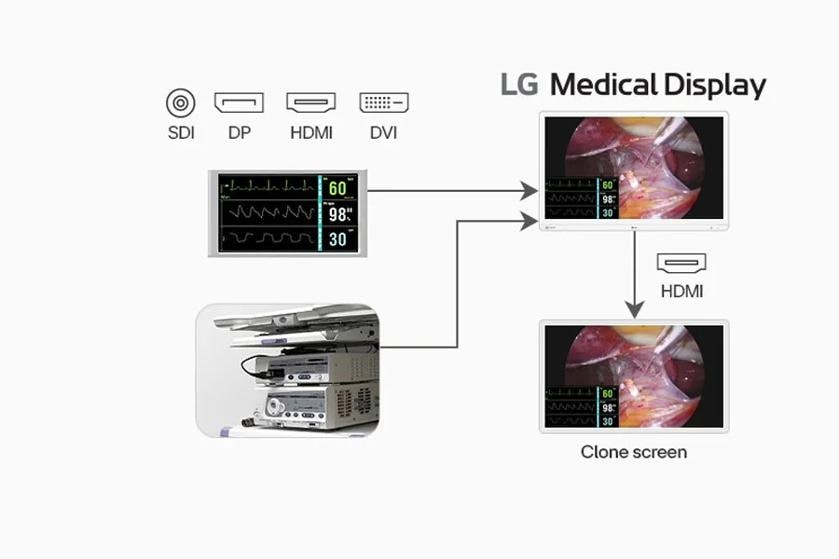

Using a Clone Screen feature that replicates the entire display content onto a secondary monitor through HDMI output, members of the surgical team can visually monitor the progress of surgery which can help facilitate efficient collaboration and communication.

Mirror mode and Rotation mode allow users to adjust the display for optimal viewing, whether flipping the image horizontally or rotating it 180 degrees to match the orientation of the surgical camera.

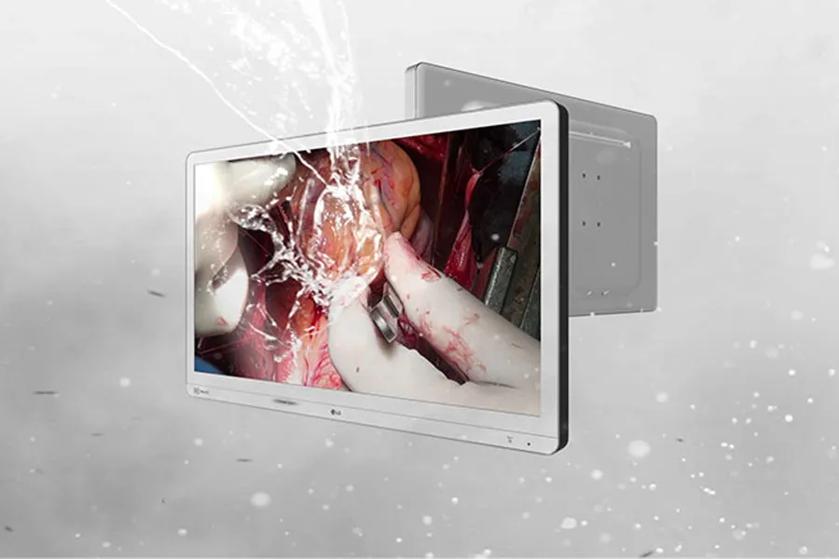

With IP45 (Front) and IP32 (Except for front) ratings, the 32HR734S is suitable for surgical environments where blood and other bodily fluids are likely to splash. Additionally, this monitor offers high resistance to physical impact, as denoted by its IK06 rating.

The anti-glare coating of optically bonded glass reduces screen glare and reflection, providing a clear display even in brightly lit operating rooms.

The anti-reflection coating of optically bonded glass minimizes the reflectance of visible light wavelengths, providing clear images.

The anti-fingerprint coating of optically bonded glass reduces contamination from fingerprints and smudges, contributing to a clear view of the surgical area.
