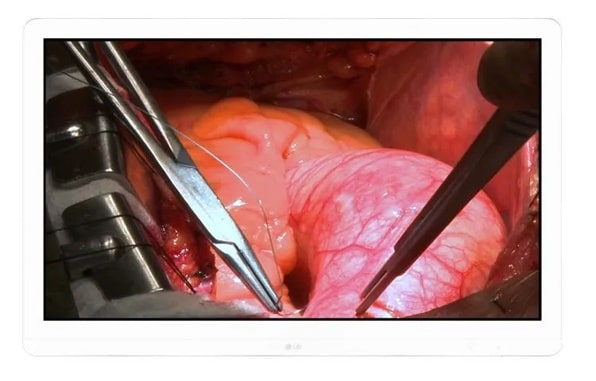

FDA Class II 8MP Surgical Monitor

Name: FDA Class II 8MP Surgical Monitor
Brand: LG Electronics
SKU: 27HJ713S-W
Availability: Discontinued

DISCONTINUED

27HJ713S-W

FDA Class II 8MP Surgical Monitor

Key Features

All Specs

FDA Class 2
IPS & 115% OF SRGB ENHANCING DEEP RED
DICOM PART 14 & BRIGHTNESS STABILIZATION
DYNAMIC SYNC MODE*
ANTI-REFLECTION & OPTICAL BONDING GLASS
DUSTPROOF & WATERPROOF

Compare

Specs & Resources

Collapse All

OSD

Number of Language

Country

Worldwide

SPECIAL FEATURES

HDCP

Yes

Key Lock

Yes

Six Axis Control

Yes

Original Ratio

Yes

Flicker Safe

Yes

PBP

Yes

Color Temperature

6500K / 8500K / 9300K, Manual (5000K ~ 10000K)

Uniformity Compensation

Yes

DDC/CI

Yes

PIP

Yes

Color Calibrated

Yes

DPM

Yes

Smart Energy Saving

Yes (Conserve energy by using luminance compensation algorithm)

Plug & Play

Yes

H/W Calibration

Yes (Calibration 1-2 Mode)

User Preset

Yes

Factory Calibration

Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)

Mechanical Switch

Yes

Brightness Stabilization

Yes

Super Resolution+

Yes

DICOM Mode

Yes (Kδ <= 10%)

Response Time Control

Yes

Picture Mode

Yes

Gamma

Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve

Dynamic Sync Mode (Thru Mode)

Yes

RS232

Yes

CONTROL KEY

Key Type

Dome Tact

LED Color (On mode)

Green

Key LED Color

White (5/10/20sec,Always)

Key Number (Power Key Included)

Key Location

Front

RESOLUTION

DisplayPort

3840x2160

HDMI

3840x2160

DVI-D

1920 x 1080

SDI

1920 x 1080

OTHER

Warranty

3-Year Limited Warranty (Parts/Labor/Backlight)

UPC

7 19192 61761 2

SIGNAL OUTPUT

DVI-D

DisplayPort

x1 (1.2)

Jack Location

Rear

SDI

x1 (3G-SDI)

PANEL

Viewing Angle (CR≥10)

178/178

Color Depth (Number of Colors)

10bit color (1.07B)

(DFC)

Mega

Aspect Ratio

16:9

Pixel Pitch (mm)

0.1554mm x 0.1554mm

Size

27" Class (27.0" Diagonal)

Resolution

3840x2160

Color Gamut (CIE 1931)

sRGB 115% + Deep Red

Response Time (on/off)

14ms (Typ)

Brightness (Typ.)

800 cd/m2

(GTG)

5ms (High)

Surface Treatment

With Optical Bonding Glass (1.3T, 8H, Anti-Reflection,Anti-Finger)

Contrast Ratio (typical)

1000:1

Panel Type

IPS

COLOR

Back Cover

White

Front

White

Others

White (Deco, Door, etc)

FREQUENCY

V-Frequency (DVI-D)

56~61Hz

H-Frequency (DVI-D)

30 ~ 83kHz

H-Frequency (HDMI)

30 ~ 135kHz

V-Frequency (DisplayPort)

56~61Hz

H-Frequency (DisplayPort)

30~135kHz

V-Frequency (HDMI)

56 ~ 61Hz

STANDARD

IEC

IEC60601-1 / IEC60601-1-2

CB / C-UL-US / CE / KC / RoHS / REACH / WEEE /

Yes

FDA (US)

FDA Class I & Class II

DisplayPort

Yes

EN60601-1 / EN60601-1-2

Ingress Protection (Dust/Water Resistant)

IP35(Front) / IP32(Other)

UL / ANSI / AAMI

UL60601-1

Impact Protection

IK06

FCC

FCC part 15 Class A

CISPR

IEC / EN

CE MDD

CE (MDD) Class I

Others

IP35(front)/IP25(back), DICOM part 14

POWER

Input

100-240Vac, 50/60Hz

Type

Adapter

DC Off(Max)

0.3W

Output

19V, 6.32A (120W)

Normal On (Max)

120W

CABINET

Weight (Box)

24.5 lbs

Weight (Without Stand)

17 lbs

Box

29.3“ x 19.5” x 6”

VESA® Wall Mount

200 x 100 / 100 x 100

Monitor (without Stand)

25.8” x 2.3” x 16.2”

ACCESSORIES

Factory Calibration Report

Yes

Power Cord

Yes

CD-ROM

Yes

HDMI

Yes

Display Port (1.2)

Yes

Others

Yes

Manual

Yes

SIGNAL INPUT

HDMI

x1 (2.0)

Jack Location

Rear

DisplayPort

x1 (1.2)

USB

USB 1up/1down (for HW calibration)

SDI

x1 (3G-SDI)

Others

RS-232C

DVI-D

OSD

Number of Language

Country

Worldwide

SPECIAL FEATURES

HDCP

Yes

Key Lock

Yes

Six Axis Control

Yes

Original Ratio

Yes

Flicker Safe

Yes

PBP

Yes

Color Temperature

6500K / 8500K / 9300K, Manual (5000K ~ 10000K)

Uniformity Compensation

Yes

DDC/CI

Yes

PIP

Yes

Color Calibrated

Yes

DPM

Yes

Smart Energy Saving

Yes (Conserve energy by using luminance compensation algorithm)

Plug & Play

Yes

H/W Calibration

Yes (Calibration 1-2 Mode)

User Preset

Yes

Factory Calibration

Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)

Mechanical Switch

Yes

Brightness Stabilization

Yes

Super Resolution+

Yes

DICOM Mode

Yes (Kδ <= 10%)

Response Time Control

Yes

Picture Mode

Yes

Gamma

Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve

Dynamic Sync Mode (Thru Mode)

Yes

RS232

Yes

CONTROL KEY

Key Type

Dome Tact

LED Color (On mode)

Green

Key LED Color

White (5/10/20sec,Always)

Key Number (Power Key Included)

Key Location

Front

RESOLUTION

DisplayPort

3840x2160

HDMI

3840x2160

DVI-D

1920 x 1080

SDI

1920 x 1080

OTHER

Warranty

3-Year Limited Warranty (Parts/Labor/Backlight)

UPC

7 19192 61761 2

SIGNAL OUTPUT

DVI-D

DisplayPort

x1 (1.2)

Jack Location

Rear

SDI

x1 (3G-SDI)

PANEL

Viewing Angle (CR≥10)

178/178

Color Depth (Number of Colors)

10bit color (1.07B)

(DFC)

Mega

Aspect Ratio

16:9

Pixel Pitch (mm)

0.1554mm x 0.1554mm

Size

27" Class (27.0" Diagonal)

Resolution

3840x2160

Color Gamut (CIE 1931)

sRGB 115% + Deep Red

Response Time (on/off)

14ms (Typ)

Brightness (Typ.)

800 cd/m2

(GTG)

5ms (High)

Surface Treatment

With Optical Bonding Glass (1.3T, 8H, Anti-Reflection,Anti-Finger)

Contrast Ratio (typical)

1000:1

Panel Type

IPS

COLOR

Back Cover

White

Front

White

Others

White (Deco, Door, etc)

FREQUENCY

V-Frequency (DVI-D)

56~61Hz

H-Frequency (DVI-D)

30 ~ 83kHz

H-Frequency (HDMI)

30 ~ 135kHz

V-Frequency (DisplayPort)

56~61Hz

H-Frequency (DisplayPort)

30~135kHz

V-Frequency (HDMI)

56 ~ 61Hz

STANDARD

IEC

IEC60601-1 / IEC60601-1-2

CB / C-UL-US / CE / KC / RoHS / REACH / WEEE /

Yes

FDA (US)

FDA Class I & Class II

DisplayPort

Yes

EN60601-1 / EN60601-1-2

Ingress Protection (Dust/Water Resistant)

IP35(Front) / IP32(Other)

UL / ANSI / AAMI

UL60601-1

Impact Protection

IK06

FCC

FCC part 15 Class A

CISPR

IEC / EN

CE MDD

CE (MDD) Class I

Others

IP35(front)/IP25(back), DICOM part 14

POWER

Input

100-240Vac, 50/60Hz

Type

Adapter

DC Off(Max)

0.3W

Output

19V, 6.32A (120W)

Normal On (Max)

120W

CABINET

Weight (Box)

24.5 lbs

Weight (Without Stand)

17 lbs

Box

29.3“ x 19.5” x 6”

VESA® Wall Mount

200 x 100 / 100 x 100

Monitor (without Stand)

25.8” x 2.3” x 16.2”

ACCESSORIES

Factory Calibration Report

Yes

Power Cord

Yes

CD-ROM

Yes

HDMI

Yes

Display Port (1.2)

Yes

Others

Yes

Manual

Yes

SIGNAL INPUT

HDMI

x1 (2.0)

Jack Location

Rear

DisplayPort

x1 (1.2)

USB

USB 1up/1down (for HW calibration)

SDI

x1 (3G-SDI)

Others

RS-232C

DVI-D
