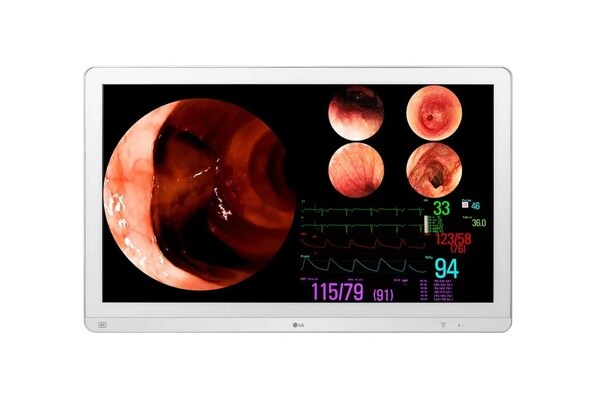

32” (3840x2160) LCD IPS 4K Surgical Monitor supports up to 4PBP, PIP and HDR10, Dustproof, Water-resistant
DISCONTINUED
32HL710S-W
32” (3840x2160) LCD IPS 4K Surgical Monitor supports up to 4PBP, PIP and HDR10, Dustproof, Water-resistant
Key Features
All Specs
- 31.5” 4K (3840x2160) IPS LCD
- Supports HDR10
- Mirror & Rotate Mode
- Up to 4PBP, PIP
- Dustproof, Water-Resistant
- Protection Glass
Compare
Specs & Resources
SW APPLICATION
True Color Pro
Yes
STANDARD
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
EN (EN 60601-1 / EN 60601-1-2)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
FCC (FCC part 15 Class A)
Yes
FDA
Registration (Class I)
CE (MDD 93/42/EEC, 2007/47/EC)
Yes
ISO13485
Yes
GMP
Yes
KGMP
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
IP(front/except for front)
IP35/IP32
Vandal-proof
IK06
POWER
Power Consumption (DC Off)
Less than 0.3W
Type
External Power(Adapter)
Power Consumption (Max.)
120W
AC Input
100-240Vac, 50/60Hz
DC Output
19 - 24V , 6.32A - 5.0A (24V Ready)
FEATURE
Auto Luminance sensor
Yes
Black Stabilizer
Yes
Factory Calibration
Yes(Delta E<5, Gamma 1.8~2.6/DICOM curve)
DICOM
Yes(<=10%)
Color Temperature
6500K / 7500K / 9300K Manual (5000K ~ 10000K)
Flicker safe
Yes
HDR 10
Yes
HDR Effect
Yes
HW Calibration
Yes(True color pro)
OSD Language
17 Language
PBP
Yes (2PBP/3PBP/4PBP)
PIP
Yes
Picture Mode
(SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard, REC2020
Screen Flip
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes
Uniformity
Yes
DIMENSIONS/WEIGHT
Dimension without Stand (W x H x D)
764.6 x 480.8 x 94.4 mm
Weight without Stand
12.2 kg
Weight in Shipping
17.2 kg
Pallet Stuffing (20ft/40ft/40ft HC)
216EA / 405EA / 495EA
Dimension in Shipping (W x H x D)
883 x 599 x 200 mm
DISPLAY
Resolution
3840 x 2160
Response Time (GTG)
14ms (Off), 5ms(Faster)
Panel Type
IPS
Aspect Ratio
16:9
Brightness (Typ.)
800
Color Gamut (Typ.)
sRGB 115% (Area), Over 99%(Coverage)
Contrast Ratio (Typ.)
1000:1
Pixel Pitch
0.18159(H)mm x 0.18159(V)mm
Size (Inch)
31.5
Surface Treatment
Protection Glass (1.6t, AR, AF)
Viewing Angle (CR≥10)
178(R/L), 178(U/D)
Size (cm)
80.0051
Peak Brightness (Typ.)
800
ACCESSORY
HDMI
Yes
Power Cord
Yes
Adapter
Yes
Display Port
Yes
Calibration Report (Paper)
Yes
MECHANICAL
Wall Mountable
200 x 100 mm & 100 x 100 mm
CONNECTIVITY
DisplayPort
Yes(in 1ea/out 1ea)
DP Version
1.2
HDMI
Yes(1ea)
USB Downstream Port
Yes(1ea/ver2.0)
USB Upstream Port
Yes (1ea/ver2.0)
DVI
Yes(1In / 1Out)
3G-SDI
Yes(3G,INx1/OUTx1)
HDMI Version
2.0
RS-232
Yes
All image simulations are for illustration purposes only.
