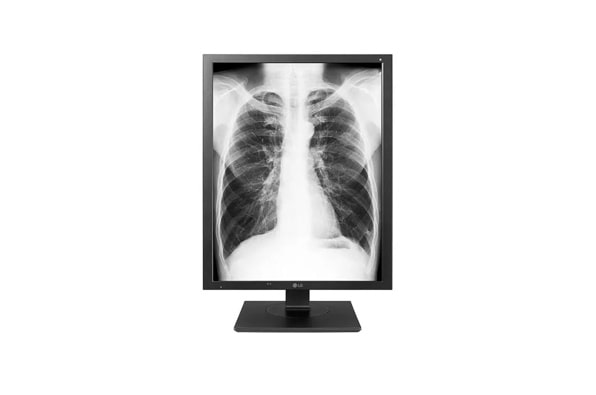

21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor
DISCONTINUED
21HK512D-B
21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor
Key Features
All Specs
- 21.3” Color IPS 3MP
- DICOM Part 14
- Auto Luminance Sensor
- Remote & Self Calibration
- Brightness(Typ.) 1000 cd/m²
Compare
Specs & Resources
STANDARD
CB
Yes
CE
Yes
FCC-B
Yes
PVC-Free
Yes
ROHS, REACH
Yes
Windows
Yes
ERP
Yes
UL (cUL)
Yes
CCC (for China)
Yes
MFDS (for Rep. of Korea)
Yes
VCCI (for Japan)
Yes
FEATURES
HW Calibration
Yes
Auto Brightness
Yes
OSD Language
18 countries English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (brazil), Traditional Chinese, Hindi
POWER
Power Consumption (DC Off)
Less than 6.5W
Type
Internal Power (LIPS)
Power Consumption (Typ.)
85W
Power Consumption (Max.)
100W
AC Input
100-240Vac, 50/60Hz
Power Consumption (Sleep Mode)
Less than 6.5W
DC Output
24V, 4.17A
DIMENSIONS/WEIGHT
Dimension with Stand (W x H x D)
21.8" x 20.2" x 9.4" / 553.8 x 512.9 x 240 mm
Dimension without Stand (W x H x D)
21.8" x 13.1" x 2.7" / 553.8 x 333.1 x 67.6 mm
Dimension in Shiping (W x H x D)
34.6" x 18.7" x 7.6" / 626 x 474 x 194 mm
Weight with Stand
13.4 lbs. / 6.1kg
Weight without Stand
8.8 lbs. / 4 kg
Weight in Shipping
TBD
Pallet Stuffing (20ft/40ft/40ft HC)
440/928/1008
DISPLAY
Resolution
2048 x 1536
Panel Type
IPS
Aspect Ratio
4:3
Brightness
1000 cd/m² (Typ.)
Color Depth (Number of Colors)
1.07G
Pixel Pitch
0.2115 (H) x 0.2115 (V)
Response Time
30ms
Size (Inch)
21.3 inch
Surface Treatment
Anti-Glare
Viewing Angle (CR≥10)
178º (R/L), 178º (U/D)
Size (cm)
54.102 cm
Backlight Technology
LED
Backlight Type
Edge
Color Bit
10bit
Contrast Ratio_Min.
1100:1
Contrast Ratio_Typ.
1400:1
Contrast Ratio with DFC
Mega
Calibrated Brightness
500 cd/m²
ACCESSORY
Display Port
Yes
DVI-D
Yes
Adapter (Color)
Black
Power Cord (Color/Length)
Black / 3m
DVI-D (Color/Length)
Black / 3m
Display Port (Color/Length)
Black / 3m
MECHANICAL
Display Position Adjustments
Tilt/Height/Pivot
Wall Mountable
100 x 100 mm
Borderless Design
Normal
Color (Front Cabinet)
Black
Color (Back Cover)
Black
Color (Stand Body)
Black
Color (Stand Base)
Black
Tilt
-5 ~ +35 º(±3)
Swivel
0~355±5
Height Range
0 ~ 130 mm
Down Height
71.3
Pivot
90º
Base Detchable
YES
OneClick Stand
Yes
CONNECTIVITY
DisplayPort
Yes (1ea)
DP (Max. Resolution at Hz)
2048 x 1536 @60HZ
USB Downstream Port
Yes (2ea)
USB Upstream Port
Yes (1ea)
DVI
Yes
DVI (V Frequency)
60
DVI (Max Resolution at Hz)
2048 X 1536 @60HZ
DP (V Frequency)
60
[Location]
Bottom
