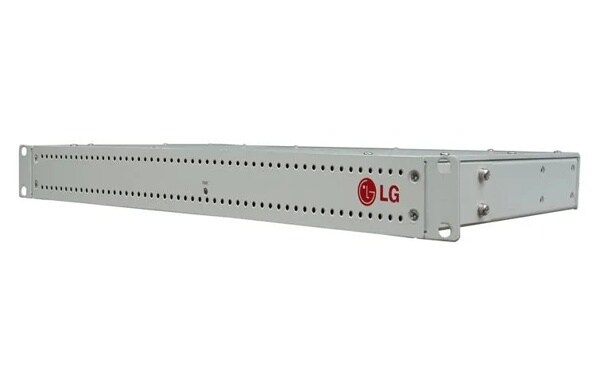

Pro:Centric® Server
DISCONTINUED
PCS200S
Pro:Centric® Server
Key Features
All Specs
- Simple Installation
- Minimal Head-End Rack-Space
- High Reliability
- Remote Support
- (New) Supports PCA Pro:Centric Application (PCA) V3.0
Compare
Specs & Resources
ENVIRONMENTAL STORAGE CONDITIONS
Data Output
ASI,RF(256 or 64 QAM), 100/1000T Ethernet
Rear Port
ASI/RF/RF Test/TTL serial/USB 1 Port, Ethernet 2 Port
SYSTEM SOFTWARE
System Software
Linux OS kernel 3.4 | Globally Executable MHP(GEM) server applications
REGULATORY COMPLIANCE
Regulatory Compliance
FCC, UL, RoHS
DIMENSIONS
Unit Dimensions (W × H × D)
19.0” x 1.7” x 8.5”
Unit Weight (Rack-only)
5.65 Ibs.
ELECTRICAL
Ethernet Connector (Feature Port)
100/1000BaseT, RJ45
RF Output Frequency Range
VHF/UHF 54-865 MHz
ASI Out Jack
75 ohms, BNC
Level at ASI Out Jack
800 mv
RF Output Span
Up to 8 Contiguous Channels (Typically 48-64 MHz)
RF Output Level
-6 dbm (+42 dbmV) Minimum, -2 dbm (+46dbmV) Typical
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
RS-232 DB-9
Command Line Interface port (5V TTL)
USB Port
USB 2.0
Optional Storage
1TGB Max. SATA Solid State Drive (SSD) (256GB typical)
CPU/Memory / Storage
Power PC e500v2 dual core SoC | 1 GHz System clock | 4GB 1.3 GHz DDR3 SDRAM | 4GB Micro SD Memory
Frequency Accuracy
5 ppm
DC Input
+19V DC @ 2.2 Amps Adaptor
CPU/Memory
Power PC e500v2 dual core SoC | 1 GHz System clock | 4GB 1.3 GHz DDR3 SDRAM | 4GB Micro SD Memory
WARRANTY/UPC
Warranty
1 Year
UPC
7 19192 91780 4
ENVIRONMENTAL OPERATING CONDITIONS
Temperature
-4° to 158° Fahrenheit (-20° to 70° Celsius)
Humidity
95% Non-condensing
MODULATION SPECIFICATIONS
Constellations
64-QAM, 256 QAM
Interleaving
Fixed I=128, J=1
Symbol Rate (256-QAM)
6.900 Mbaud / 6.111 Mbaud
Standard
ITU-T Annex B (QAM-B) / EN 300 429 V1.2.1 (DVB-C)
Symbol Rate
6.900 Mbaud / 5.360537 MBaud
