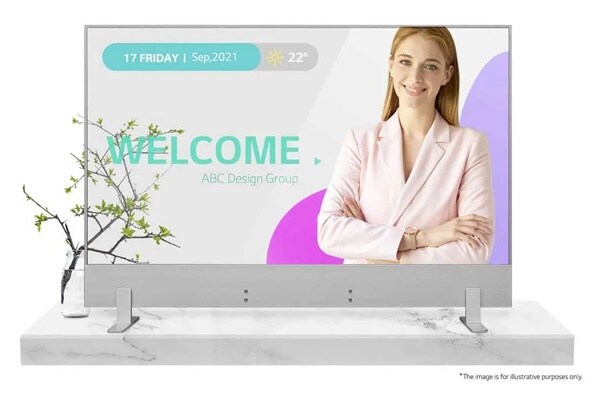

55” FHD Transparent OLED Digital Signage with webOS™ 4.0, Pro:idiom, Wake on LAN, Protective Tempered Glass
DISCONTINUED
55EW5G-A
55” FHD Transparent OLED Digital Signage with webOS™ 4.0, Pro:idiom, Wake on LAN, Protective Tempered Glass
Key Features
All Specs
- FHD (1,920x1,080) OLED
- Transparency (Typ.) 38%
- webOS™ 4.0
- Protective Tempered Glass
- Tile Mode Setting
- SuperSign CMS
Compare
Specs & Resources
KEY FEATURES
Internal Memory
16GB
Temperature Sensor
Yes
webOS ver.
webOS 4.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
RS-232C Sync
Yes
Local Network Sync
Yes
Video Tag
Yes (4)
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Inside
Yes
PM mode
Yes
Wake on LAN
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
Pro:Idiom DRM
Yes
CONNECTIVITY
Audio Out
Yes (1)
RS232C In
Yes (1)
IR In
Yes (1), External IR Receiver
USB in
USB2.0 Type A (2)
DP Out
Yes (1)
RS232C OUT
Yes (1) (w/ IR out)
HDMI
Yes (1), HDCP1.4
DP
Yes (1), HDCP1.3
RJ45 (LAN)
Yes (1)
LG SOFTWARE & SERVICES*
SuperSign CMS
Yes (v3.0)
SuperSign Control / Control+
Yes (v1.7/v1.9)
SuperSign WB
Yes (v3.7.15)
SuperSign Media Editor
Yes (v3.7)
LG ConnectedCare
Yes
Warranty & Other
Warranty
3 Year Limited
ErP
Yes
Basic Accessories
Remote Control (battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables (3000mm x 4ea/3000mm x 2ea) for connection between panel and Signage Box, DP Cable (2m), LAN Cable (1.5m), RS232 Cable (4P-4P,1.5m), LC Cable (VLC,3m)
Optional Accessories
Stand (ACC-S-EW5F, 2 Poll)
EMC
IEC 60950-1/EN 60950-1/UL 60950-1
Regulatory
FCC Class "A"/CE/KC
POWER
Power Type
Built-In Power
Power Supply
100-240 Vac, 50/60Hz
DPM
3W
Power off
0.5W
Typ. Power Consumption
250W/853.03BTU/Hr
Max. Power Consumption
280W/955.39 BTU/Hr
PANEL
Lifetime (Typ.)
30,000 Hrs
Panel Technology
OLED
Aspect Ratio
16:9
Brightness
400nits
Native Resolution
1920 x 1080 (FHD)
Color Gamut
BT709 120%
Surface Treatment (Haze)
Hard coating (2H)
Viewing Angle (H x V)
178° x 178°
Color Depth
1.07 Bilion colors
Contrast Ratio
150,000:1
Screen Size
55"
Refresh Rate
120Hz
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portrait / Landscape
Yes/Yes
Response Time (G to G)
1ms
MECHANICAL
Bezel Color
Transparent
Shipping Weight
50.9 lbs/23.1kg
Operation Temperature
32°F to 104°F/0°C to 40°C
Operation Humidity
10% to 80%
Weight
25.6 lbs/11.6kg
Shipping Dimensions (W x H x D)
53.0 x 36.2 x 8.1 in/1345 x 920 x 207 mm
Bezel Width (T/R/L/B)
7.9/7.9/7.9/121.7 mm
Weight - Signage box
7.5 lbs/3.4kg
Dimensions (W x H x D)
48.2 x 31.9 x 0.2 in/1225.5 x 810.1 x 4.9 mm
Dimensions - Signage Box (W x H x D)
30.8 x 9.4 x 1.4 in/782.8 x 238.4 x 34.7 mm
Protection Glass - Depth
3.0mm
Protection Glass - Chemical Strengthening
Yes
Protection Glass - Anti-Reflective
Yes (Film)
Protection Glass - Shatter-Proof
Yes
All image simulations are for illustration purposes only.
