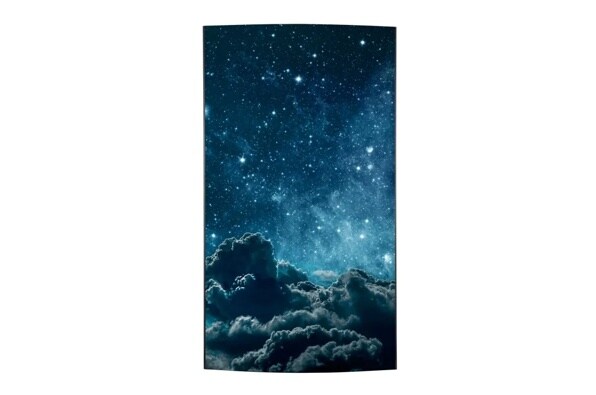

55” Portrait FHD Flexible Curved Open Frame OLED with Perfect Black & built-in SoC
DISCONTINUED
55EF5F-P
55” Portrait FHD Flexible Curved Open Frame OLED with Perfect Black & built-in SoC
Key Features
All Specs
- Brightness(Typ.): 400 nits (Average Picture Level 25%)
- Depth: 12.4 mm (Head Only)
- Curvature: ~1,000R(Concave/convex)
- Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
Compare
Specs & Resources
CONNECTIVITY
Input
HDMI, DP, USB 2.0 (2)
Output
DP, Audio (Fixed/Off/Variable)
External Control
RS232C In/out, RJ45 In/out, IR In
CERTIFICATION
EMC
FCC Class "A" / CE / KC
Safety
CB / NRTL
ErP / Energy Star
Yes(EU Only) / No
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Control+/Control
Content Management Software
SuperSign CMS
Signage365Care
Yes
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
No
ENVIRONMENT CONDITIONS
Operation Humidity
10 % to 80 %
Operation Temperature
0°C to 40°C
POWER
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
Power Consumption (Typ. / Max.)
309 W / 318 W (Based on 8 color bar)
PANEL
Panel Technology
OLED
Aspect Ratio
16:9
Native Resolution
1,920 x 1,080 (FHD)
Viewing Angle (H x V)
178 x 178
Orientation
Landscape & Portrait
Contrast Ratio
150,000 : 1
Screen Size
55"
Operation Hours
18 hrs / 7 days (moving video only)
Life Time (Typ.)
30,000 Hrs
Brightness (APL100%, Typ., cd/m²)
150
Brightness (APL25%, Typ., cd/m²)
400
ACCESSORIES
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
Optional
Curvature Calibrator (ACC-CC-EF5E)
PHYSICAL SPECIFICATION
Monitor Dimension (W x H x D)
701.4 x 1,219.7 x 38.0 mm (Head, w/Pem-nut) 701.4 x 1,219.7 x 12.4 mm (Head Only) Signage Box: 413 x 353 x 57.3 mm
Packed Weight
18.9 kg
Carton Dimensions (W x H x D)
1,350 x 837 x 250 mm
Bezel Width (T/B/L/R)
0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel) 5.0 / 5.0 / 7.8 / 13.2 mm (Flat, On Bezel)
Weight
7.8 kg (Head) Signage Box: 3.5 kg
All image simulations are for illustration purposes only.
