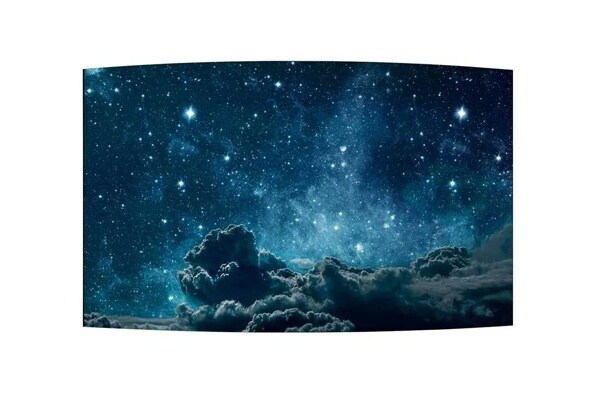

55” Landscape FHD Flexible Curved Open Frame OLED with Perfect Black & built-in SoC
DISCONTINUED
55EF5F-L
55” Landscape FHD Flexible Curved Open Frame OLED with Perfect Black & built-in SoC
Key Features
All Specs
- Brightness(Typ.): 400 nits (Average Picture Level 25%)
- Depth: 12.4mm (Head Only)
- Supported Curvature: Up to 1,000R (Concave/Convex)
- Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Carton Dimensions (W x H x D)
1,350 x 837 x 250 mm
Weight
6.6 kg (Head) Signage Box: 3.5kg
Bezel Width
0.6/0.6/6.7/6.7 mm (Flat, Off Bezel) 5.0/10.6/7.6/7.6 mm (Flat, On Bezel)
Packed Weight
17 kg (Head)
Dimension (Monitor) (W x H x D)
1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut) 1,224.9 x 696.2 x 12.4 mm (Head Only)
CONNECTIVITY
Input
HDMI, DP, USB 2.0 (2)
Output
DP, Audio (Fixed/Off/Variable)
External Control
RS232C In/out, RJ45 In/out, IR In
ENVIRONMENTAL CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Control+/Control
Content Management Software
SuperSign CMS
MEDIA PLAYER COMPATIBILITY
OPS type compatible
No
POWER
Power Type
Built-In Power
Power Consumption(Typ./Max., Based on 8 Color Bar)
309W/318W
Power Supply
100-240V~, 50/60Hz
STANDARD CERTIFICATIONS
Safety
CB / NRTL
ErP
Yes (EU Only)
EMC
FCC Class "A" / CE / KCC
PANEL
Brightness (Average Picture Level 25%, Typ., cd/m²)
400
Brightness (Average Picture Level 100%, Typ., cd/m²)
150
Panel Size
55"
Resolution
1,920 x 1,080 (FHD)
ACCESSORIES
Basic
Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
Optional
Curvature Calibrator (ACC-CC-EF5E)
All image simulations are for illustration purposes only.
