HDTV MPEG 2/4 Integrated STB
DISCONTINUED

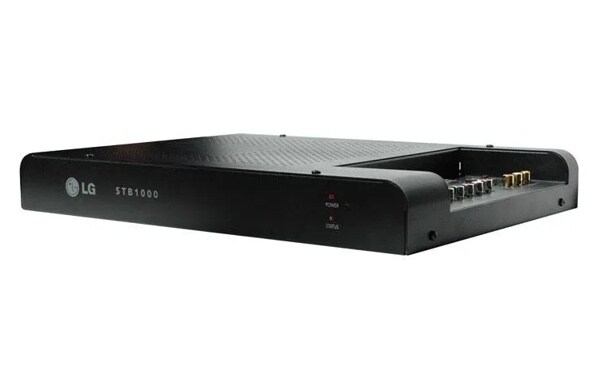

STB1000
HDTV MPEG 2/4 Integrated STB
Compare
Specs & Resources
INPUTS
AV
2
Audio
3.5mm Stereo Jack (for use with RJP or external device)
Component
1
USB
Service only
Remote In
(2) 3.5mm Jack for IR Receiver and TV/Monitor, inverter IR in
RGB
1 In
RF
1 In (Antenna/Cable)
AC
1 In
MPI
RJ-11 Modular Jack
Digital Video
2 HDMI Inputs (for use with RJP or external device)
INCLUDED IN CARTON
Included in Carton
STB1000 HDTV MPEG2/4 Interface STB, Installation and Setup Quick Reference/Warranty, 6 ft AC power cord, 5 ft RS-232C-F to RS-232C-F null modem cable with 3.5 mm plug, 5 ft RS-232C-M to RS-232C-F straight-through cable, 5 ft HDMI to DVI-M cable, 1 ft DVI-F to HDMI adapter cable, 5 ft Audio "Y" adapter cable with 3.5mm stereo plug (DVI/RGB) and two RCA plugs, 3 ft IR receiver cable with optional bracket (for multiple mounting options), 5 wall mount brackets with 10 screws for attaching the STB1000 to a wall, Installer Remote (model #MKJ4065383) with batteries
TECHNICAL SPECIFICATIONS
Command Set
Digital MPI – Power On/Off, Volume Up/Down, Set Maximum/Minimum Volume
Computer Requirements
Control Software and Standard Serial (RS-232), Interface
Connector (MPI)
Standard RJ-11
Product Dimensions (DxWxH)
9.7" x 13.9" x 1.8"
Rating
AC 100-125V~50/60Hz, 40W
Request TV Status
Signal Status, Power Status, TV Volume Level, Channel Number
Shipping Weight
9.5 Ibs
Source Selection
Any valid input source
UPC Code
7 19192 90155 1
Weight
6.4 Ibs
AC Input
AC 120V~60Hz, Max. 8A
AC Output
AC 120V~60Hz, Max. 8A
Able to Address Up To
1 Display
Carton Dimensions (DxWxH)
16.3” x 5.1” x 12.3”
LIMITED WARRANTY
Limited Warranty
1 year (parts/labor
REQUIRED LISTINGS
UL, cUL, FCC
Yes
OUTPUTS
Speaker Out
1 (2.5mm headphone type jack)
Remote Control
3.5mm jack
Pillow Speaker
Non-Functional (1 rear)
Display Control
RS-232C 9-pin D-Sub male
Digital Video
1 HDMI Out
Digital Audio
Digital Audio Out (Optical) SPDIF
Audio
3.5mm stereo jack (use with DVI/RGB)
AC
1 Out
OPTIONAL MOUNTS/ACCESSORIES
Optional Mounts/Accessories
Peerless® Wall Mount PWMT300, PWMT300-AC1 Peerless Accessory, LT2002 Clone Programmer or TLL-1100A
