Pro:Centric® SMART Set Top Box
DISCONTINUED
STB-5500
Pro:Centric® SMART Set Top Box
Key Features
All Specs
- Pro:Centric® Smart IPTV Platform
- Embedded Pro:Idiom® decryption for non-Pro:Idiom TV's
- IP Streaming and RF Tuning
- Supports Ultra HD/4K (3840 x 2160) and Full HD (up to 1080p) output resolutions
- Pro:Centric Application Support for non-Pro:Centric TVs
Compare
Specs & Resources
GENERAL FEATURES
Magic Remote
Yes (Ready)
Commercial Smart UX (Smart Home / Input)
Yes
Remote App Compatibility
Yes
JPEG
HTNG CEC
Yes
Pro:Idiom
Yes
Pro:Centric
Yes (Smart)
IP Streaming
Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)
Smart Share
Yes
Miracast (Mobile to TV)
Yes (Smart mirroring)
Wi-Fi Direct
Yes
DIAL
Yes
Audio Line Out (3Pin Phone Jack)
Yes
Wi-Fi
Yes (Built-in type)
Moving Picture Playback (SD/HD/Plus HD)
Yes (Except Divx)
RF (1/2Tuner)
Yes (1 Tuner )
Commercial Smart Home
Yes
HDMI-CEC
Yes
Third Party Embedded Apps
Yes
WiDi (PC to TV)
Yes
Instant ON
Yes
Video Mute
Yes
Web Browser option
Yes
WOL/WoWLAN
Yes
Soft AP
Yes
Installer Menu
Yes
Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel
Yes
Multicast/Unicast Ready
Yes
USB Cloning
Yes
External Hardware Module Interface
Yes (60pin Interface)
USB
USB2.0
HCAP Input Device Driver Support
Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)
DLNA (Movie/Photo/Music)
Yes (Smart share)
Multi DRM
Yes (Embedded Apps)
RJP Interface
Yes (HDMI)
Remote Diagnosis
Yes (IP)
IR Pass Through
Yes (MPI Jack/RS232)
RJP Compatibility
Yes (Teleadapt, G-Link)
Audio Codec
AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
One Channel Map / Logical Channel Map
Yes (LCM)
Multi IR Code
Yes
Auto Off / Auto Sleep
Yes
Smart Energy Saving (Auto Power Off)
Yes
HCAP (GEM/FLASH/HTML) Service Carousel (TLX)
GEM / Flash / HTML
Auto Configuration
Yes (EZ-Manager)

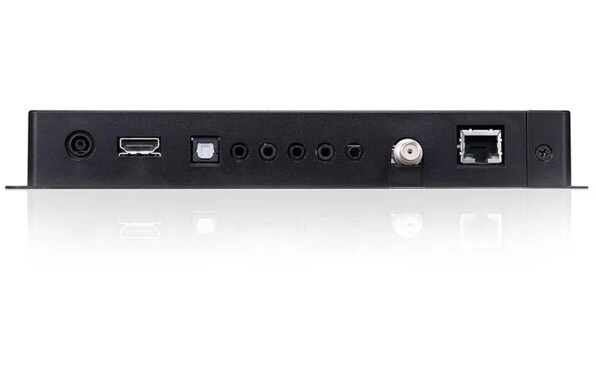

INTERFACE
External IR (3Pin Phone Jack)
Yes
USB (2.0)
Yes (2)
PTC Service (3Pin Phone Jack)
Yes
Tuner
Yes
TV Display Control MPI/MTI (RJ12)
Yes
AV In (4Pin Phone Jack)
Yes
Audio Line Out (3Pin Phone Jack)
Yes
HDMI (1,2)
Yes
TV Display Control RS-232 (4 pin phone jack)
Yes
Digital Audio Out (Optical)
Yes
LAN Port
Yes
HDMI Out
Yes
ACCESSORIES
AC Adaptor
Yes
Cables
HDMI, MPI, RS232 (Phone to RS232C) AV gender
Manual
Yes
AUDIO
Optical Sound Sync
YES (SPDIF)
Wireless Sound Sync
Yes
Clear Voice II
Yes
POWER
Voltage, Hz
Input: AC100 ~ 240V, 50/60Hz, 1.6A Output: DC19V, 3.42A
Consumption (Typical)
14.1W
Stand-by
0.5W
DIMENSIONS
W x H x D (Carton)
14.2" x 5.4" x 8.1"
Unit Dimensions (W × H × D)
8.2" x 6.7" x 1.2"
Weight (Packing)
3.9 lbs
Unit Weight
1.4 lbs
WARRANTY/UPC
Warranty
2 Year Limited Warranty (Parts and Labor)
UPC
7 19192 91972 3
ENVIRONMENTAL OPERATING CONDITIONS
Temperature
0o C to 40o C (32o F to 104o F)
Humidity
Less than 80%
VIDEO
Triple XD Engine
Yes
Output Resolution
720p / 1366*768 1080p / 2160p
BROADCASTING SYSTEM
Digital
Yes
Terrestrial
ATSC
Analog
Yes (NTSC)
Cable
Clear QAM/VSB
STANDARD CERTIFICATIONS
EMC
FCC
