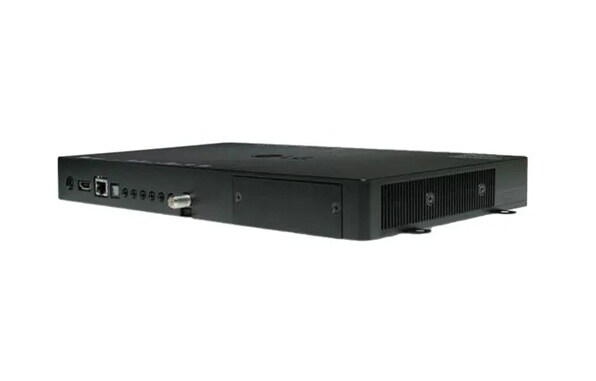

Pro:Centric® SMART Set Top Box
DISCONTINUED
STB-3500
Pro:Centric® SMART Set Top Box
Key Features
All Specs
- Pro:Centric® Smart IPTV Platform
- Embedded Pro:Idiom® decryption for non-Pro:Idiom TV's
- IP Streaming and RF Tuning
- HD Channel Support (up to 1080p)
Compare
Specs & Resources
ACCESSORY
Cable
HDMI, MPI/MTI, RS232, AV gender
Adapter
Yes
LG COMMERCIAL TV COMPATIBILITY
All LG hotel TVs with the MPI interface support are proven interoperable with the STB-3500, apart from the LP1 and LX3 models
Yes
All Commercial Lite models with RS.232 interface
Yes
Contact LG APD if you have compatibility issues with any LG commercial TV models.
Yes
GENERAL SPECIFICATION
Weight (w/o package)
14” x 1.4” x 7.9”
Weight (with package)
2.47 lbs
Dimensions
4.96 lbs
INTERFACE
HDMI In
Yes
USB (2.0)
Yes
PTC Service (3Pin Phone Jack)
Yes
External IR (3Pin Phone Jack)
Yes
Audio Line Out (3Pin Phone Jack)
Yes
Digital Audio Out (Optical)
Yes
Tuner
Yes (w/b-LAN)
LAN Port
Yes
HDMI Out
Yes (1)
TV Display Control RS-232 (RJ12)
Yes
TV Display Control MPI/MTI (RJ12)
Yes
Power
Yes
TV link Configuration (phone jack type)
Yes
AV In (4Pin Phone Jack)
Yes
AUDIO
Optical Sound Sync
Yes
POWER
Voltage, Hz
100V - 240V, 50/60 Hz
Stand-by
0.5W
Typical (Watts)
20.5W
SPECIAL FEATURES
USB Cloning
Yes
Pro:Centric Application
Yes (PCA3.0)
Pro:Centric
Yes (Smart)
Multi IR Code
Yes
Auto Configuration
Yes (EZ-Manager)
Remote Diagnosis
Yes (IP)
Audio Codec
AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
Smart Energy Saving (Auto Power Off)
Yes
Pro:Idiom
Yes
Auto Off / Auto Sleep
Yes
RJP Compatibility
Yes (Teleadapt, G-Link)
RJP Interface
Yes (HDMI-CEC)
Video Mute
Yes
Card Slot Ready
Yes (Module slot & 12V/1A out)
One Channel Map / Logical Channel Map
Yes
Soft Access Point
Yes
Hotel Mode
Yes (Installer Menu)
IR Pass-Through
Yes (MPI Jack/RS232)
Instant ON
Yes
Multicast/ Unicast ready
Yes
Commercial Smart UX (Smart Home / Input)
Yes
DLNA (Movie/Photo/Music)
Yes (Smart share)
WiDi (PC to TV)
Yes
WiFi Direct
Yes
HCAP (GEM/Flash/HTML)
GEM / Flash / HTML
HCAP Input device driver support
Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)
Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel
Yes
IP Streaming
Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)
RF
Yes (1 Tuner)
WiFi
Yes (Built-in)
Web Browser
Yes
APP. (P:C Smart)
Yes (Commercial CP/Apps)
Auto Off /Auto Sleep
Yes
Smart Share
Yes
Audio Line Out (3Pin Phone Jack)
Yes
Miracast (Mobile to TV)
Yes (Smart mirroring)
USB
USB2.0
JPEG
REQUIRED LISTING (CERTIFICATION)
Safety
UL
EMC
FCC
ETC
RoHS, cUL, NOM, Energy Star 4.1
VIDEO
Triple XD Engine
Yes
Output Resolution
720p/1080p/1366 x 768
BROADCASTING SYSTEM
Analog
Yes (NTSC)
Digital
Yes
REMOTE JACK PANEL COMPATIBILITY (RJP)
REMOTE JACK PANEL COMPATIBILITY (RJP)
G-Link, teleadapt
NON-LG AND OTHERS COMPATIBILITY
Commercial hotel TVs supporting the MTI/MPI interface should be compatible with the STB-3500, but it is the System Integrators responsibility to perform verification testing using a sample TV prior to deployment or customer commitment. Issues found should be reported to LG APD.
No
