Set Top Box
DISCONTINUED

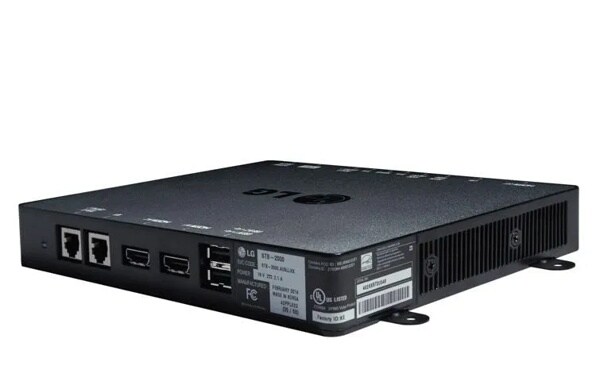

STB-2000
Set Top Box
Key Features
All Specs
- Pro:Centric® Smart IPTV Platform
- Embedded Pro:Idiom® decryption for non-Pro:Idiom TV's
- IP Streaming and RF Tuning
- HD Channel Support (up to 1080p)
Compare
Specs & Resources
DISPLAY
IP Protocol
HLS, UDP, RTSP, SNMP
Coax
64/256 QAM, ATSC
Video Resolution
720p, 1080p, 1366 x 768
OTHER INTERFACE
LAN (RJ45)
10/100 LAN (1)
TV Control 1
TLM
TV Control 2
MPI/MTI
USB
USB 2.0 (2)
WARRANTY
WARRANTY
Two (2) Years
AUDIO
Supporting Codec
AC3, PCM, MP3
COMPATIBILITIES
REMOTE JACK PANEL COMPATIBILITY
G-Link, teleadapt, HDMI-CEC
DECRYPTION
Pro:Idiom®
INPUTS/OUTPUTS
HDMI™
2
Line Out
Analog L/R
Audio Out
Optical
Video Out
HDMI
Coax
Antenna/Cable In
IR In
External IR Receiver (not included)/3.5mm, 3.3V
AV In
Composite Video and L/R Audio
ACCESSORIES
Included
HDMI Cable Display Control Cable (MPI/MTI & TLM), Composite AV Adaptor Cable
Not Included
USB Camera (Only AN-VC400) Magic RCU
POWER
Operating Power/ Standby Power
15.8W (Typical measured value), 5.4W(EPA3.0/ On Mode) 0.26W
UPC CODE
UPC CODE
7 19192 91769 9
SPECIAL FEATURES
USB Cloning
Yes
HCAP (GEM/FLASH/HTML)
Yes
EzManager
Yes
Multi IR Code
Yes
Audio Codec
AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
SI Compatible (TVLink Protocol)
Yes (MPI protocol)
Auto Off / Auto Sleep
Yes
Video Mute
Yes
One Channel Map/Logical Channel Map
Yes (LCM)
RF
Yes (1 Tuner)
Web Browser
Yes
SIMPLINK™ (HDMI/CEC)
Yes (1.3)
HTNG-CEC 1.3
Yes
Smart Mirroring
Yes
WiDi (Intel)
Yes
Pro: Centric Platform
Yes
IP Streaming MultiCast/HTTP Data Carousel
Yes
Preloaded Applications (Pro:Centric® Smart)
Yes (Facebook, Twitter, Google Maps, Accuweather, Internet Browser)
Instant On
Yes
Smart Share/WiFi Direct/DLNA
Yes (Smart Share)
Hotel Mode/Installer Menu
Yes
IR Pass Through
Yes (MPI Jack)
USB
USB2.0 (Media Host)
JPEG
VIDEO
Video Codec
MPEG-2/4
DIMENSIONS & WEIGHT
Dimensions
7.6” x 6.5” x 1.1”
Weight (w/o package)
1.1 lbs
Weight (with package)
3.1 lbs
REQUIRED APPROVALS
UL, cUL, NOM
Yes
Energy Star 3.0
Yes
Safety
UL, CSA
RoHS Compliant
Yes
All image simulations are for illustration purposes only.
