Auto-Sensing Remote Jack Pack (RJP)
DISCONTINUED
RJP-301B
Auto-Sensing Remote Jack Pack (RJP)
Compare
Specs & Resources
ENVIRONMENTAL PARAMETERS
Humidity
10% to 90% Non-condensing
Operating Temperature
32° to 104° Fahrenheit (0° to 40° Celsius )
Cooling
Free Air Convection
Storage Temperature
-4° to 185° Fahrenheit (-20° to 85° Celsius)
INSTALLER CONNECTIONS (TV Display Panel)
Control Cable (8-pin RJ-45)
1 set
Audio L-R
1 set
HDMI
1 set
INSTALLER CONNECTIONS (TV Display Panel)
Mixed Signal Breakout/Cable Assembly (see illustration on front):
WARRANTY
Warranty (Parts/Labor)
1 Year
UPC Code
7 19192 17576 1
INSTALLER CONNECTIONS (RJP back)
Mixed Signal Out
Mixed Signal Connector (only connect to mixed signal breakout cable)
Audio Out
3.5 Stereo Audio Jack for future use
iPOD® Dock Port
10-pin RJ-50 for future use
SUPPLIED ACCESSORIES LIST
Mixed Signal Cable Assembly
1 (approx. 13.5 ft)
Installation & Setup Guide
1
Wall Hole Cutout Template
1
Security (pin-in) Torx (T-20) head screws
2 (installed)
Retainer Clips. L-Shaped
2 (installed)
Side Cover
2
REGULATORY
CE, C-Tick
Yes
FCC
Class B, Digital Video Device
REMOTE JACK PACK
Shipping Weight
3.23 lbs.
Recommended hole cutout
8.46" (8 & 7/16")W x 1.69" (1 & 11/16") H
Unit Dimensions (W×H×D)
9.00" x 2.13" x 3.63"
UPC Code
7 19192 17576 1
Type of Installation
Vertical Wall Mount
Carton Dimensions (W×H×D)
21.93" x 4.33" x 16.54"
Color
Black
Unit Weight
0.882 lbs.

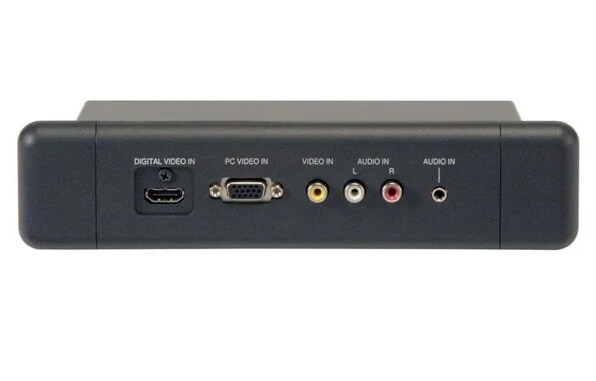

END-USER DEVICE INPUTS (RJP front)
Audio In
3.5 mm Stereo Audio Jack
PC Video In
15-pin RGB PC Monitor Connector
Video In
Composite Video Jack 1 Vpp, 75 ohms
Audio In L-R
Left - Right Audio Jacks (Nom In: 250mV RMS @ 22K ohms) Overload In: 1.6V RMS Max
HDMI™ In
HDMI Connector
All image simulations are for illustration purposes only.
