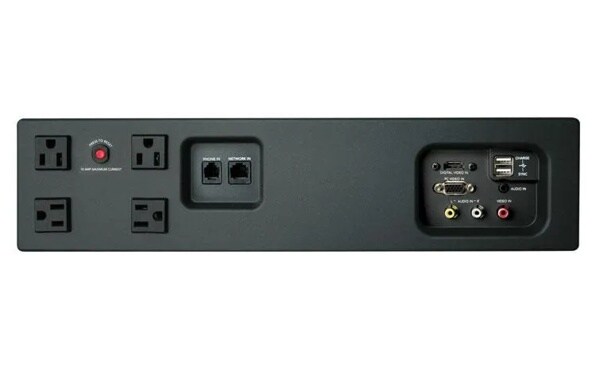

Auto-Sensing Remote Jack Pack - Full-Featured
DISCONTINUED
RJP-201M
Auto-Sensing Remote Jack Pack - Full-Featured
Compare
Specs & Resources
ENVIRONMENTAL PARAMETERS
Humidity
10% to 90% Non-condensing
Operating Temperature
0° to 40° Degrees Celsius (32° to 104° Degrees Fahrenheit)
Storage Temperature
-20° to 85° Degrees Celsius (-4° to 185° Degrees Fahrenheit)
Cooling Free Air Convection
Free Air Convection
SERVICE/LIMITED WARRANTY
Warranty (Parts/Labor)
1 Year
OUTPUT
Audio In L-R
Left - Right Audio Jacks Max: 1.6 V RMS (1 KHz)@ 600 ohms Typ: 250mV RMS @ 600 ohms
Network In
LAN Jack (8-Pin RJ-45)
USB Out
USB “A” type Male Plug
Control & Aux
Control Jack (8-Pin RJ-45) iPod Audio/Video Dock In (14-Pin Wafer)
Digital Video Out
Digital Video Connector (HDMI)
Phone Out
Phone Jack (6-Pin RJ-11)
END-USER DEVICE INPUTS
Network In
LAN Jack (8-Pin RJ-45)
Audio In L-R
Left - Right Audio Jacks (Nom In: 250mV RMS @ 22K ohms) Overload In: 1.6V RMS Max
USB In
USB Connector, Charge(5V,0.5A), Data(5m) (“A”- type female)
Digital Video In
Digital Video Connector
Audio In
3.5 mm Stereo Audio Jack
AC Outlets x 4
AC 120V 60Hz (Maximum 7 Amps. total combined current allowed for AC outlets)
Phone In
Phone Jack (6-Pin RJ-11)
Video In
Composite Video Jack, 1 Vpp, 75 ohms
PC Video In
15-pin RGB PC Monitor Connector
Misc. Hardware
5-Retainer Clips, L-Shaped (4-Required)
Yes
5-Machine Screws w/SerratedWashers (4-Required)
Yes
Optional IDS-20G
Coming soon
SUPPLIED ACCESSORIES LIST
Separate Cables-Phone Cable (6-Pin RJ-11)
Yes
Separate Cables-Network Cable (8-Pin RJ-45)
Yes
SUPPLIED ACCESSORIES LIST
Cable Assembly Note: All cables 12 feet (approx.) in length for RJP-201M Mixed Signal Cable Assembly (approx. 12.9 ft)
Attached Cord
AC Power Cord, 120V 60Hz
REGULATORY
UL, FCC
Class B, Digital Video Device
REMOTE JACK PACK
Shipping Weight
3.31 Ibs
Recommended hole cutout
16.031" (16 & 1/32")W x 3.562" (3 & 9/16") H
Unit Dimensions (W×H×D)
16.49” x 4.08” x 2.18”
UPC Code
7 19192 90182 7
Type of Installation
Vertical DrawerMount (desk back splash)
Carton Dimensions (W×H×D)
18.9” x 4.7” x 13.9”
Color
Black
Unit Weight
2.54 Ibs
