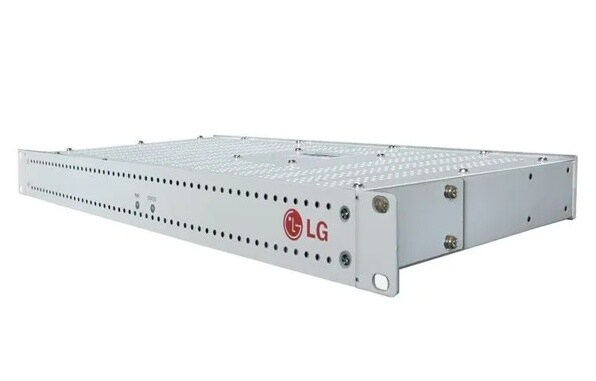

CodePlus Pro:Idiom video distribution transcoder system
DISCONTINUED
PIVD100R
CodePlus Pro:Idiom video distribution transcoder system
Compare
Specs & Resources
WARRANTY
UPC Code
7 19192 90370 8
Limited Warranty (Parts/Labor) 1 Year
1 Year
REGULATORY COMPLIANCE
Regulatory Compliance
FCC, RoHS, UL
DIMENSIONS
Weight
3.95 pounds (1.80 kgrms) rack-only weight
Width
19.0 inches (482.6 mm) with mounting brackets attached (for EIA standard 19-inch rack mount)
Depth
8.5 inches (215.9 mm)
Height
1.692 inches (42.977 mm)
ELECTRICAL
Active Output Level at RF Out jack
+ 42 dBmV Min
DC Input
+ 12V DC @ 2.1 Amps
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
Ethernet Connector (Feature Port)
1000 BaseT, RJ-45
RF Out Connector
Type 'F'
RF Output Frequency Range
54 MHz to 864 MHz
USB Ports (2)
USB 2.0
RF Output Span
4 Contiguous Channels (typically 24 MHz)
All image simulations are for illustration purposes only.
