Pro:Centric Server
DISCONTINUED

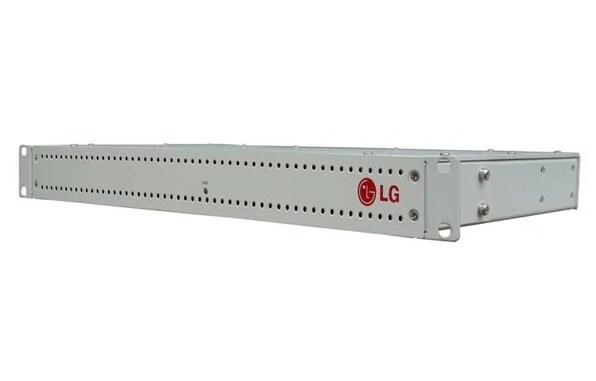

PCS200R
Pro:Centric Server
Key Features
All Specs
- Simple Installation
- Minimal Head-End Rack-Space
- High Reliability
- *New* Supports PCA Pro:Centric Application (PCA) V3.0
Compare
Specs & Resources
ENVIRONMENTAL STORAGE CONDITIONS
Data Output
ASI,RF(256 or 64 QAM), 100/1000T Ethernet
Rear Port
ASI/RF/RF Test/TTL serial/USB 1 Port, Ethernet 2 Port
WARRANTY
WARRANTY
1 Year
SYSTEM SOFTWARE
System Software
Linux OS kernel 3.4, Globally Executable MHP(GEM) server applications
DIMENSIONS
Unit Dimensions (W×H×D)
19.0" x 1.7" x 8.5"
Unit Weight (Rack-only)
5.65 Ibs.
ELECTRICAL
DC Input
+12V DC @ 3.25 Amps Adaptor
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
Ethernet Connector (Feature Port)
100/1000BaseT, RJ45
RF Output Frequency Range
VHF/UHF 54-865 MHz
Level at ASI Out Jack
800 mv
RS-232 Serial Audio Jack
Command Line Interface port (5V TTL)
RF Output Level
-6 dbm (+42 dbmV) Minimum, -2 dbm (+46dbmV) Typical
0 dbmV RF Output Level
-48.75 dbm (0dbmV) Typical
Frequency Accuracy
5 ppm
RF Output Connectors (2)
75 Ohm, Type 'F'
USB Port
USB 2.0
ASI Out Jack
75 ohms, BNC
RF Output Span
Up to 8 Contiguous Channels (Typically 48-64 MHz)
ENVIRONMENTAL OPERATING CONDITIONS
Humidity
95% Non-condensing
Storage Temperature
-4° to 158° Fahrenheit (-20° to 70° Celsius)
UPC CODE
UPC Code
7 19192 91554 1
MODULATION SPECIFICATIONS
Symbol Rate (256-QAM)
6.900 Mbaud / 6.111 Mbaud
Constellations
64-QAM, 256 QAM
Interleaving
Fixed I=128, J=1
Standard
ITU-T Annex B (QAM-B) / EN 300 429 V1.2.1 (DVB-C)
Symbol Rate (64-QAM)
6.900 Mbaud / 5.360537 MBaud / 6.111 Mbaud
CERTIFICATION
Regulatory Compliance
FCC, UL, RoHS
All image simulations are for illustration purposes only.
