CodePlus Off Air Transcoder System
DISCONTINUED
OAT100R

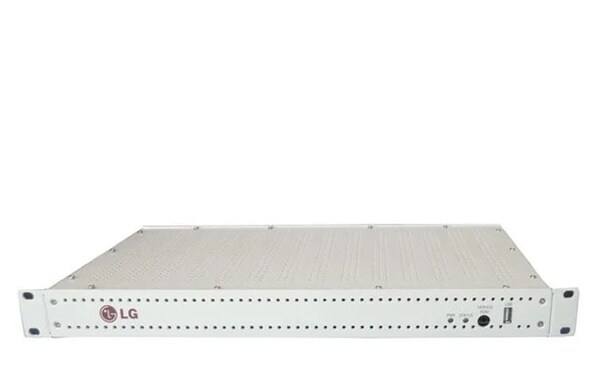

CodePlus Off Air Transcoder System
Compare
Specs & Resources
WARRANTY
UPC Code
7 19192 90410 1
Limited Warranty (Parts/Labor)
1 Year
DIMENSIONS
Weight
4.45 lbs
Width
19.0" (483mm) per EIA stand
Depth
8.12" (206.2mm)
Height
1U chassis - 1.65" (42mm
ELECTRICAL
Active Output Level at RF Out jack
+ 42 dBmV Min
DC Input
+ 12V DC @ 2.6 Amps
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
Ethernet Connector (Feature Port)
1000BaseT Full Duplex, RJ-45
RF Out Connector
Type 'F'
RF Output Frequency Range
54 MHz to 864 MHz
RF Output Span
4 Contiguous Channels (typically 24 MHz)
