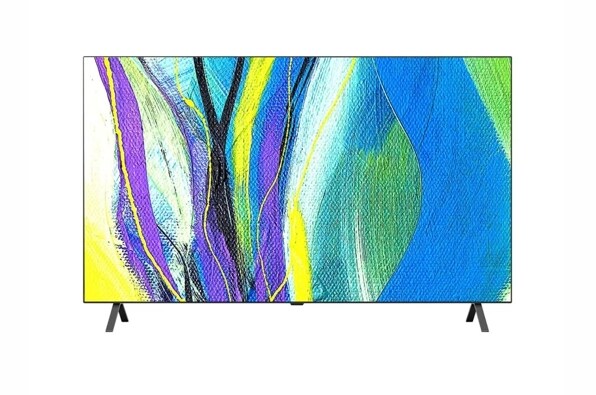

77" 4K UHD Pro:Centric® SMART OLED Hotel TV
77AM960H0UD
77" 4K UHD Pro:Centric® SMART OLED Hotel TV
Key Features
All Specs
- 77" (3,840 × 2,160) 4K UHD OLED TVs
- webOS™ 23, Pro:Centric® SMART & Pro:Idiom®
- Netflix Accessible
- USB Data Cloning
- Bult-in Speakers
- Built-in Wi-Fi & Bluetooth
Compare
Features and Specs

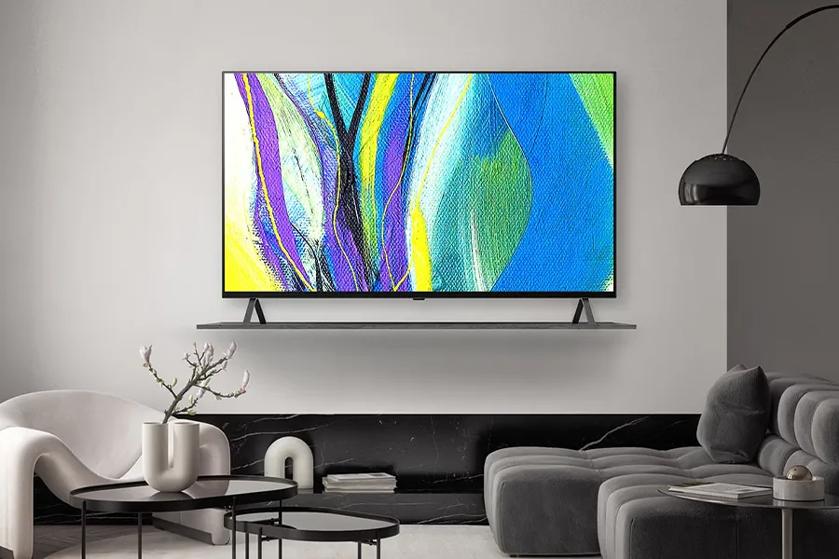

LG OLED Self-lit
Millions of OLED pixels come together to deliver the next level of Hotel TV. Enjoy the deep black, rich colors and vivid picture quality.

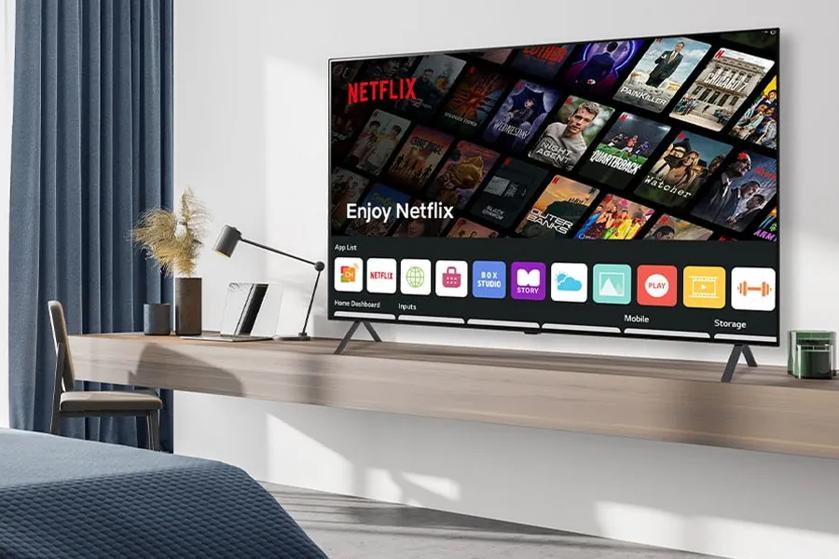

Netflix Accessible
Your guests can experience a wide variety of video content from Netflix on AM960H with Pro:Centric® Direct.²

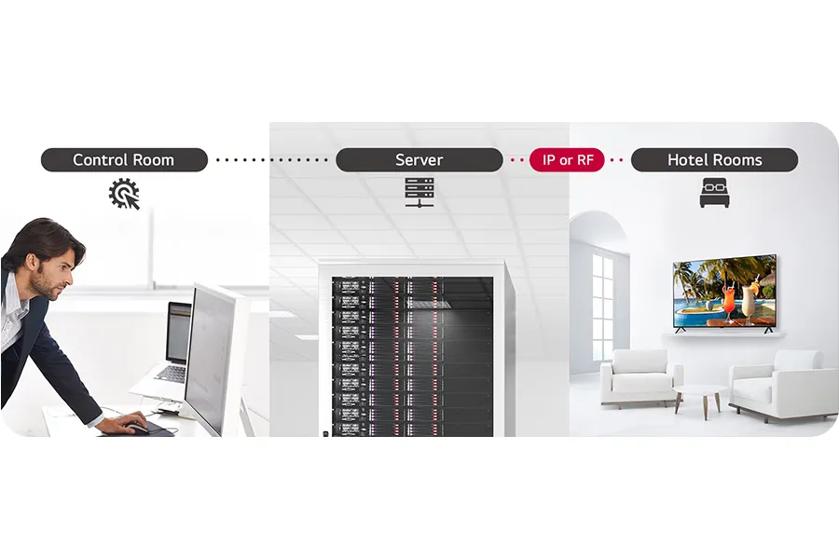

Pro:Centric® Direct
The hotel content management solution, Pro:Centric Direct, offers editing tools that make it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface & provides customized interface to efficiently manages in-room TVs. The current PCD version provides IoT-based in-room control as well as voice control function through LG Natural Language Processing (NLP).¹
Software Features
Wake on RF
Yes
webRTC (Real Time Communication)
No
Video Tag
Yes (x2)
Wake-on-LAN (WOL)
Yes
SNMP
No
Hospitality Features
Home (Launcher Bar)
No
Instant On
Yes
USB Auto Playback+
No
Welcome Screen (Splash Image)
No
EzManager
Yes
Pillow Speaker Compatibility
N/A
Motion Eye Care
No
One Channel Map
LCM
Welcome Video
No
Insert Image
No
HTNG-CEC
No
RJP (Remote Jack Pack) Compatibility
Teleadapt / Guestlink (HDMI CEC)
USB Auto Playback
No
Lock Mode
Yes (Limited)
Installer Menu
Yes
Public Display Mode
No
Hotel Mode
No
Port Block
Yes
Electrical
Power Consumption (Max.)
495W
Power Supply
100-240 Vac, 50/60 Hz
Optional DC Power Supply Input (AM-PW188A)
N/A
Power over Coax (PoC)
N/A
Optional DC Power Supply Output (AM-PW188A)
N/A
Power Consumption (Standby)
Less than 0.5W
Power Consumption (Typ.)
430 W
Mechanical
Color
Not Available
Back Color
Not Available
Bezel Width (On Bezel)
R/L: 11.0 mm, T: 12.4 mm, B: 16.7 mm
Bezel Width (Off Bezel)
L/R/T: 1.3 mm, B: 1.3 mm
Stand Type
No
Weight
50.5 lbs / 22.9 kg
Weight with Stand
51.8 lbs / 23.5 kg
Shipping Weight
73.8 lbs / 33.5 kg
Dimensions (W x H x D)
67.8 x 38.9 x 2.0 in / 1719 × 989 × 50.9 mm
Dimension with Stand (W x H x D)
67.8 x 41.6 x 12.6 in / 1719 × 1057 × 319 mm
Dimensions with Top Mount (W x H x D)
N/A
Shipping Dimensions (W x H x D)
72.4 x 44.5 x 7.9 in / 1839 × 1130 × 200 mm
Credenza / Security Aperture
No
Kensington Lock
No
Lock Down Plate
No
VESA™ Standard Mount Interface
300 x 200 mm
Audio/Sound
Built-in Speakers
Yes (x2) 20W
AI Acoustic Tuning
Yes
AI Sound
Yes
LG Sound Sync
Yes
Sound Mode
No
One Touch Sound Tuning
No
Clear Voice
No
Broadcasting
Digital (Terrestrial, Cable, Satellite)
ATSC, Clear QAM
Analog (NTSC/SECAM/PAL)
NTSC
Global IPTV Support (IPStreaming)
No
MPEG-2 / MPEG-4 H.264 Decoding
No
Closed Caption
Not Available
Features
IR Signal from Receiver (Logic High Pulses)
RS-232C
Update Time
No
VLAN ID
Yes
Embedded b-LAN
No
Beacon
No
SI Compatible (TVLink Interactive)
No
NTP Sync Timer
No
Multi-code IR
Yes
Voice Recognition (Standalone / Solution)
No
V-Lan Tag
No
Mobile Connection Overlay
No
Diagnostics
Yes (IP Remote)
LG TV Plus App
No
Energy Saving Mode
Yes
External Control Interface
Yes (MPI, RS232C)
IoT
No
IR Signal from Receiver (Logic Low Pulses)
No
XD Engine
No
USB Data Cloning
Yes
Picture Mode
Not Available
System
Operating System (OS)
webOS™ 23
Main Processor (SoC)
No
Connectivity
HDMI In
Yes (x3) v2.0
HDMI-ARC
No
RF In (Antenna / Cable)
Yes (x1)
RS-232C (3.5 mm)
Yes (x1)
RS-232C (D-sub 9-pin)
No
RJ45 (LAN)
No
RJ45 (AUX LAN)
No
RJ45 (Ethernet)
Yes (x2)
MPI (RJ12)
Yes (x1)
ECI (RJ12)
No
Service Only (3.5 mm)
Yes (x1)
USB Type-A In
Yes (x2) v2.0
MPI (RJ45)
No
Simplink (HDMI-CEC)
Yes (x1) HDMI 1.4
Simplink (HDMI-CEC) plus CEC-HTNG
No
AV In (3.5 mm)
No
DC In
No
Pillow Speaker Interface (6 Pin)
No
TV Link CFG (3.5 mm)
N/A
Audio Out (3.5 mm)
Yes (x1)
Digital Audio Out (Optical)
Yes (x1)
IR Out
No
Headphone Out (3.5 mm)
No
Built-in Wi-Fi
No
Port Location
Rear, Side
RF / AC In (Power Over Coax)
No
Debug (3.5 mm)
No
Speaker Out / Line Out
No
Warranty & Other
Assembled In
Not Available
Warranty
3 Year Limited
Onscreen Display Languages
Not Available
Optional Accessories
MMR Remote
UPC
Not Available
Basic Accessories (included)
Not Available
Regulatory & Certifications
UL Certification
No
NOM
No
CEC (Regulatory)
No
RoHS (Environmental)
No
FCC (Regulatory)
Yes
ISO 22196 (Antimicrobial)
No
NRCan
No
ETL
Yes
Conformal Coating
No
Smart Features
Smart Home (Launcher Bar)
No
Gallery Mode
Yes
Quick Access
No
Web Browser
Yes
Pre-loaded Apps
No
Magic Remote Compatibility
Yes
SW Clock (World Clock / Alarm)
No
Soft AP
Yes
Moving Picture Playback (SDD/Plus HD)
No
Auto Off / Sleep Timer
No
Bluetooth Audio Playback
Yes
Bluetooth Sound Sync (Audio Playback)
No
Screen Share (Miracast)
No
Smart Share
No
Multi View
N/A
Home Office
N/A
SDP Server Compatibility
No
DIAL
No
Hospitality Solutions
Pro:Centric® Smart CMS
Yes
Pro:Centric® Direct
Yes
Pro:Centric® V
Yes
Pro:Idiom® DRM (S/W, Mobile, Lite)
Yes
Pro:Idiom® Media DRM
Yes
Pro:Centric® Data Streaming (IP)
No
Pro:Centric® Data Streaming (RF)
No
Pro:Centric Server
Yes
Pro:Centric® IP Return Path
No
HCAP (GEM / FLASH / HTML)
No
Service Carousel (TLX, Firmware)
No
Mutlicast Ready
No
Unicast Ready
No
Quick Menu Version
N/A
LG Server Compatibility
Not Available
Panel
Screen Size (Inches)
77"
Panel Technology
OLED
Nano Cell Technology
No
Back Light Type
Not Available
Touchscreen (P-Cap)
No
Aspect Ratio
Not Available
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60 Hz
TruMotion Refresh Rate
Not Available
Brightness (Typ.)
500 nits
Brightness (Min.)
Not Available
Contrast Ratio
Not Available
Dynamic Contrast Ratio
Not Available
Viewing Angle (H x V)
Not Available
Response Time (G to G)
Not Available
AI Picture Pro
Yes
Dynamic Vivid
No
Lifetime
Not Available
HDR10 Pro
Yes
HDR HLG
Yes
Game Optimizer
Yes
All image simulations are for illustration purposes only.
