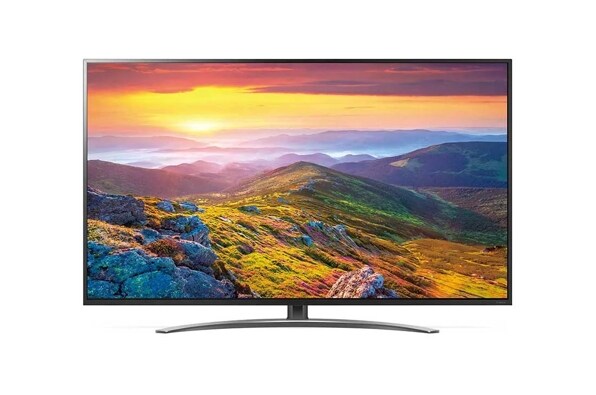

75” UT770H Series Pro:Centric® Smart Hospitality Slim UHD TV with NanoCell Display
DISCONTINUED
75UT770H
75” UT770H Series Pro:Centric® Smart Hospitality Slim UHD TV with NanoCell Display
Key Features
All Specs
- Pro:Centric® Hotel Management Solution
- NanoCell Display Panel
- Smart Share & Screen Share
- Embedded b-LAN™
- Pro:Idiom®
- webOS 4.5
Compare
Specs & Resources
HOSPITALITY FEATURE
Hospitality
Hotel Mode(Installer Menu), Welcome Screen(Splash Image), Insert Image, One Channel Map(LCM), External Speaker Out (Int / Ext Variable / Fixed), Instant ON, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
DISPLAY
Resolution
3,840 x 2,160 (UHD)
Brightness
400 nit
Backlight Unit Type
Edge
Inch
75
SMART FEATURE
Feature
webOS 4.5, Smart Home (Launcher Bar), Quick Access, Web Browser, Pre-loaded App, SDP Server compatibility, Magic Remote Compatibility (Ready), Clock (World Clock / Alarm), Soft AP, Wi-Fi (802.11ac, Built-in type), Screen Share (Miracast), Smart Share (DLNA), LG TV Plus App Compatibility, DIAL, Bluetooth Audio Playback, LG Sound Sync / Bluetooth, Mobile Connection Overlay, Voice Recognition (Standalone / Solution), IoT, EzManager (Simplicity), USB Cloning, Wake on RF, Wake on LAN, SNMP, Diagnostics (IP Remote), SI Compatible (TVLink Interactive, MPI, RS232C), HTNG-CEC (1.4), Simplink (HDMI-CEC, 1.4), IR Out (RS-232C, HDMI), Multi IR Code, Anti-theft System (Kensington Lock), Chromecast Dongle Anti-theft Cover (Optional)
AUDIO
Speaker System
2.0 ch
Audio Output
20W + 20W
One Touch Sound Tuning
Ready
DOLBY ATMOS
Yes
LG Sound Sync
Bluetooth required
HOSPITALITY SOLUTION
IP Return path
Yes
DRM
Pro:Idiom (S/W Type), Pro:Idiom Media
Solution Type
Pro:Centric (Smart, V, Direct), Quick Menu 3.0
HCAP (GEM/FLASH/HTML) ※ Service Carousel (TLL/XML)
GEM / HTML5
Multicast / Unicast ready
Yes / Yes
webRTC (Real Time Communication)
Yes
Data Streaming ( IP & RF )
Yes
Pro: Centric Application (version)
PCA3.8
Pro: Centric Server
PCS400R
VIDEO
HDR (Dolby Vision / 10 Pro / HLG)
Yes / Yes / Yes
JACK INTERFACE
Set Side
HDMI In 2.0(2), USB 2.0
Set Rear
RS-232C (Control & Service, Phone Jack Type) RJ45 (Usage Purpose : 1 (Ethernet)), RF In(Dual b-Lan), Digital Audio Out (Optical), External Speaker Out (3.5mm Phone Jack) : 1 (Spk-out fixed 0.01W~1.00W and line out), TV link Configuration(phone jack type) : 1 (b-LAN Service), MPI Port(RJ12 jack), Debug (Phone Jack Type) : 1(CPU/PTC)
POWER(UNIT : WATTS)
Stand-by
Under 0.5W
Typical
183.3W
Power Supply (Voltage, Hz)
AC 120 V ~ 50 / 60 Hz
DESIGN
Front Color
Black
Stand Type
1 pole (Fixed)
BROADCASTING SYSTEM
Digital
ATSC / Clear QAM/VSB, Analog NTSC
DIMENSION(UNIT: MM/KG)
Vesa
600 x 400
W x H x D / Weight (Shipping)
1,839 x 1,166 x 231 / 52.2
W x H x D / Weight (with stand)
1,683 x 1,043 x 369.8 / 41.6
W x H x D / Weight (without stand)
1,683 x 974 x 35.1(65.2) / 38.8
All image simulations are for illustration purposes only.
