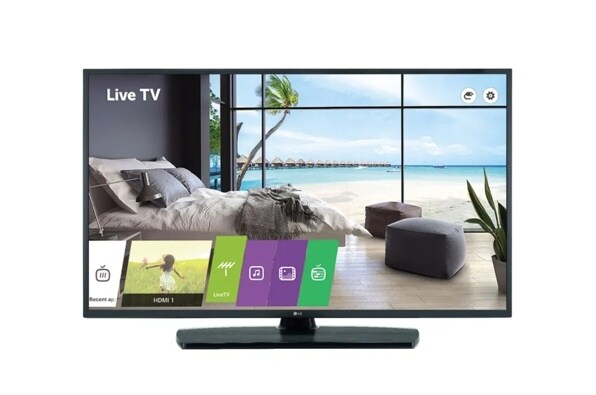

55” UT560H9 Series UHD Pro:Centric® TV for Hospitality with Pro:Idiom®, Pro:Centric® Direct, EZ-Manager, & USB Data Cloning
DISCONTINUED
55UT560H
55” UT560H9 Series UHD Pro:Centric® TV for Hospitality with Pro:Idiom®, Pro:Centric® Direct, EZ-Manager, & USB Data Cloning
Key Features
All Specs
- 4K UHD (3,840 x 2,160) Resolution
- Pro:Centric® Direct content management system with easy editing tools
- Pro:Idiom® digital rights management to unlock access to premium content
- USB Data Cloning for fast & easy set-up of TVs
- EZ-Manager to automatically choose TV settings
- Life span 30,000 hours
Compare
Specs & Resources
BROADCASTING
MPEG-2 / MPEG-4 H.264 Decoding
Yes
Analog (NTSC / SECAM / PAL)
NTSC
Closed Caption
Yes
Digital (Terrestrial, Cable, Satellite)
ATSC, Clear QAM
DISPLAY
Resolution
3,840 x 2,160 (UHD)
Diagonal Size
55"
Brightness
400nits
Backlight Unit Type
Direct
TruMotion / Refresh Rate
T120 / 60 Hz
Life Span
30,000 hours
HDR 10 Pro
Yes
HDR HLG
Yes
INTERFACES
HDMI In
3 (2.0)
USB
1 (2.0)
RF In
Yes
LAN (RJ45)
1 (Pro:Centric)
Digital Audio Out
Optical
Service Only
3.5mm Stereo Jack
MPI Port (RJ12)
Yes
RS-232C (Control & Service)
D-Sub 9 pin
Audio Line Out
3.5mm Stereo Jack
AV In (Adaptor included)
3.5mm TRRS Jack
OTHER FEATURES
SI Compatible
Yes (MPI, RS-232C)
Multi-code IR
Yes
Welcome Screen (Boot Logo)
Yes
Instant On
Yes
RJP (Remote Jack Pack) Compatibility
Yes (HDMI CEC)
Auto Off / Sleep Timer
Yes/Yes
Smart Energy Saving
Yes
Motion Eye Care
Yes
Clock and Alarm
Yes
EZ-Manager
Yes
USB Cloning
Yes
Update Time
Yes
Hotel Mode / PDM / Installer Menu
Installer Menu
One Channel Map
LCM
b-LAN Embedded
No
IR Signal from Receiver (Logic Low Pulses)
MPI
IR Signal from Receiver (Logic High Pulses)
RS-232C
Simplink (HDMI-CEC, plus HTNG)
Yes (1.4)
Audio Line Out (Stereo)
Yes
ACCESSORIES
Power Cable
Yes (1.8m, Angle Type)
Remote Type
S-Con
Chromecast Anti-theft Cover
Yes (Option)
AV In Adaptor Cable
3.5 mm TRRS Plug to 3 RCA Jacks
HOSPITALITY
Data Streaming (IP & RF)
Yes
HCAP (GEM / FLASH / HTML)
GEM/HTML5
IP Return Path
Yes
Multicast / Unicast (Pro:Centric Data Only)
Yes
Pro:Centric Direct (Version)
Yes (2.5)
Pro:Centric Application (Version)
Yes (PCA 3.8)
Pro:Centric Server
PCS400R
Pro:Idiom DRM
SW Type/Mobile/Lite
WARRANTY & OTHER
Standards
UL
EMC Certification
FCC
Warranty
Two-Year Limited Warranty
UPC
7 19192 63084 0
AUDIO
Speaker System
2.0ch
LG Sound Sync
Yes
Speaker (Sound Output)
10W + 10W
POWER
Power Supply (Voltage, Hz)
120V, 50/60 Hz
Power Consumption (Max)
160W
Power Consumption (Typical)
144W
Power Consumption (Standby)
Less than 0.5W
MECHANICALS
Front Color
Ceramic Black
Kensington Lock
No
Shipping Weight
50.5 lbs/22.9kg
VESA Compatible
300 x 300
Weight without Stand
30.9 lbs/14.0kg
Weight with Stand
37.9 lbs/17.2kg
Dimensions with Stand
49.0" x 30.7" x 11.9"/1,244 x 780 x 303 mm
Lock Down Plate
No
Stand Type
1 Pole Swivel
Shipping Dimensions
55.5" x 33.9" x 8.1"/1,410 x 860 x 207 mm
Dimensions without Stand (Depth to Back VESA Location)
49.0" x 28.6" x 3.4"/1,244 x 726 x 87 mm
Dimensions without Stand (Depth to Back of Speaker)
49.0" x 28.6" x 3.4"/1,244 x 726 x 87 mm
Credenza / Security Aperture
No
SMART FEATURES
Smart Home (Launcher Bar)
Yes
All image simulations are for illustration purposes only.
