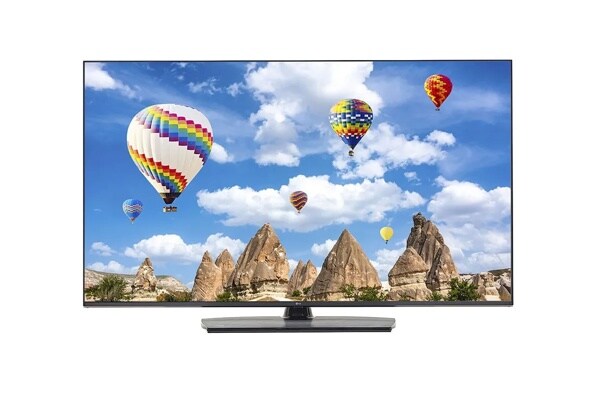

55" UN570H Series UHD Pro:Centric® Direct TV for Hospitality with Embedded b-LAN™, Multi-code IR & Pro:Idiom® (DRM).

55UN570H0UA
55UN570H0UA
55UN570H0UA
55UN570H0UA
55UN570H0UA
55UN570H0UA

55" UN570H Series UHD Pro:Centric® Direct TV for Hospitality with Embedded b-LAN™, Multi-code IR & Pro:Idiom® (DRM).

Key Features
All Specs
  • Pro:Centric® Direct hotel content management solution
  • Pro:Idiom® Digital Rights Management (DRM) technology
  • Ez-Manager
  • b-LAN Embedded

Compare

Specs & Resources

Collapse All

Wake on RF
Yes
webRTC (Real Time Communication)
No
Video Tag
No
Wake-on-LAN (WOL)
No
SNMP
No
Home (Launcher Bar)
Yes
Instant On
Yes
USB Auto Playback+
No
Welcome Screen (Splash Image)
No
EzManager
No
Pillow Speaker Compatibility
N/A
Motion Eye Care
No
One Channel Map
No
Welcome Video
No
Insert Image
Yes
HTNG-CEC
No
RJP (Remote Jack Pack) Compatibility
NO
USB Auto Playback
No
Lock Mode
No
Installer Menu
No
Public Display Mode
No
Hotel Mode
No
Port Block
Yes
Power Consumption (Max.)
170W
Power Supply
100-240 Vac, 50/60 Hz
Optional DC Power Supply Input (AM-PW188A)
N/A
Power over Coax (PoC)
N/A
Optional DC Power Supply Output (AM-PW188A)
N/A
Power Consumption (Standby)
Not Available
Power Consumption (Typ.)
140 W
Color
Dark Charcoal Gray
Back Color
Not Available
Bezel Width (On Bezel)
L/R/U: 12.8 mm, B: 19.9 mm
Bezel Width (Off Bezel)
L/R/U: 6.9 mm, B: 18.4 mm
Stand Type
1 pole - Swivel
Weight
30.9 lbs / 14.0 kg
Weight with Stand
37.9 lbs / 17.2 kg
Shipping Weight
49.2 lbs / 22.3 kg
Dimensions (W x H x D)
48.6 x 28.1 x 2.3 in / 1235 × 715 × 57.5 mm
Dimension with Stand (W x H x D)
48.6 x 30.6 x 11.9 in / 1235 × 777 × 303 mm
Dimensions with Top Mount (W x H x D)
N/A
Shipping Dimensions (W x H x D)
53.5 x 33.9 x 8.1 in / 1360 × 860 × 207 mm
Credenza / Security Aperture
Yes
Kensington Lock
Yes
Lock Down Plate
Yes
VESA™ Standard Mount Interface
300 x 300 mm
Built-in Speakers
Yes (x2) 10W
AI Acoustic Tuning
No
AI Sound
No
LG Sound Sync
No
Sound Mode
No
One Touch Sound Tuning
No
Clear Voice
No
Digital (Terrestrial, Cable, Satellite)
ATSC, Clear QAM
Analog (NTSC/SECAM/PAL)
NTSC
Global IPTV Support (IPStreaming)
No
MPEG-2 / MPEG-4 H.264 Decoding
No
Closed Caption
Not Available
IR Signal from Receiver (Logic High Pulses)
No
Update Time
No
VLAN ID
No
Embedded b-LAN
Yes
Beacon
No
SI Compatible (TVLink Interactive)
No
NTP Sync Timer
No
Multi-code IR
No
Voice Recognition (Standalone / Solution)
No
V-Lan Tag
No
Mobile Connection Overlay
No
Diagnostics
Yes (RF Remote)
LG TV Plus App
No
Energy Saving Mode
Yes
External Control Interface
No
IoT
No
IR Signal from Receiver (Logic Low Pulses)
No
XD Engine
No
USB Data Cloning
No
Picture Mode
Not Available
Operating System (OS)
No
Main Processor (SoC)
No
HDMI In
Yes (x2) v2.0
HDMI-ARC
Yes (x1) v2.0
RF In (Antenna / Cable)
Yes (x1)
IR In (3.5 mm)
No
RS-232C (3.5 mm)
Yes (x1)
RS-232C (D-sub 9-pin)
No
RJ45 (LAN)
No
RJ45 (AUX LAN)
No
RJ45 (Ethernet)
Yes (x1)
MPI (RJ12)
Yes (x1)
ECI (RJ12)
No
Service Only (3.5 mm)
Yes (x1)
USB Type-A In
Yes (x1) v2.0
MPI (RJ45)
No
Simplink (HDMI-CEC)
Yes (x1) HDMI 1.4
Simplink (HDMI-CEC) plus CEC-HTNG
No
AV In (3.5 mm)
Yes (x1)
DC In
No
Pillow Speaker Interface (6 Pin)
No
TV Link CFG (3.5 mm)
N/A
Audio Out (3.5 mm)
Yes (x1)
Digital Audio Out (Optical)
Yes (x1)
IR Out
No
Headphone Out (3.5 mm)
No
Built-in Wi-Fi
No
Port Location
Rear, Side
RF / AC In (Power Over Coax)
No
Debug (3.5 mm)
No
Speaker Out / Line Out
No
Assembled In
Not Available
Warranty
3 Year Limited
Onscreen Display Languages
Not Available
UPC
1 95174 05769 8
Basic Accessories (included)
Not Available
UL Certification
No
NOM
No
CEC (Regulatory)
No
RoHS (Environmental)
No
FCC (Regulatory)
Yes
ISO 22196 (Antimicrobial)
No
NRCan
No
ETL
No
Conformal Coating
No
Smart Home (Launcher Bar)
No
Gallery Mode
No
Quick Access
Yes
Web Browser
No
Pre-loaded Apps
No
Magic Remote Compatibility
No
SW Clock (World Clock / Alarm)
No
Soft AP
No
Moving Picture Playback (SDD/Plus HD)
No
Auto Off / Sleep Timer
Yes
Bluetooth Audio Playback
No
Bluetooth Sound Sync (Audio Playback)
No
Screen Share (Miracast)
No
Smart Share
No
Multi View
N/A
Home Office
N/A
SDP Server Compatibility
No
DIAL
No
Pro:Centric® Smart CMS
No
Pro:Centric® Direct
Yes (v 5.5)
Pro:Centric® V
No
Pro:Idiom® DRM (S/W, Mobile, Lite)
No
Pro:Idiom® Media DRM
Yes
Pro:Centric® Data Streaming (IP)
No
Pro:Centric® Data Streaming (RF)
No
Pro:Centric Server
Not Available
Pro:Centric® IP Return Path
No
HCAP (GEM / FLASH / HTML)
No
Service Carousel (TLX, Firmware)
No
Mutlicast Ready
No
Unicast Ready
No
Quick Menu Version
N/A
LG Server Compatibility
Not Available
Screen Size (Inches)
55"
Panel Technology
Not Available
Nano Cell Technology
No
Back Light Type
Not Available
Touchscreen (P-Cap)
No
Aspect Ratio
Not Available
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60 Hz
TruMotion Refresh Rate
Not Available
Brightness (Typ.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
Not Available
Dynamic Contrast Ratio
Not Available
Viewing Angle (H x V)
Not Available
Response Time (G to G)
Not Available
AI Picture Pro
No
Dynamic Vivid
No
Lifetime
Not Available
HDR10 Pro
Yes
HDR HLG
Yes
Game Optimizer
Yes
