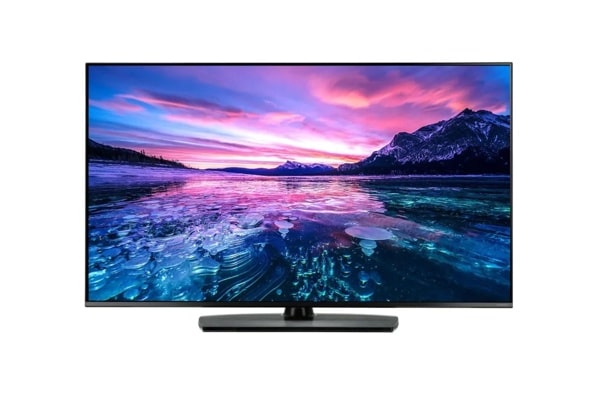

49” US770H Series 4K UHD Nano IPS Pro:Centric® Smart TV for Hospitality with webOS™ 5.0, Embedded b-LAN™, Soft AP and Narrow Bezel

Name: 49” US770H Series 4K UHD Nano IPS Pro:Centric® Smart TV for Hospitality with webOS™ 5.0, Embedded b-LAN™, Soft AP and Narrow Bezel
Brand: LG Electronics
SKU: 49US770H0UA
Availability: Discontinued

DISCONTINUED

49US770H0UA

49” US770H Series 4K UHD Nano IPS Pro:Centric® Smart TV for Hospitality with webOS™ 5.0, Embedded b-LAN™, Soft AP and Narrow Bezel

Key Features

All Specs

Nano IPS
4K UHD (3,840 x 2,160)
webOS™ 5.0
Pro:Centric® Hotel Management Solution
WiFi/Bluetooth Sound Sync
Embedded b-LAN™

Compare

Specs & Resources

Collapse All

BROADCASTING

MPEG-2 / MPEG-4 H.264 Decoding

Yes

Analog (NTSC / SECAM / PAL)

NTSC

Closed Caption

Yes

Digital (Terrestrial, Cable, Satellite)

ATSC (Clear QAM)

DISPLAY

Resolution

3,840 x 2,160 (UHD)

Response Time (G to G)

8 ms

Diagonal Size

49"

Dynamic Contrast Ratio

1,000,000:1

Brightness

400nits

Backlight Unit Type

Edge

Refresh Rate

60 Hz

Life Span

30,000 hours

Display Type

Nano IPS

INTERFACES

HDMI In

3 (2.0)

Optical Digital Audio Out

Service Only

3.5mm Stereo Jack

MPI Port (RJ12)

Antenna / Cable In (RF)

1 (Dual b-LAN)

USB In

2 (2.0)

RS-232C (Control & Service)

D-Sub 9 pin

RJ45

2 Ethernet, Aux

External Speaker Out

3.5mm Stereo Jack

TV Link Configuration (for b-LAN)

3.5mm Stereo Jack

OTHER FEATURES

First Use Wizard

Yes

USB Data Cloning

Yes

WOL

Yes

SNMP

Yes

SI Compatible

Yes (MPI, RS-232C)

Simplink (HDMI-CEC) plus CEC-HTNG

Yes (1.4)

IR Out

Yes (MPI, RS-232C)

Multi-code IR

Yes

Installer Menu

Yes

Welcome Screen (Boot Logo)

Yes

Instant On

Yes

RJP (Remote Jack Pack) Compatibility

HDMI (CEC)

Auto Off / Sleep Timer

Yes/Yes

Embedded b-LAN

Yes

Wake on RF

Yes

Diagnostics (IP Remote)

Yes

Insert Image

Yes

One Channel Map (LCM)

Yes

V-Lan Tag

Yes

HOSPITALITY

Pro:Centric Data Streaming (IP & RF)

Yes

Pro:Centric IP Return Path

Yes

Pro:Centric webRTC (Real Time Communication)

Yes with Java script

Pro:Centric Direct (HTML)

Yes

Pro:Centric Application (Java)

Yes

HCAP (GEM / FLASH / HTML)

GEM/HTML5

Multicast / Unicast ready

Yes/Yes

Quick Menu Version

4.0

Pro:Idiom DRM (S/W, Mobile, Lite)

Yes

WARRANTY & OTHER

Standards

EMC Certification

FCC

Warranty

Two-Year Limited Warranty

Remote type

S-Con/MMR (Optional)

Power Cable

1.8m, Angle Type

AUDIO

Speaker System

2.0 ch

One Touch Sound Tuning

Yes

LG Sound Sync

Optical/Bluetooth Wireless

Speaker (Sound Output)

10 W + 10 W

AI Sound

Yes

MECHANICALS

Front Color

Dark Meteo Titan (Nano Bezel) (Cinema Screen)

Shipping Weight

44.1 lbs/20.0kg

Shipping Dimensions (W x H x D)

46.9" x 29.9" x 7.5"/1,192 x 760 x 190 mm

VESA Compatible

200 x 200

Weight without Stand

30.9 lbs/14.0kg

Weight with Stand

37.9 lbs/17.2kg

Dimensions without Stand (W x H x D)

43.1" x 25.2" x 2.5"/1,096 x 640 x 63.6 mm

Dimensions with Stand (W x H x D)

43.1" x 27.4" x 11.9"/1,096 x 697 x 303 mm

Lock Down Plate

Yes

Stand Type

1 Pole Swivel Stand

Bezel Width (L / R / T / B): On Bezel

11.1 / 11.1 / 11.1 / 19.8 mm

Bezel Width (L / R / T / B): Off Bezel

4.8 / 4.8 / 4.8 / 16.6 mm

Max Power Consumption

147 W

Typical Power Consumption

122 W

Standby Power Consumption

Less than 0.5W

SMART FEATURES

Soft AP

Yes

Bluetooth Sound Sync

Yes

Web Browser

Yes

DIAL

Yes

Smart Share (DLNA)

Yes

Wi-Fi

Yes

Screen Share (Miracast / WiDi)

Yes

Beacon

Yes

Mobile Connection Overlay

Yes

LG Connect (LG TV Plus App)

Yes

Gallery Mode

Yes

CP App

Yes

Magic Motion Remote (MMR) Compatibility

Yes

SW Clock (World Clock / Alarm)

Yes

VIDEO

UHD Contents Streaming Support

USB/IP/HDMI/RF

Tru 4K Upscaler

Yes

HDR_HDR 10 Pro

Yes

HDR_HLG

Yes

BROADCASTING

MPEG-2 / MPEG-4 H.264 Decoding

Yes

Analog (NTSC / SECAM / PAL)

NTSC

Closed Caption

Yes

Digital (Terrestrial, Cable, Satellite)

ATSC (Clear QAM)

DISPLAY

Resolution

3,840 x 2,160 (UHD)

Response Time (G to G)

8 ms

Diagonal Size

49"

Dynamic Contrast Ratio

1,000,000:1

Brightness

400nits

Backlight Unit Type

Edge

Refresh Rate

60 Hz

Life Span

30,000 hours

Display Type

Nano IPS

INTERFACES

HDMI In

3 (2.0)

Optical Digital Audio Out

Service Only

3.5mm Stereo Jack

MPI Port (RJ12)

Antenna / Cable In (RF)

1 (Dual b-LAN)

USB In

2 (2.0)

RS-232C (Control & Service)

D-Sub 9 pin

RJ45

2 Ethernet, Aux

External Speaker Out

3.5mm Stereo Jack

TV Link Configuration (for b-LAN)

3.5mm Stereo Jack

OTHER FEATURES

First Use Wizard

Yes

USB Data Cloning

Yes

WOL

Yes

SNMP

Yes

SI Compatible

Yes (MPI, RS-232C)

Simplink (HDMI-CEC) plus CEC-HTNG

Yes (1.4)

IR Out

Yes (MPI, RS-232C)

Multi-code IR

Yes

Installer Menu

Yes

Welcome Screen (Boot Logo)

Yes

Instant On

Yes

RJP (Remote Jack Pack) Compatibility

HDMI (CEC)

Auto Off / Sleep Timer

Yes/Yes

Embedded b-LAN

Yes

Wake on RF

Yes

Diagnostics (IP Remote)

Yes

Insert Image

Yes

One Channel Map (LCM)

Yes

V-Lan Tag

Yes

HOSPITALITY

Pro:Centric Data Streaming (IP & RF)

Yes

Pro:Centric IP Return Path

Yes

Pro:Centric webRTC (Real Time Communication)

Yes with Java script

Pro:Centric Direct (HTML)

Yes

Pro:Centric Application (Java)

Yes

HCAP (GEM / FLASH / HTML)

GEM/HTML5

Multicast / Unicast ready

Yes/Yes

Quick Menu Version

4.0

Pro:Idiom DRM (S/W, Mobile, Lite)

Yes

WARRANTY & OTHER

Standards

EMC Certification

FCC

Warranty

Two-Year Limited Warranty

Remote type

S-Con/MMR (Optional)

Power Cable

1.8m, Angle Type

AUDIO

Speaker System

2.0 ch

One Touch Sound Tuning

Yes

LG Sound Sync

Optical/Bluetooth Wireless

Speaker (Sound Output)

10 W + 10 W

AI Sound

Yes

MECHANICALS

Front Color

Dark Meteo Titan (Nano Bezel) (Cinema Screen)

Shipping Weight

44.1 lbs/20.0kg

Shipping Dimensions (W x H x D)

46.9" x 29.9" x 7.5"/1,192 x 760 x 190 mm

VESA Compatible

200 x 200

Weight without Stand

30.9 lbs/14.0kg

Weight with Stand

37.9 lbs/17.2kg

Dimensions without Stand (W x H x D)

43.1" x 25.2" x 2.5"/1,096 x 640 x 63.6 mm

Dimensions with Stand (W x H x D)

43.1" x 27.4" x 11.9"/1,096 x 697 x 303 mm

Lock Down Plate

Yes

Stand Type

1 Pole Swivel Stand

Bezel Width (L / R / T / B): On Bezel

11.1 / 11.1 / 11.1 / 19.8 mm

Bezel Width (L / R / T / B): Off Bezel

4.8 / 4.8 / 4.8 / 16.6 mm

Max Power Consumption

147 W

Typical Power Consumption

122 W

Standby Power Consumption

Less than 0.5W

SMART FEATURES

Soft AP

Yes

Bluetooth Sound Sync

Yes

Web Browser

Yes

DIAL

Yes

Smart Share (DLNA)

Yes

Wi-Fi

Yes

Screen Share (Miracast / WiDi)

Yes

Beacon

Yes

Mobile Connection Overlay

Yes

LG Connect (LG TV Plus App)

Yes

Gallery Mode

Yes

CP App

Yes

Magic Motion Remote (MMR) Compatibility

Yes

SW Clock (World Clock / Alarm)

Yes

VIDEO

UHD Contents Streaming Support

USB/IP/HDMI/RF

Tru 4K Upscaler

Yes

HDR_HDR 10 Pro

Yes

HDR_HLG

Yes
