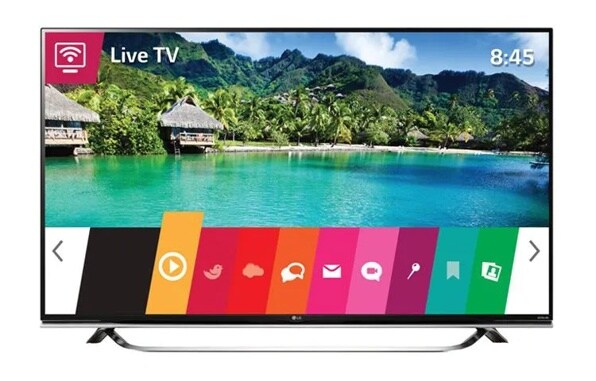

49” class (48.5" diagonal) UX970H Premium Ultra High Definition Smart TV with Pro:Centric® and b -LAN™

Name: 49” class (48.5" diagonal) UX970H Premium Ultra High Definition Smart TV with Pro:Centric® and b -LAN™
Brand: LG Electronics
SKU: 49UX970H
Availability: Discontinued

DISCONTINUED

49UX970H

49” class (48.5" diagonal) UX970H Premium Ultra High Definition Smart TV with Pro:Centric® and b -LAN™

Key Features

All Specs

Pro:Centric® Smart SDK
Prime Design
Ultra HD TV
Advanced Connectivity

Compare

Specs & Resources

Collapse All

REAR

RF In

Digital Audio Out

1 (Optical)

LAN Port

AV In

1 (Sharing with Component in)

PC Audio Input

1 (Sharing with Component Audio in)

TV link Configuration (Phone Jack Type)

PTC Configuration (phone jack type)

USB 2.0

1(2.0)

External Speaker Out (3.5mm Phone Jack)

RJ45 (RJP interface)

RS-232C(D-Sub 9pin)

1 (Phone Jack)

MPI Jack (RJ-12)

Component in (Y,Pb,Pr) + Audio

HDMI/HDCP Input

1 (2.0)

PANEL

Viewing Angle Degree

178x178(TBD)

Backlight Type

Edge

Resolution

3840 x 2160 (UHD)

Frame Rate

T240Hz

Contrast Ratio

1,000,000:1(TBD)

Static (Panel) Contrast Ratio

1,200 :1(TBD)

Screen Size

49" class (48.5” diagonal)

Response Time (G to G)

6 (G to G)

TOOL DESCRIPTION

Flame Retardent

Yes

VESA Compatible

300mm x 300mm

Bezel Width (Left/Right, Upper, Bottom): On bezel

8.8mm, 8.8mm, 33.2mm

Bezel Width (Left/Riight, Upper, Bottom): Off Bezel

1mm, 1mm, 30.2mm

OTHER

UPC

7 19192 91820 7

Warranty

2-Year Limited Warranty Parts/Labor/Backlight/Extended warranty options are also available

Audio

Clear Voice

Yes

Sound Mode

6 modes (Standard, News, Music, Cinema, Sport, Game)

Sound Mode

Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)

Speaker System

2.1 ch

Speaker System

2.0 ch

Optical Sound Sync

Yes

Sound Optimizer

3 modes(Off, Wall-Mount Type, Stand Type)

Sound Optimizer

Yes, 3 Modes (Normal, Wall-Mount Type, Stand Type)

Wireless Sound Sync

Ready

Sound Expansion

Yes

Audio Output

10W + 10W

Audio Output

12W + 12W

Smart Sound Mode

Yes

POWER

Voltage, Hz

100V - 240V, 50/60 Hz

Stand-by

0.5W

Typical (Watts)

80.9W

DIMENSIONS

Weight (with stand)

72.3lbs

Weight (W/O Stand/Packing,kg)

87.5lbs

WxHxD (Packing, mm)

63.2”x37”x6”

WxHxD (with stand, mm)

57.2”x35.5”x10.7”

Weight (Packing)

69lbs

WxHxD (w/o stand, mm)

57.2”x33.5”x2”

SPECIAL FEATURES

USB Cloning

Yes

Smart Energy Saving

Yes

HDMI-CEC

Yes

HTNG-CEC

Yes

RF(1/2Tuner)

Yes (2 Tuner)

Pro:Centric Application

Yes (PCA 3.0)

Multi IR Code

Yes

IR Out

Yes (MPI Jack)

External Speaker Out

Yes(Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8)

Auto Configuration

Yes (EzManager)

b-Lan

Yes

Remote Diagnosis

Yes

Welcome Screen (Splash Image)

Yes

Audio Codec

AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM, DTS

Multicast/Unicast ready

Yes

Pro:Idiom

Yes

SI Compatible (TVLink Protocol)

Yes (MPI protocol)

Auto Off / Auto Sleep

Yes

RJP Compatibility

Teleadapt (RJ45, HDMI CEC), G-Link(HDMI-CEC)

RJP Interface

Yes (RJ45, HDMI)

One Channel Map/Logical Channel Map

Yes

Instant ON

Yes

Commercial Smart UX (Smart Home / Input)

yes

WiDi (PC to TV)

Yes

WiFi Direct

Yes

HCAP Input device driver support

Yes(USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

IP Streaming

Yes(RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

Web Browser

Yes

APP. (P:C Smart)

Yes (Commercial CP/Apps)

Smart Share

Yes

DLNA(Movie/Photo/Music)

Yes (Smart Share)

Moving Picture Playback(SD/HD/Plus HD)

Divx HD

Commercial Smart Home

Yes

Remote App Compatibility

Yes

Pro:Centric

Yes (Smart)

Hotel Mode / PDM / Installer Menu

Yes

Yes (Except for 79")

Bluetooth Sound Sync

Yes

Alljoyn

Yes (TBD)

Soft AP

Yes

Hybrid Streaming (IP & RF)MultiCast/HTTP Data Carousel

Yes

Wi-Fi

Yes (Built-in type)

Motion eye care

Yes

HCAP (GEM/FLASH/HTML) Service Carousel (TLX)

GEM / Flash / HTML

DIAL

Yes

Miracast (Mobile to TV)

Yes

USB

Yes (USB 2.0)


JPEG

3D Picture Mode

Yes

2D to 3D Convert Source

Yes

Depth Control

0~+20 (default : 10)

3D Viewpoint Control

-10~+10 (default : 0)

3D Image Correction

Yes

3D Type

FPR (SG/FPR/AR/GPR/Non-Glass)

3D Depth Control

Yes

Supporting Format

S/S, T/B, C/B, F/S

3D to 2D Convert Source

Yes

3D format

Yes

Viewpoint Control

-10~+10 (default : 0)

2D to 3D Mode

Yes

Format Auto Detection

Yes

Video

Aspect Ratio

Yes 6 modes(Standard, News, Music, Cinema, Sport, Game)

Triple XD Engine

Yes

Dynamic Color Enhancer

Yes

Real Cinema 24p (3:3 pull down)

Yes

Tru 4K Upsacaler

Yes

UHD Stream

USB/IP/HDMI

Sound Optimizer

Yes 3 modes(Normal, Wall-Mount Type, Stand Type)

CERTIFICATION

Safety / EMC / ETC.

UL / FCC / RoHS, cUL, NOM

BROADCASTING SYSTEM

Terrestrial

VSB

Cable

Clear QAM

Analog/Digitial

Yes (NTSC) / Yes (ATSC)

SIDE

HDMI In

2 (2.0)

USB (2.0)

1 (3.0)

REAR

RF In

Digital Audio Out

1 (Optical)

LAN Port

AV In

1 (Sharing with Component in)

PC Audio Input

1 (Sharing with Component Audio in)

TV link Configuration (Phone Jack Type)

PTC Configuration (phone jack type)

USB 2.0

1(2.0)

External Speaker Out (3.5mm Phone Jack)

RJ45 (RJP interface)

RS-232C(D-Sub 9pin)

1 (Phone Jack)

MPI Jack (RJ-12)

Component in (Y,Pb,Pr) + Audio

HDMI/HDCP Input

1 (2.0)

PANEL

Viewing Angle Degree

178x178(TBD)

Backlight Type

Edge

Resolution

3840 x 2160 (UHD)

Frame Rate

T240Hz

Contrast Ratio

1,000,000:1(TBD)

Static (Panel) Contrast Ratio

1,200 :1(TBD)

Screen Size

49" class (48.5” diagonal)

Response Time (G to G)

6 (G to G)

TOOL DESCRIPTION

Flame Retardent

Yes

VESA Compatible

300mm x 300mm

Bezel Width (Left/Right, Upper, Bottom): On bezel

8.8mm, 8.8mm, 33.2mm

Bezel Width (Left/Riight, Upper, Bottom): Off Bezel

1mm, 1mm, 30.2mm

OTHER

UPC

7 19192 91820 7

Warranty

2-Year Limited Warranty Parts/Labor/Backlight/Extended warranty options are also available

Audio

Clear Voice

Yes

Sound Mode

6 modes (Standard, News, Music, Cinema, Sport, Game)

Sound Mode

Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)

Speaker System

2.1 ch

Speaker System

2.0 ch

Optical Sound Sync

Yes

Sound Optimizer

3 modes(Off, Wall-Mount Type, Stand Type)

Sound Optimizer

Yes, 3 Modes (Normal, Wall-Mount Type, Stand Type)

Wireless Sound Sync

Ready

Sound Expansion

Yes

Audio Output

10W + 10W

Audio Output

12W + 12W

Smart Sound Mode

Yes

POWER

Voltage, Hz

100V - 240V, 50/60 Hz

Stand-by

0.5W

Typical (Watts)

80.9W

DIMENSIONS

Weight (with stand)

72.3lbs

Weight (W/O Stand/Packing,kg)

87.5lbs

WxHxD (Packing, mm)

63.2”x37”x6”

WxHxD (with stand, mm)

57.2”x35.5”x10.7”

Weight (Packing)

69lbs

WxHxD (w/o stand, mm)

57.2”x33.5”x2”

SPECIAL FEATURES

USB Cloning

Yes

Smart Energy Saving

Yes

HDMI-CEC

Yes

HTNG-CEC

Yes

RF(1/2Tuner)

Yes (2 Tuner)

Pro:Centric Application

Yes (PCA 3.0)

Multi IR Code

Yes

IR Out

Yes (MPI Jack)

External Speaker Out

Yes(Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8)

Auto Configuration

Yes (EzManager)

b-Lan

Yes

Remote Diagnosis

Yes

Welcome Screen (Splash Image)

Yes

Audio Codec

AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM, DTS

Multicast/Unicast ready

Yes

Pro:Idiom

Yes

SI Compatible (TVLink Protocol)

Yes (MPI protocol)

Auto Off / Auto Sleep

Yes

RJP Compatibility

Teleadapt (RJ45, HDMI CEC), G-Link(HDMI-CEC)

RJP Interface

Yes (RJ45, HDMI)

One Channel Map/Logical Channel Map

Yes

Instant ON

Yes

Commercial Smart UX (Smart Home / Input)

yes

WiDi (PC to TV)

Yes

WiFi Direct

Yes

HCAP Input device driver support

Yes(USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

IP Streaming

Yes(RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

Web Browser

Yes

APP. (P:C Smart)

Yes (Commercial CP/Apps)

Smart Share

Yes

DLNA(Movie/Photo/Music)

Yes (Smart Share)

Moving Picture Playback(SD/HD/Plus HD)

Divx HD

Commercial Smart Home

Yes

Remote App Compatibility

Yes

Pro:Centric

Yes (Smart)

Hotel Mode / PDM / Installer Menu

Yes

Yes (Except for 79")

Bluetooth Sound Sync

Yes

Alljoyn

Yes (TBD)

Soft AP

Yes

Hybrid Streaming (IP & RF)MultiCast/HTTP Data Carousel

Yes

Wi-Fi

Yes (Built-in type)

Motion eye care

Yes

HCAP (GEM/FLASH/HTML) Service Carousel (TLX)

GEM / Flash / HTML

DIAL

Yes

Miracast (Mobile to TV)

Yes

USB

Yes (USB 2.0)


JPEG

3D Picture Mode

Yes

2D to 3D Convert Source

Yes

Depth Control

0~+20 (default : 10)

3D Viewpoint Control

-10~+10 (default : 0)

3D Image Correction

Yes

3D Type

FPR (SG/FPR/AR/GPR/Non-Glass)

3D Depth Control

Yes

Supporting Format

S/S, T/B, C/B, F/S

3D to 2D Convert Source

Yes

3D format

Yes

Viewpoint Control

-10~+10 (default : 0)

2D to 3D Mode

Yes

Format Auto Detection

Yes

Video

Aspect Ratio

Yes 6 modes(Standard, News, Music, Cinema, Sport, Game)

Triple XD Engine

Yes

Dynamic Color Enhancer

Yes

Real Cinema 24p (3:3 pull down)

Yes

Tru 4K Upsacaler

Yes

UHD Stream

USB/IP/HDMI

Sound Optimizer

Yes 3 modes(Normal, Wall-Mount Type, Stand Type)

CERTIFICATION

Safety / EMC / ETC.

UL / FCC / RoHS, cUL, NOM

BROADCASTING SYSTEM

Terrestrial

VSB

Cable

Clear QAM

Analog/Digitial

Yes (NTSC) / Yes (ATSC)

SIDE

HDMI In

2 (2.0)

USB (2.0)

1 (3.0)
