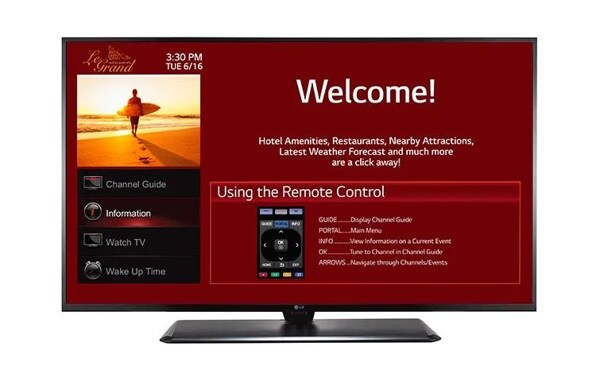

43” Class (42.51" diagonal) Single Tuner with Integrated Pro:Idiom®
DISCONTINUED
43LX560H
43” Class (42.51" diagonal) Single Tuner with Integrated Pro:Idiom®
Key Features
All Specs
- PRO CENTRIC APPLICATION SUPPORT
- FREE INTERACTIVE ELECTRONIC PROGRAM GUIDE SERVICE
- FREE-TO-GUEST COST EFFECTIVE SOLUTION
Compare
Specs & Resources
OTHER
UPC
7 19192 19687 2
Audio
Clear Voice II
Yes
Sound Mode
Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)
Optical Sound Sync
Yes
Sound Optimizer
Yes, 3 Modes (Normal, Wall-Mount Type, Stand Type)
Sound System
2.0 ch
Audio Output
10W + 10W
INTERFACE (REAR)
RF In
1
PTC Configuration
1 (Sharing with RS232C) (phone jack type)
AV In
1
Digital Audio Out
1 (Optical)
HDMI/HDCP Input
1
External Speaker Out
1 Rear (3.5mm phone jack)
PC Audio Input
1 (Sharing with AV In)
HDMI In
Yes
LAN Port
1
MPI Jack (RJ-12)
Yes
MPI Port
1 (RJ12)
RGB In
1 (D-sub 15pin)
RS-232C (D-sub 9pin)
1 (Service Only)
INTERFACE (Side)
HDMI In
2
USB (2.0)
1
BROADCASTING SYSTEM
Analog
NTSC
Digital
ATSC/QAM/VSB
CABINET
Carton
41.3"x25.8"x5.5"
Carton Weight
35.1 lbs
Without Stand
38.3"x22.6"x2.2"
Weight (Without Stand)
22.5 lbs
With Stand
38.3"x24.6"x12.8"
Weight (With Stand)
30.0 lbs
Swivel (Angle)
±20° (Optional ±45°/90°)
VESA™ Mount
200x200mm
PANEL
Frame Rate
60Hz
Dynamic Contrast Ratio
1,000,000:1
Panel Technology
Edge LED
Native Resolution
1920 x 1080 (FHD)
Response Time
8ms
Viewing Angle(HxV)
178° x 178°
Panel Size
43” Class (42.51" diagonal)
Brightness
247cd/m2
Static (Panel) Contrast Ratio
1,200:1
ACCESSORIES
Manual/ESG
Simple book
Power Cord
5.9' Angel Type
POWER
Voltage
110 ~ 240V, 50/60Hz
Watts (typical)
40W
Stand-by (Watts)
0.5W↓
SPECIAL FEATURES
USB Cloning
Yes
Smart Energy Saving
Yes
HDMI-CEC
Yes (without ARC)
HTNG-CEC
Yes
Welcome Screen
Yes (Splash Image)
Logical Channel Map
Yes
Pro:Centric Application
Yes (PCA3.0)
Pro:Centric
Yes (Single Tuner)
Multi IR Code
Yes
IR Out
Yes (MPI Jack)
Kensington Lock
Yes (Stand)
External Speaker Out
Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8)
Commercial Grade Stand
Yes
Audio Codec
AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
Pro:Idiom
Yes
SI Compatible (TVLink Protocol)
Yes (MPI protocol)
Moving Picture Playback (SD/HD/Plus HD)
Divx HD
Lock Down Plate
Yes
Instant ON
Yes
Multicast/ Unicast ready
Yes (P:C Server)
RF
Yes (1 Tuner)
Auto Off /Auto Sleep
Yes
USB 2.0
Yes
Credenza/Screw Security Hole
Yes
Motion Eye Care
Yes
USB Picture
JPEG
Installer menu
Yes
HCAP
GEM/FLASH
Self Diagnostics
Yes (RF/USB)
REQUIRED LISTINGS
Safety
UL, FCC
Environment
RoHS
Etc.
cUL, NOM
Video
Aspect Ratio
Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)
Triple XD Engine
Yes
Dynamic Color Enhancer
Yes
Real Cinema
24p (3:3 pull down)
CERTIFICATION
EPEAT Silver
Yes
