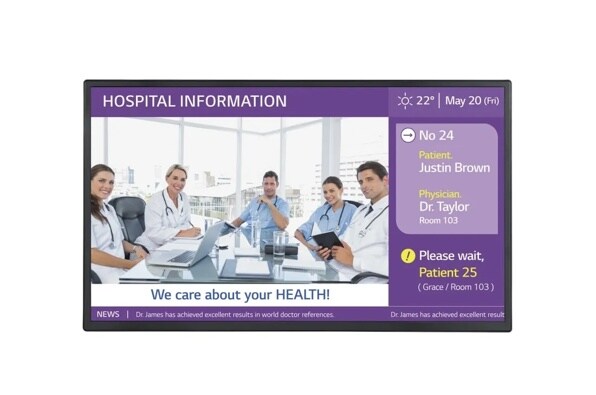

32" ML5K Series FHD Healthcare Digital Signage
$950.00
32ML5K-B
32" ML5K Series FHD Healthcare Digital Signage
$950.00
Key Features
All Specs
- 400 nit Brightness and 1% Haze Surface Treatment for Clear Viewing Indoors
- FHD Resolution (1920x1080) Creates Crisps, Clear Images for Dr. & Patients
- LG WebOS 6.0 Platform
- Supports Crestron Connected
- Portrait & Landscape
- Up to 50,000 hours lifetime 24/7
Compare
Features and Specs

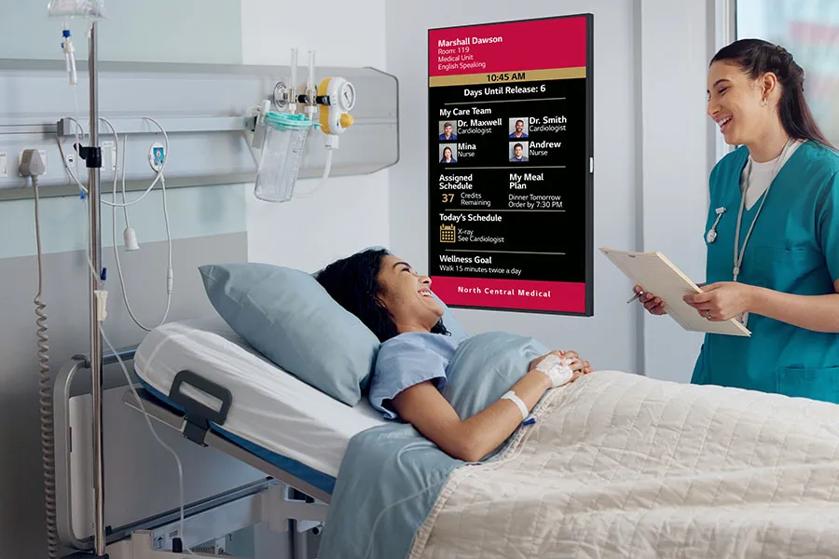

High Haze Healthcare Signage
Confidently share information with your patients on this high haze signage for hospitals and healthcare facilities.
High-Performance with webOS™
LG webOS™ platform enhances user convenience with intuitive GUI and simple app development tools.

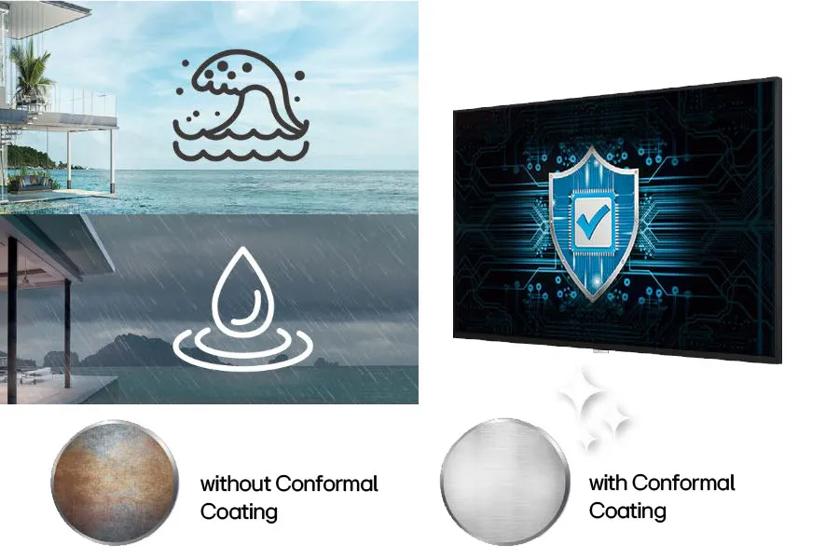

Conformal Coating
In various places the ML5K series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting ML5K series from salt, dust, iron powder, humidity, etc.
Compatible with AV Control System
The ML5K series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (4)
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
75W
Power Supply
120 Vac, 50/60 Hz (41.1 - 57 V for PoE++)
Power Consumption (Power Off)
1W
Power Type
Built-in Power / PoE++
PoE Type
PoE++ : Type 3 802.3bt
PoE Power Class
Class 6
Power Consumption (Display Power Management - DPM)
1W
Power Consumption (Smart Energy Saving - 70%)
38.5W
BTU Heat Generation (Max.)
256 BTU
BTU Heat Generation (Typ.)
188 BTU
Power Consumption (Typ.)
55W
Mechanical
Bezel Color
Black
Bezel Width
T/R/L : 13.0 mm, B : 18.0 mm
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Not Available
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
12.6 lbs / 5.7 kg
Weight Signage Box
N/A
Weight with Stand
N/A
Shipping Weight
16.3 lbs / 7.4 kg
Dimensions (W x H x D)
28.7 x 16.9 x 2.2 in / 729.4 x 428.9 x 55.5 mm
Dimensions with Stand (W x H x D)
N/A
Dimensions with Pemnut (W x H x D)
Not Available
Dimensions Signage Box (W x H x D)
No
Shipping Dimensions (W x H x D)
31.9 x 20.1 x 5.2 in / 810.0 x 510.0 x 132.0 mm
Conformal Coating (Power Board)
No
Handle
No
VESA™ Standard Mount Interface
200 x 200 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
Yes
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
Yes (x2) 10W
Hardware Features
Local Key Operation
Yes
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 6.0
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Touch Response Time (G to G)
No
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x2) HDMI1DMI2: HDCP 2.2/1.4
IR In (3.5 mm)
Yes
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
No
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1), PoE++
USB Type-A In
Yes (x2) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
No
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
Mexico
Warranty
5 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
N/A
UPC
1 95174 04427 8
Basic Accessories (included)
Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, 3.5mm to RS232C Adapter
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
No
CE Marking (Regulatory)
No
ISTA6 (Packaging)
No
ERP (Environmental)
No
Energy Star (Environmental)
Yes
Smart Features
Screen Share
Yes
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
Yes
ConnectedCare™
Yes
Panel
Screen Size (Inches)
32"
Panel Technology
IPS
Backlight Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ.)
AC Mode 400 nits PoE Mode 200 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1200:1
Dynamic Contrast Ratio
1000000:1
Color Gamut
BT709 95%
Color Depth (Number of Colors)
16.7 Million Colors, 8 bit
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
9 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
1%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
No
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
All image simulations are for illustration purposes only.
