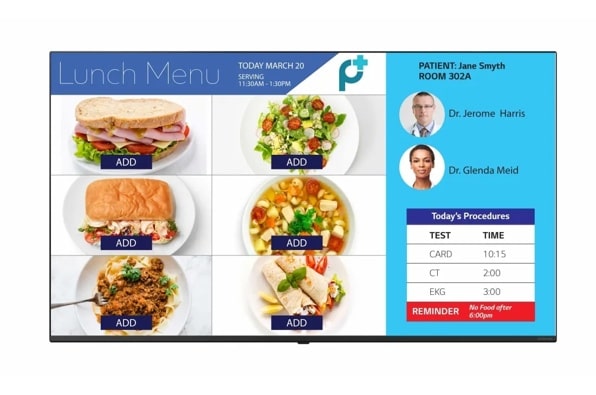

65” US772M Series NanoCell Hospital TV with Pro:Centric® Hospital Management Solution, UL Hospital Grade Listed, & Embedded WebRTC

Name: 65” US772M Series NanoCell Hospital TV with Pro:Centric® Hospital Management Solution, UL Hospital Grade Listed, & Embedded WebRTC
Brand: LG Electronics
SKU: 65US772M0UB
Availability: Discontinued

DISCONTINUED

65US772M0UB

65” US772M Series NanoCell Hospital TV with Pro:Centric® Hospital Management Solution, UL Hospital Grade Listed, & Embedded WebRTC

Key Features

All Specs

NanoCell Display
UL Hospital Grade Listed
Pillow Speaker Input
Pro:Centric Hospital Management Solution

Compare

Specs & Resources

Collapse All

BROADCASTING

Digital

ATSC/Clear QAM/VSB

MPEG-2 / MPEG-4 H.264 Decoding

Yes

Analog (NTSC / SECAM / PAL)

NTSC

Closed Caption

Yes

DISPLAY

Resolution

3,840 x 2,160 (UHD)

Response Time (G to G)

8ms

Diagonal Size

65"

Dynamic Contrast Ratio

1,000,000:1

Brightness

400nits

Backlight Unit Type

Edge

Refresh Rate

60Hz

Life Span

30,000 hours

Display Type

NanoCell

INTERFACES

HDMI In

2 (2.0)

USB

2 (2.0)

RF In

1 (Dual b-LAN)

Service Only

1 (3.5mm Stereo Jack)

RS-232C (Control & Service)

1 (3.5mm Stereo Jack)

RJ45

1 (Ethernet)

Digital Audio Out (Optical)

TV-LINK CFG (for b-LAN)

Game Control / MPI Port

1 (RJ12)

Pillow Speaker Interface (6 Pin DIN)

OTHER FEATURES

First Use Wizard

Yes

USB Data Cloning

Yes

WOL

Yes

SNMP

Yes

SI Compatible

Yes (MPI, RS-232C)

Simplink (HDMI-CEC) plus CEC-HTNG

Yes (1.4)

IR Out

Yes (MPI, RS-232C)

Multi-code IR

Yes

Installer Menu

Yes

Welcome Screen (Boot Logo)

Yes

Instant On

Yes

RJP (Remote Jack Pack) Compatibility

HDMI (CEC)

Auto Off / Sleep Timer

Yes/Yes

Embedded b-LAN

Yes

Update Time

Yes

Diagnostics (IP Remote)

Yes

Insert Image

Yes

One Channel Map (LCM)

Yes

VLAN ID

Yes

Energy Saving Mode

Yes

Hospital Setup Wizard

Yes

EZ-Manager Wizard

Yes

Pillow Speaker

Yes

Port Block (HCAP Only)

Yes

HOSPITALITY

Pro:Centric Data Streaming (IP & RF)

Yes

Pro:Centric IP Return Path

Yes

Pro:Centric webRTC (Real Time Communication)

Yes (Javascript only)

Pro:Centric Direct (HTML)

Yes

Pro:Centric Application (Java)

Yes

HCAP (GEM / FLASH / HTML)

GEM/HTML5

Multicast / Unicast ready

Yes/Yes

Quick Menu Version

4.0

Pro:Idiom (S/W, Mobile, Lite)

Yes

WARRANTY & OTHER

Standards

EMC Certification

FCC

Warranty

Two-Year Limited Warranty

Power Cable

Yes (1.8m, Angle Type)

AUDIO

Speaker System

2.0ch

One Touch Sound Tuning

Yes

LG Sound Sync

Optical/Bluetooth Wireless

Speaker (Sound Output)

10W + 10W

AI Sound

Yes

POWER

Power Supply

120Vac, 50/60 Hz

Max Power Consumption

190W

Typical Power Consumption

160W

Standby Power Consumption

Less than 0.5W

MECHANICALS

Front Color

Ceramic Black

Kensington Lock

Yes

Weight

53.1 lbs/24.1kg

Shipping Weight

68.1 lbs/30.9kg

VESA Compatible

300 x 300

Shipping Dimensions

63" x 38.2" x 6.9"/1,600 x 970 x 175 mm

Bezel Width (L / R / T / B): On Bezel

11.3/11.3/11.3/19.8 mm

Bezel Width (L / R / T / B): Off Bezel

5.0/5.0/5.0/16.6 mm

Dimensions

57.1" x 33.1" x 2.5"/1,451 x 840 x 64 mm

SMART FEATURES

Bluetooth Sound Sync

Yes

Web Browser

Yes

Dial

Yes

Smart Share (DLNA)

Yes

Wi-Fi

Yes

Screen Share (Miracast / WiDi)

Yes

Beacon

Yes

Mobile Connection Overlay

Yes

SoftAP

Yes

LG Connect (LG TV Plus App)

Yes

Gallery Mode

Yes

Magic Motion Remote (MMR) Compatibility

Yes

SW Clock (World Clock / Alarm)

Yes

VIDEO

UHD Contents Streaming Support

USB/IP/HDMI/RF

Tru 4K Upscaler

Yes

HDR_HLG

Yes

HDR_HDR10 Pro

Yes

BROADCASTING

Digital

ATSC/Clear QAM/VSB

MPEG-2 / MPEG-4 H.264 Decoding

Yes

Analog (NTSC / SECAM / PAL)

NTSC

Closed Caption

Yes

DISPLAY

Resolution

3,840 x 2,160 (UHD)

Response Time (G to G)

8ms

Diagonal Size

65"

Dynamic Contrast Ratio

1,000,000:1

Brightness

400nits

Backlight Unit Type

Edge

Refresh Rate

60Hz

Life Span

30,000 hours

Display Type

NanoCell

INTERFACES

HDMI In

2 (2.0)

USB

2 (2.0)

RF In

1 (Dual b-LAN)

Service Only

1 (3.5mm Stereo Jack)

RS-232C (Control & Service)

1 (3.5mm Stereo Jack)

RJ45

1 (Ethernet)

Digital Audio Out (Optical)

TV-LINK CFG (for b-LAN)

Game Control / MPI Port

1 (RJ12)

Pillow Speaker Interface (6 Pin DIN)

OTHER FEATURES

First Use Wizard

Yes

USB Data Cloning

Yes

WOL

Yes

SNMP

Yes

SI Compatible

Yes (MPI, RS-232C)

Simplink (HDMI-CEC) plus CEC-HTNG

Yes (1.4)

IR Out

Yes (MPI, RS-232C)

Multi-code IR

Yes

Installer Menu

Yes

Welcome Screen (Boot Logo)

Yes

Instant On

Yes

RJP (Remote Jack Pack) Compatibility

HDMI (CEC)

Auto Off / Sleep Timer

Yes/Yes

Embedded b-LAN

Yes

Update Time

Yes

Diagnostics (IP Remote)

Yes

Insert Image

Yes

One Channel Map (LCM)

Yes

VLAN ID

Yes

Energy Saving Mode

Yes

Hospital Setup Wizard

Yes

EZ-Manager Wizard

Yes

Pillow Speaker

Yes

Port Block (HCAP Only)

Yes

HOSPITALITY

Pro:Centric Data Streaming (IP & RF)

Yes

Pro:Centric IP Return Path

Yes

Pro:Centric webRTC (Real Time Communication)

Yes (Javascript only)

Pro:Centric Direct (HTML)

Yes

Pro:Centric Application (Java)

Yes

HCAP (GEM / FLASH / HTML)

GEM/HTML5

Multicast / Unicast ready

Yes/Yes

Quick Menu Version

4.0

Pro:Idiom (S/W, Mobile, Lite)

Yes

WARRANTY & OTHER

Standards

EMC Certification

FCC

Warranty

Two-Year Limited Warranty

Power Cable

Yes (1.8m, Angle Type)

AUDIO

Speaker System

2.0ch

One Touch Sound Tuning

Yes

LG Sound Sync

Optical/Bluetooth Wireless

Speaker (Sound Output)

10W + 10W

AI Sound

Yes

POWER

Power Supply

120Vac, 50/60 Hz

Max Power Consumption

190W

Typical Power Consumption

160W

Standby Power Consumption

Less than 0.5W

MECHANICALS

Front Color

Ceramic Black

Kensington Lock

Yes

Weight

53.1 lbs/24.1kg

Shipping Weight

68.1 lbs/30.9kg

VESA Compatible

300 x 300

Shipping Dimensions

63" x 38.2" x 6.9"/1,600 x 970 x 175 mm

Bezel Width (L / R / T / B): On Bezel

11.3/11.3/11.3/19.8 mm

Bezel Width (L / R / T / B): Off Bezel

5.0/5.0/5.0/16.6 mm

Dimensions

57.1" x 33.1" x 2.5"/1,451 x 840 x 64 mm

SMART FEATURES

Bluetooth Sound Sync

Yes

Web Browser

Yes

Dial

Yes

Smart Share (DLNA)

Yes

Wi-Fi

Yes

Screen Share (Miracast / WiDi)

Yes

Beacon

Yes

Mobile Connection Overlay

Yes

SoftAP

Yes

LG Connect (LG TV Plus App)

Yes

Gallery Mode

Yes

Magic Motion Remote (MMR) Compatibility

Yes

SW Clock (World Clock / Alarm)

Yes

VIDEO

UHD Contents Streaming Support

USB/IP/HDMI/RF

Tru 4K Upscaler

Yes

HDR_HLG

Yes

HDR_HDR10 Pro

Yes
