CREATE a MyLG Business Account to see special pricing.

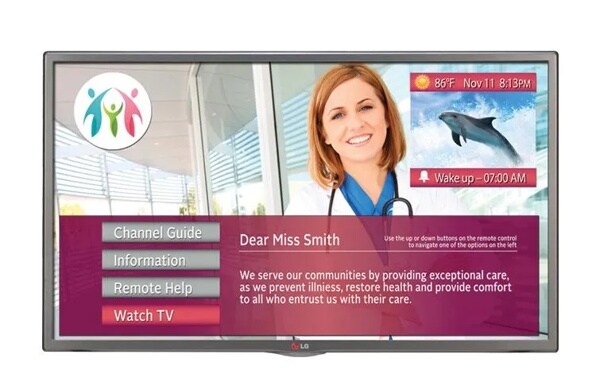

55” class (54.5" diagonal) Hospital Grade Pro:Centric SMART Dual Tuner™ with Integrated Pro:Idiom and b -LAN

Name: 55” class (54.5" diagonal) Hospital Grade Pro:Centric SMART Dual Tuner™ with Integrated Pro:Idiom and b -LAN
Brand: LG Electronics
SKU: 55LX770M
Availability: Discontinued

DISCONTINUED

55LX770M

55” class (54.5" diagonal) Hospital Grade Pro:Centric SMART Dual Tuner™ with Integrated Pro:Idiom and b -LAN

Key Features

All Specs

HOSPITAL SAFETY STANDARD COMPLIANT
CONVENIENT FOR PATIENTS AND HOSPITAL STAFF
SMART SHARE™
Exclusive Pro:Centric Applications Platform

Compare

Specs & Resources

Collapse All

OTHER

UPC

7 19192 91840 5

WARRANTY

2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

AUDIO

Clear Voice II

Yes

Sound Mode

Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)

Audio Output

10W + 10W

Optical Sound Sync

Yes

Sound Optimizer

3 modes (Off, Wall-Mount Type, Stand Type)

Sound System

2.0 ch

Smart Sound Mode

Yes

Wireless Sound Sync

Ready

INTERFACE (Rear)

RF In

GAME CONTROL/MPI Port

1 (RJ-12)

TV Link Configuration

1 (3.5mm Jack)

AV In

External Speaker Out

1 (3.5mm Jack)

Pillow Speaker Interface

1 (6-pin)

USB 2.0

PTC Service Port

1 (3.5mm Jack)

Optical Digital Audio Out

INTERFACE (Side)

USB (2.0)

HDMI

BROADCASTING SYSTEM

Analog

Yes (NTSC)

Digital

Yes (ATSC /QAM/VSB)

CABINET

VESA™ Standard Mount Interface

300mm x 300mm

WxHxD

48.9”x28.5”x2.2”

Weight

39.0 lbs

Carton

52.4”x32”x6”

Weight (Carton)

55.3 lbs

Flame Retardant

Yes

Bezel Width (on/) (mm)(L/R/U/B)

15.1mm, 12.7mm, 17.8mm

Depth (off/) (mm) (L/R/U/B)

12.6mm, 10.2mm, 15.3mm

PANEL

Frame Rate

60Hz

Dynamic Contrast Ratio

1,000,000:1

Panel Technology

Edge

Panel Size (Measured Diagonally)

55” Class (54.5” diagonal)

Native Resolution

1920 x 1080 (FHD)

Response Time

9ms

Static (Panel) Contrast Ratio

1,200:1

Viewing Angle ( H x V)

178° x 178°

ACCESSORIES

Power Cable

Hospital Power Cable

Owner's Manual / Easy Setup Guide

Yes

POWER

Voltage, Hz

110V

Stand-by

<0.5W

Watts (typical)

59 W

SPECIAL FEATURES

USB Cloning

Yes

Smart Energy Saving

Yes (Auto Power Off)

Pro:Centric Application

Yes

Multi IR Code

Yes

IR Out

Yes (MPI Port)

Kensington Lock

Yes

External Speaker Out

Variable/Fixed/Line Out, 3.5mm, Stereo, Single Ended Type (GND,L+,R+), 1W with 8Ω)

Auto Configuration

Yes (EzManager/Express Script)

Remote Diagnosis

Yes

Audio Codec

Yes AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

Pro:Idiom

Yes

Moving Picture Playback (SD/HD/Plus HD)

Divx HD

Instant ON

Yes

Multicast/ Unicast ready

Yes

WiFi Direct

Yes

HCAP Input device driver support

Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel

Yes

IP Streaming

Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

WiFi

Yes (Built-in type)

Web Browser

Yes

Auto Off /Auto Sleep

Yes

Smart Share

Yes

b-LAN

Yes

HTNG-CEC 1.3

Yes

Motion Eye Care

Yes

Installer menu

Yes

HCAP

Yes (GEM / Flash / HTML)

Commercial Smart Home

Yes

UL Hospital Safety Compliant

Yes

One Channel Map / Free-to-Guest Channel Map

Yes

Bluetooth Sound Sync

Yes

Miracast (PC to TV)

Yes

WiDi (PC to Screen Share)

Yes

Pre-loaded Apps

Yes (Commercial CP/Apps)

RF (1/2Tuner)

Yes (2 Tuner)

WOL/WoWLAN

Yes/-

DLNA (PC to Screen Share)

Yes (Smart Share)

Pro:Centric Remote Management

Yes

Pillow Speaker

Yes

SI Compatible

Yes (MPI protocol)

USB

Yes (USB 2.0)


JPEG

VIDEO

Aspect Ratio

Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)

Triple XD Engine

Yes

CERTIFICATION

Safety / EMC / ETC.

UL, FCC, RoHS, cUL, NOM, Energy Star 7.0 *except 32"

OTHER

UPC

7 19192 91840 5

WARRANTY

2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

AUDIO

Clear Voice II

Yes

Sound Mode

Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)

Audio Output

10W + 10W

Optical Sound Sync

Yes

Sound Optimizer

3 modes (Off, Wall-Mount Type, Stand Type)

Sound System

2.0 ch

Smart Sound Mode

Yes

Wireless Sound Sync

Ready

INTERFACE (Rear)

RF In

GAME CONTROL/MPI Port

1 (RJ-12)

TV Link Configuration

1 (3.5mm Jack)

AV In

External Speaker Out

1 (3.5mm Jack)

Pillow Speaker Interface

1 (6-pin)

USB 2.0

PTC Service Port

1 (3.5mm Jack)

Optical Digital Audio Out

INTERFACE (Side)

USB (2.0)

HDMI

BROADCASTING SYSTEM

Analog

Yes (NTSC)

Digital

Yes (ATSC /QAM/VSB)

CABINET

VESA™ Standard Mount Interface

300mm x 300mm

WxHxD

48.9”x28.5”x2.2”

Weight

39.0 lbs

Carton

52.4”x32”x6”

Weight (Carton)

55.3 lbs

Flame Retardant

Yes

Bezel Width (on/) (mm)(L/R/U/B)

15.1mm, 12.7mm, 17.8mm

Depth (off/) (mm) (L/R/U/B)

12.6mm, 10.2mm, 15.3mm

PANEL

Frame Rate

60Hz

Dynamic Contrast Ratio

1,000,000:1

Panel Technology

Edge

Panel Size (Measured Diagonally)

55” Class (54.5” diagonal)

Native Resolution

1920 x 1080 (FHD)

Response Time

9ms

Static (Panel) Contrast Ratio

1,200:1

Viewing Angle ( H x V)

178° x 178°

ACCESSORIES

Power Cable

Hospital Power Cable

Owner's Manual / Easy Setup Guide

Yes

POWER

Voltage, Hz

110V

Stand-by

<0.5W

Watts (typical)

59 W

SPECIAL FEATURES

USB Cloning

Yes

Smart Energy Saving

Yes (Auto Power Off)

Pro:Centric Application

Yes

Multi IR Code

Yes

IR Out

Yes (MPI Port)

Kensington Lock

Yes

External Speaker Out

Variable/Fixed/Line Out, 3.5mm, Stereo, Single Ended Type (GND,L+,R+), 1W with 8Ω)

Auto Configuration

Yes (EzManager/Express Script)

Remote Diagnosis

Yes

Audio Codec

Yes AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

Pro:Idiom

Yes

Moving Picture Playback (SD/HD/Plus HD)

Divx HD

Instant ON

Yes

Multicast/ Unicast ready

Yes

WiFi Direct

Yes

HCAP Input device driver support

Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel

Yes

IP Streaming

Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

WiFi

Yes (Built-in type)

Web Browser

Yes

Auto Off /Auto Sleep

Yes

Smart Share

Yes

b-LAN

Yes

HTNG-CEC 1.3

Yes

Motion Eye Care

Yes

Installer menu

Yes

HCAP

Yes (GEM / Flash / HTML)

Commercial Smart Home

Yes

UL Hospital Safety Compliant

Yes

One Channel Map / Free-to-Guest Channel Map

Yes

Bluetooth Sound Sync

Yes

Miracast (PC to TV)

Yes

WiDi (PC to Screen Share)

Yes

Pre-loaded Apps

Yes (Commercial CP/Apps)

RF (1/2Tuner)

Yes (2 Tuner)

WOL/WoWLAN

Yes/-

DLNA (PC to Screen Share)

Yes (Smart Share)

Pro:Centric Remote Management

Yes

Pillow Speaker

Yes

SI Compatible

Yes (MPI protocol)

USB

Yes (USB 2.0)


JPEG

VIDEO

Aspect Ratio

Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)

Triple XD Engine

Yes

CERTIFICATION

Safety / EMC / ETC.

UL, FCC, RoHS, cUL, NOM, Energy Star 7.0 *except 32"
