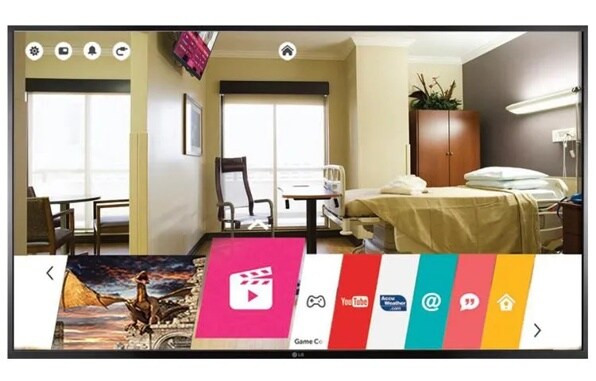

43” Class (42.5” diagonal) Hospital Grade Pro:Centric®SMART TV with Integrated Pro:Idiom® and b-LANtm

Name: 43” Class (42.5” diagonal) Hospital Grade Pro:Centric®SMART TV with Integrated Pro:Idiom® and b-LANtm
Brand: LG Electronics
SKU: 43LX774M
Availability: Discontinued

DISCONTINUED

43LX774M

43” Class (42.5” diagonal) Hospital Grade Pro:Centric®SMART TV with Integrated Pro:Idiom® and b-LANtm

Key Features

All Specs

Integrated Pro:Idiom® Digital Rights Management Technology
LG's Exclusive Pro:Centric Application Platform
Express Script or EZ-Manager Setup

Compare

Specs & Resources

Collapse All

DIMENSION

WxHxD

38.3" x 22.6" x 2.2"

Weight

22.5 lbs

Carton

41.3" x 25.8" x 5.6"

Weight (Packing)

26.7 lbs

FEATURE

Pro:Centric

Yes (Smart)

Hybrid Streaming (IP & RF)

Yes

MultiCast/HTTP Data Carousel

Yes

Pro:Centric Application

Yes (PCA3.7.5)

RF (1/2Tuner)

Yes (2 Tuner)

HCAP (GEM/FLASH/HTML) Service Carousel (TLX)

GEM / Flash / HTML

HCAP Input Device Driver Support

Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

Auto Configuration

Yes (EzMangager/Express Script)

Remote Diagnosis

Yes

Multicast/Unicast Ready

Yes

IP Streaming

Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

Commercial Smart UX

Yes (Smart Home / Input)

Commercial Smart Home

Yes

APP.(P:C Smart)

Yes (Commercial CP/Apps)

Web Browser

Yes

Remote App Compatibility

Yes

Smart Share

Yes

DLNA (Movie/Photo/Music)

Yes (Smart share)

WiDi (PC to TV)

Yes

Miracast (Mobile to TV)

Yes

Wi-Fi Direct

Yes

Google DIAL

Yes

HDMI (Simplink)

Yes

HTNG

Yes

Multi DRM

Yes

Instant ON

Yes

WOL

Yes

SI Compatible

Yes (MPI protocol)

b-LAN

Yes

WiFi

Yes (Built-in type)

Soft AP

Yes

IR Out

Yes (MPI Jack)

External Speaker Out

Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type (GND,L+,R+), 1W with 8Ω)

RJP Interface

Yes (HDMI)

RJP Compatibility

Yes, Teleadapt (HDMI), G-Link (HDMI)

USB

Yes (USB 2.0)

Moving Picture Playback (SD/HD/Plus HD)

MPEG


JPEG

Audio Codec

AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

USB Cloning

Yes

One Channel Map / Logical Channel Map

Yes

Multi IR Code

Yes

Welcome Screen (Splash Image)

Yes

Auto Off / Auto Sleep

Yes

Video Mute

Yes

Smart Energy Saving

Yes

Kensington Lock

Yes

Hospital Required Approval

Yes

Pillow Speaker

Yes

OTHER

UPC

7 19192 91971 6

Warranty

2 Year Limited Warranty (Parts and Labor)

AUDIO

Sound Mode

Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)

Speaker System

2.0 ch

Audio Output

10W + 10W

Optical Sound Sync

Yes

Smart Sound Mode

Yes

Wireless Sound Sync

Yes

BROADCASTING SYSTEM

Analog

Yes, NTSC

Digital

Yes (ATSC)

Terrestrial

VSB

Cable

Clear QAM

REAR INTERFACE

RF In

AV In

Digital Audio Out (Optical)

USB 2.0

RS-232C(D-Sub 9pin)

1 (Service Only, 3.5mm Phone Jack)

LAN Port

External Speaker Out (3.5mm phone jack)

1 (3.5mm Phone Jack)

Pillow Speaker interface

1 (6pin)

TV link Configuration

1 (3.5mm Phone Jack)

PTC Configuration

1 (3.5mm Phone Jack)

MPI Jack

1 (RJ-12)

PANEL

Viewing Angle Degree

178/178

Backlight Type

Edge

Resolution

1920x1080 (FHD)

Frame Rate

60Hz

Static (Panel) Contrast Ratio

1200:1

Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,000,000:1

Response Time (G to G)

8ms

Size

43” class (42.5" diag)

TOOL DESCRIPTION

Flame Retardent

Yes

VESA Compatible

200mm x 200mm

Bezel Width ON (Left/Right, Upper ,Bottom)

43" : 14.9, 12.5, 17.6

Bezel Width OFF (Left/Right, Upper ,Bottom)

43" : 12.6, 10.2, 15.3

ACCESSORIES

Manual/ESG

Simple book

Cable

Hospital Power Cable (6.1’)

SIDE INTERFACE

HDMI In

2 (1.4)

USB (2.0)

POWER

Voltage, Hz

110V

Stand-by

<0.5W

Typical (Watts)

76.8W

VIDEO

Aspect Ratio

Yes 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)

Triple XD Engine

Yes

Dynamic Color Enhancer

Yes

Real Cinema 24p (3:3 pull down)

Yes

CERTIFICATION

Safety

UL Hospital grade

EMC

FCC

ETC.

RoHS, cUL, NOM

DIMENSION

WxHxD

38.3" x 22.6" x 2.2"

Weight

22.5 lbs

Carton

41.3" x 25.8" x 5.6"

Weight (Packing)

26.7 lbs

FEATURE

Pro:Centric

Yes (Smart)

Hybrid Streaming (IP & RF)

Yes

MultiCast/HTTP Data Carousel

Yes

Pro:Centric Application

Yes (PCA3.7.5)

RF (1/2Tuner)

Yes (2 Tuner)

HCAP (GEM/FLASH/HTML) Service Carousel (TLX)

GEM / Flash / HTML

HCAP Input Device Driver Support

Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

Auto Configuration

Yes (EzMangager/Express Script)

Remote Diagnosis

Yes

Multicast/Unicast Ready

Yes

IP Streaming

Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

Commercial Smart UX

Yes (Smart Home / Input)

Commercial Smart Home

Yes

APP.(P:C Smart)

Yes (Commercial CP/Apps)

Web Browser

Yes

Remote App Compatibility

Yes

Smart Share

Yes

DLNA (Movie/Photo/Music)

Yes (Smart share)

WiDi (PC to TV)

Yes

Miracast (Mobile to TV)

Yes

Wi-Fi Direct

Yes

Google DIAL

Yes

HDMI (Simplink)

Yes

HTNG

Yes

Multi DRM

Yes

Instant ON

Yes

WOL

Yes

SI Compatible

Yes (MPI protocol)

b-LAN

Yes

WiFi

Yes (Built-in type)

Soft AP

Yes

IR Out

Yes (MPI Jack)

External Speaker Out

Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type (GND,L+,R+), 1W with 8Ω)

RJP Interface

Yes (HDMI)

RJP Compatibility

Yes, Teleadapt (HDMI), G-Link (HDMI)

USB

Yes (USB 2.0)

Moving Picture Playback (SD/HD/Plus HD)

MPEG


JPEG

Audio Codec

AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

USB Cloning

Yes

One Channel Map / Logical Channel Map

Yes

Multi IR Code

Yes

Welcome Screen (Splash Image)

Yes

Auto Off / Auto Sleep

Yes

Video Mute

Yes

Smart Energy Saving

Yes

Kensington Lock

Yes

Hospital Required Approval

Yes

Pillow Speaker

Yes

OTHER

UPC

7 19192 91971 6

Warranty

2 Year Limited Warranty (Parts and Labor)

AUDIO

Sound Mode

Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)

Speaker System

2.0 ch

Audio Output

10W + 10W

Optical Sound Sync

Yes

Smart Sound Mode

Yes

Wireless Sound Sync

Yes

BROADCASTING SYSTEM

Analog

Yes, NTSC

Digital

Yes (ATSC)

Terrestrial

VSB

Cable

Clear QAM

REAR INTERFACE

RF In

AV In

Digital Audio Out (Optical)

USB 2.0

RS-232C(D-Sub 9pin)

1 (Service Only, 3.5mm Phone Jack)

LAN Port

External Speaker Out (3.5mm phone jack)

1 (3.5mm Phone Jack)

Pillow Speaker interface

1 (6pin)

TV link Configuration

1 (3.5mm Phone Jack)

PTC Configuration

1 (3.5mm Phone Jack)

MPI Jack

1 (RJ-12)

PANEL

Viewing Angle Degree

178/178

Backlight Type

Edge

Resolution

1920x1080 (FHD)

Frame Rate

60Hz

Static (Panel) Contrast Ratio

1200:1

Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,000,000:1

Response Time (G to G)

8ms

Size

43” class (42.5" diag)

TOOL DESCRIPTION

Flame Retardent

Yes

VESA Compatible

200mm x 200mm

Bezel Width ON (Left/Right, Upper ,Bottom)

43" : 14.9, 12.5, 17.6

Bezel Width OFF (Left/Right, Upper ,Bottom)

43" : 12.6, 10.2, 15.3

ACCESSORIES

Manual/ESG

Simple book

Cable

Hospital Power Cable (6.1’)

SIDE INTERFACE

HDMI In

2 (1.4)

USB (2.0)

POWER

Voltage, Hz

110V

Stand-by

<0.5W

Typical (Watts)

76.8W

VIDEO

Aspect Ratio

Yes 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)

Triple XD Engine

Yes

Dynamic Color Enhancer

Yes

Real Cinema 24p (3:3 pull down)

Yes

CERTIFICATION

Safety

UL Hospital grade

EMC

FCC

ETC.

RoHS, cUL, NOM
