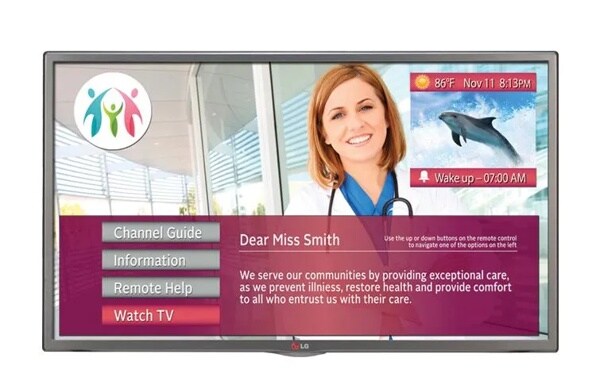

32" class (31.51" diagonal) Hospital Grade Pro:Centric SMART Dual Tuner™ with Integrated Pro:idiom®

Name: 32" class (31.51" diagonal) Hospital Grade Pro:Centric SMART Dual Tuner™ with Integrated Pro:idiom®
Brand: LG Electronics
SKU: 32LY770M
Availability: Discontinued

DISCONTINUED

32LY770M

32" class (31.51" diagonal) Hospital Grade Pro:Centric SMART Dual Tuner™ with Integrated Pro:idiom®

Key Features

All Specs

HOSPITAL SAFETY STANDARD COMPLIANT
CONVENIENT FOR PATIENTS AND HOSPITAL STAFF
SMART SHARE™
Exclusive Pro:Centric Applications Platform

Compare

Specs & Resources

Collapse All

CABINET

VESA™ Standard Mount Interface

200mm x 200mm

Color

Metallic Titan

Weight

13.2 lbs

Carton

32.1” x 20.1” x 7.5”

Without Stand

28.8” x 17.2” x 2.2”

Weight (Carton)

15.9 lbs

Flame Retardant

Yes

Depth (off/) (mm) (L/R/U/B)

10.5mm, 10mm, 14.0mm

Bezel Width (on) (mm)(L/R/U/B)

12mm, 11.6mm, 16.6mm

PANEL

Frame Rate

60Hz

Panel Technology

Direct LED

Panel Size (Measured Diagonally)

32” Class (31.51”)

Native Resolution

1920 x 1080 (FHD)

Response Time

8ms

Viewing Angle(HxV)

178°/178°

Brightness

219 cd/m2

Static (Panel) Contrast Ratio

1,200:1

Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,000,000:1

WARRANTY

2-Year Limited Warranty (Parts/Labor)

AUDIO

Clear Voice II

Yes

Audio Output

10W + 10W

Optical Sound Sync

Yes

Sound Optimizer

Yes 3 Modes (Off, Wall-Mount Type, Stand Type)

Sound System

2.0 ch

Sound Modes

Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)

Smart Sound Mode

Yes

Wireless Sound Sync

Ready

POWER

Voltage, Hz

120 V

Stand-by

0.5W

Watts (Typical)

37W

INTERFACE (Rear)

RF In

1 Rear

Pillow Speaker Interface (6pin)

1 Rear

AV In

1 Rear

Digital Audio Out

1 Rear (Optical)

External Speaker Out

1 Rear (3.5mm phone jack)

PC Audio Input

1 Rear

PTC Configuration (phone jack type)

1 Rear

LAN Port

1 Rear

TV link Configuration (phone jack type)

1 Rear

MPI Jack (RJ-12)

1 Rear

INTERFACE (Side)

HDMI In

2 Side

USB (2.0)

2 Side

SPECIAL FEATURES

USB Cloning

Yes

Intelligent Sensor

Yes

Pro:Centric Application

Yes (PCA3.0)

Pro:Centric

Yes (Smart)

Multi IR Code

Yes

IR Out

Yes (MPI Jack)

Kensington Lock

Yes (Stand)

External Speaker Out

Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8)

Auto Configuration

Yes (EzManager/Express Script)

Remote Diagnosis

Yes

Welcome Screen (Splash Image)

Yes

Audio Codec

AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

Pro:Idiom

Yes

SI Compatible (TVLink Protocol)

Yes (MPI protocol)

RJP Compatibility

Yes (LG,Teleadapt (HDMI CEC), G-Link(HDMI-CEC))

RJP Interface

Yes

Moving Picture Playback (SD/HD/Plus HD)

Divx HD

Video Mute

Yes

Commercial Smart UX (Smart Home / Input)

Yes

DLNA (Movie/Photo/Music)

Yes

WiDi (PC to TV)

Yes

WiFi Direct

Yes

HCAP Input device driver support

Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel

Yes

IP Streaming

Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

Yes (2 Tuner)

WiFi

Yes (Built-in type)

Web Browser

Yes

APP. (P:C Smart)

Yes (Commercial CP/Apps)

Auto Off /Auto Sleep

Yes

Smart Share

Yes

b-LAN

Yes

HTNG-CEC 1.3

Yes

Commercial Smart Home

Yes

Hotel Mode / PDM / Installer Menu

Yes

Pillow Speaker

Yes

HCAP (GEM/FLASH)

Yes, GEM/FLASH

One Channel Map/ Logical Channel Map

Yes

Miracast (Mobile to TV)

Yes

USB

Yes (USB 2.0)


JPEG

REQUIRED LISTINGS

Safety

cUL, UL, FCC, NOM

RoHS Compliant

Yes

VIDEO

Aspect Ratio

Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)

Triple XD Engine

Yes

BROADCASTING SYSTEM

Analog

Yes (NTSC)

Digital

Yes (ATSC /QAM/VSB)

CABINET

VESA™ Standard Mount Interface

200mm x 200mm

Color

Metallic Titan

Weight

13.2 lbs

Carton

32.1” x 20.1” x 7.5”

Without Stand

28.8” x 17.2” x 2.2”

Weight (Carton)

15.9 lbs

Flame Retardant

Yes

Depth (off/) (mm) (L/R/U/B)

10.5mm, 10mm, 14.0mm

Bezel Width (on) (mm)(L/R/U/B)

12mm, 11.6mm, 16.6mm

PANEL

Frame Rate

60Hz

Panel Technology

Direct LED

Panel Size (Measured Diagonally)

32” Class (31.51”)

Native Resolution

1920 x 1080 (FHD)

Response Time

8ms

Viewing Angle(HxV)

178°/178°

Brightness

219 cd/m2

Static (Panel) Contrast Ratio

1,200:1

Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,000,000:1

WARRANTY

2-Year Limited Warranty (Parts/Labor)

AUDIO

Clear Voice II

Yes

Audio Output

10W + 10W

Optical Sound Sync

Yes

Sound Optimizer

Yes 3 Modes (Off, Wall-Mount Type, Stand Type)

Sound System

2.0 ch

Sound Modes

Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)

Smart Sound Mode

Yes

Wireless Sound Sync

Ready

POWER

Voltage, Hz

120 V

Stand-by

0.5W

Watts (Typical)

37W

INTERFACE (Rear)

RF In

1 Rear

Pillow Speaker Interface (6pin)

1 Rear

AV In

1 Rear

Digital Audio Out

1 Rear (Optical)

External Speaker Out

1 Rear (3.5mm phone jack)

PC Audio Input

1 Rear

PTC Configuration (phone jack type)

1 Rear

LAN Port

1 Rear

TV link Configuration (phone jack type)

1 Rear

MPI Jack (RJ-12)

1 Rear

INTERFACE (Side)

HDMI In

2 Side

USB (2.0)

2 Side

SPECIAL FEATURES

USB Cloning

Yes

Intelligent Sensor

Yes

Pro:Centric Application

Yes (PCA3.0)

Pro:Centric

Yes (Smart)

Multi IR Code

Yes

IR Out

Yes (MPI Jack)

Kensington Lock

Yes (Stand)

External Speaker Out

Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8)

Auto Configuration

Yes (EzManager/Express Script)

Remote Diagnosis

Yes

Welcome Screen (Splash Image)

Yes

Audio Codec

AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

Pro:Idiom

Yes

SI Compatible (TVLink Protocol)

Yes (MPI protocol)

RJP Compatibility

Yes (LG,Teleadapt (HDMI CEC), G-Link(HDMI-CEC))

RJP Interface

Yes

Moving Picture Playback (SD/HD/Plus HD)

Divx HD

Video Mute

Yes

Commercial Smart UX (Smart Home / Input)

Yes

DLNA (Movie/Photo/Music)

Yes

WiDi (PC to TV)

Yes

WiFi Direct

Yes

HCAP Input device driver support

Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)

Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel

Yes

IP Streaming

Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)

Yes (2 Tuner)

WiFi

Yes (Built-in type)

Web Browser

Yes

APP. (P:C Smart)

Yes (Commercial CP/Apps)

Auto Off /Auto Sleep

Yes

Smart Share

Yes

b-LAN

Yes

HTNG-CEC 1.3

Yes

Commercial Smart Home

Yes

Hotel Mode / PDM / Installer Menu

Yes

Pillow Speaker

Yes

HCAP (GEM/FLASH)

Yes, GEM/FLASH

One Channel Map/ Logical Channel Map

Yes

Miracast (Mobile to TV)

Yes

USB

Yes (USB 2.0)


JPEG

REQUIRED LISTINGS

Safety

cUL, UL, FCC, NOM

RoHS Compliant

Yes

VIDEO

Aspect Ratio

Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)

Triple XD Engine

Yes

BROADCASTING SYSTEM

Analog

Yes (NTSC)

Digital

Yes (ATSC /QAM/VSB)
