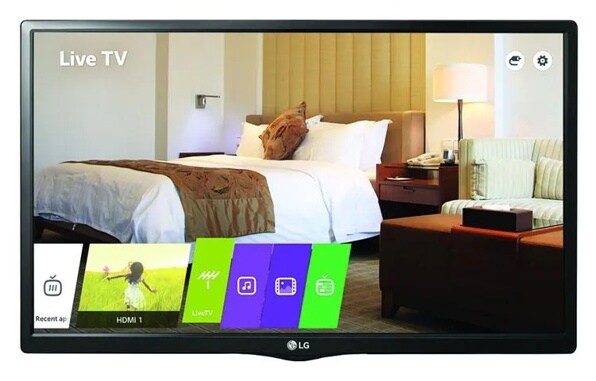

LW760M Hospital Grade Pro:Centric SMART with Integrated Pro:Idiom
DISCONTINUED
28LW760M
LW760M Hospital Grade Pro:Centric SMART with Integrated Pro:Idiom
Compare
Specs & Resources
REAR
RF In
1
LAN Port
1
Speaker Out/ Line Out
1 (3.5mm jack)
Audio Out
1 (Optical)
Service Only Port
1 (Common use PTC & CPU Service, 3.5mm phone jack)
Pillow Speaker Interface
1 (6-pin)
MPI Port
1 (RJ-12)
CABINET
Weight
9.9 lbs
VESA™ Compatible
100mm x 100mm
WxHxD (w/o stand)
25.3” x 15.6” x 2.5”
Bezel Width (Left/Right, Upper, Bottom) : on bezel (mm)
16/16, 15.4, 24.1
Bezel Width (Left/Right, Upper, Bottom) : off bezel (mm)
14.3/14.3, 13.7, 22.5
Weight (Box)
13 lbs
WxHxD (Box)
28.5” x 18.5” x 6”
PANEL
Viewing Angle Degree
178x178
Backlight Type
Edge LED
Resolution
1,366 x 768 (HD)
Frame Rate
60Hz
Static (Panel) Contrast Ratio
1,000:1
Dynamic Contrast Ratio (Dynamic MCI (Hz))
1,000,000:1
Response Time (G to G)
9ms
OTHER
UPC
7 19192 91843 6
Warranty
2 Year Limited Warranty (Parts and Labor) Extended Warranties Available
ACCESSORIES
Power Cable
Yes (5.9”, Hospital Grade)
Owner's Manual / Easy Setup Guide
Yes
AUDIO
Sound Mode
Yes (Standard, News, Music, Cinema, Sport, Game)
Speaker System
2.0 ch
Audio Output
5W + 5W
Optical Sound Sync
Yes
Sound Optimizer
Yes (Off, Wall-Mount Type, Stand Type)
Smart Sound Mode
Yes
Wireless Sound Sync
Yes
POWER
Voltage, Hz
100 ~ 120V, 50/60Hz
Typical (Watts) - Based on Energy Star Qualified
23.0
STANDARD CERTIFICATION
Safety
UL
EMC
FCC
ETC.
RoHS, Hospital UL
Flame Retardant
Yes
VIDEO
Aspect Ratio
Yes (16:9, Just Scan, Set By Program, 4:3, Zoom, Cinema Zoom1)
Triple XD Engine
Yes
Dynamic Color Enhancer
Yes
Real Cinema 24p (3:3 pull down)
Yes
FEATURES
Installer Menu
Yes
HDMI-CEC
Yes
HTNG-CEC
Yes
USB
Yes (USB 2.0)
JPEG
Audio Codec
AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
Multi IR Code
Yes
Motion Eye Care
Yes
USB Cloning
Yes
Bluetooth Sound Sync
Yes
Soft AP
Yes
Wi-Fi
Yes (Built-in type)
Pro:Idiom
Yes
DIAL
Yes
Wi-Fi Direct
Yes
Smart Share
Yes
Remote App Compatibility
Yes
Web Browser
Yes
Pro:Centric
Yes (Smart)
IP Streaming
Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support [Smart Share] [IGMPv3 SSM Support])
RF
Yes (1 Tuner)
Remote Diagnosis
Yes
External Speaker Out
Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single Ended Type [GND,L+,R+], 1W with 8Ω)
Moving Picture Playback (SD/HD/Plus HD)
Divx HD
Auto Off / Auto Sleep
Yes
Kensington Lock
Yes
Smart Energy Saving
Yes
Welcome Screen
Yes
Pro:Centric Remote Management
Yes
Pro:Centric Application
Yes
Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel
Yes
HCAP (GEM/FLASH/HTML) Service Carousel (TLX)
GEM / Flash / HTML
HCAP Input Device Driver Support
Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)
Auto Configuration
Yes (EZ-Manager/Express Script)
Multicast/Unicast Ready
Yes
Commercial Smart
Yes
Commercial Smart Home
Yes
Pre-loaded Apps
Yes (Commercial CP/Apps, Web Browser, Remote App Compatibility)
DLNA (Movie/Photo/Music)
Yes
WiDi (PC to TV)
Yes
Miracast (Mobile to TV)
Yes
Multi DRM
Yes
Instant ON
Yes
WOL
Yes
SI Compatible
Yes (MPI protocol)
IR Out
Yes (MPI Port)
One Channel Map / FTG Channel Map
Yes
BROADCASTING SYSTEM
Analog
Yes (NTSC)
Digital
Yes (ATSC)
Terrestrial
VSB
Cable
Clear QAM/VSB
SIDE
HDMI In
2
USB
2 (2.0)
AV In
Yes
