LBAF MAGNIT Studio Series MicroLED Wall

By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, the LBAF series delivers deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details hidden in the shadows visible, providing audiences a sense of immersion.

Carefully selected LED chips create a narrowed wavelength, which provide LBAF series uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports realistic color expression.

The angle adapter system and fast lock are designed to facilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.

The module is easily removed, as it features rear service access that does not require any tools. Positioning pins and magnets assist in panel adjustment resulting in a smooth screen assembly. Installation options vary by stacking or hanging, using optional accessories such as single or double beams for customization to the studio environment.

Prevent the flow of black lines by adjusting the LED display’s V-Sync to match the frequency between the camera and Direct View LED. This can reduce a rolling shutter effect while the camera is shooting.

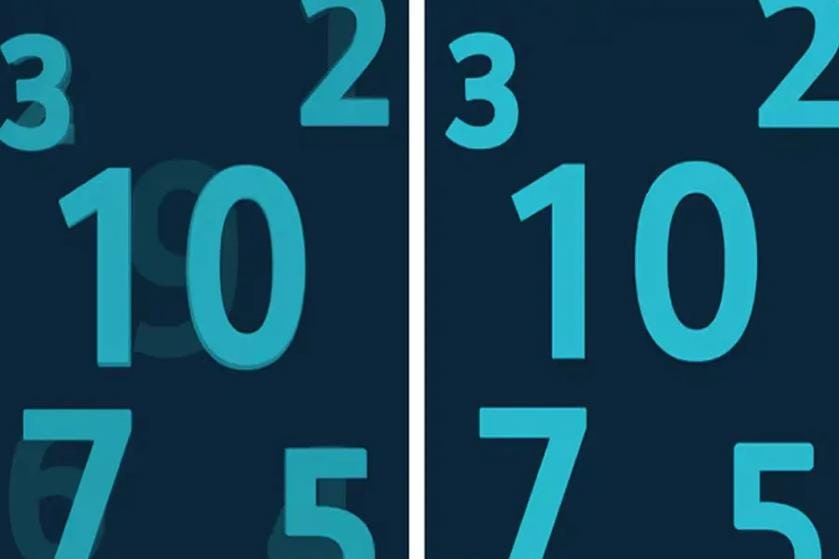

Phase Shift can make adjustments to the Direct View LED screen output timing. The Direct View LED screen can adjust timing manually to remove visual artefacts with Phase Shift if the camera recording results have caused a double image (double frame).

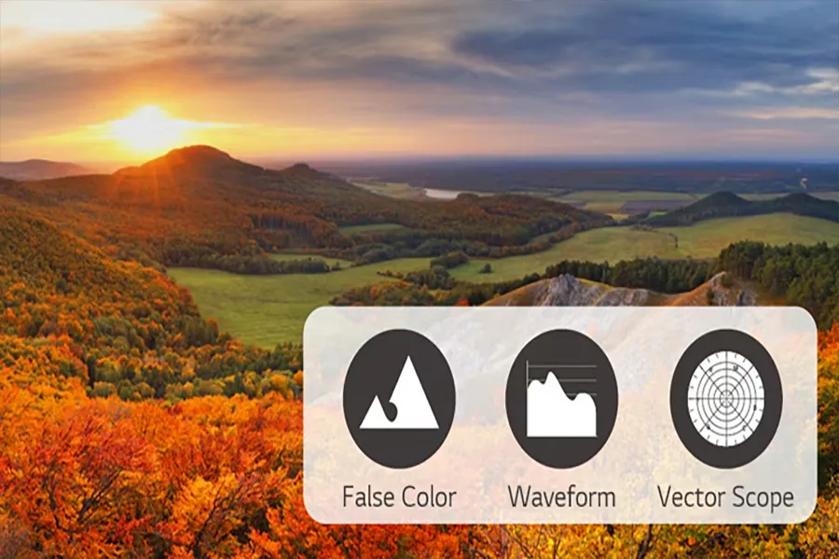

This series analyzes video input of Y’, Y’-Cb, and Y’Cr and shows Waveform and Vector Scope on LED tiles. False Color, Waveform, and Vector Scope for more video details or adjustments can be read on a display.

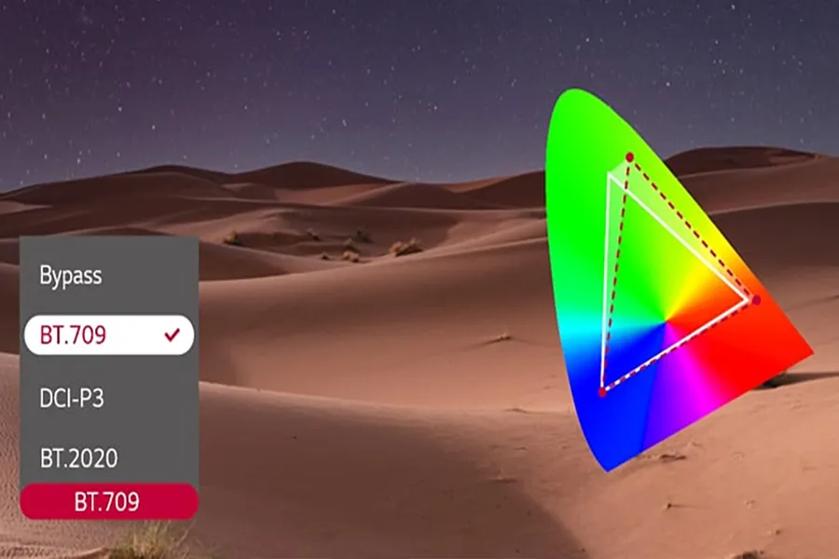

The RGB color gamut can be manually adjusted to match colors between LED tiles and camera to achieve desired colors.

The structure of LBAF series minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated from multiple angles, captivating various onlookers when installed in a large spaces.

With LED displays supporting customized 3D-LUT, users can achieve their desired colors.

Although HDR metadata is not transferred from recorded video, tone-mapping can be made with this HDR manual adjustment feature.

Powered by LG’s high performance system controller, the LBAE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare.
