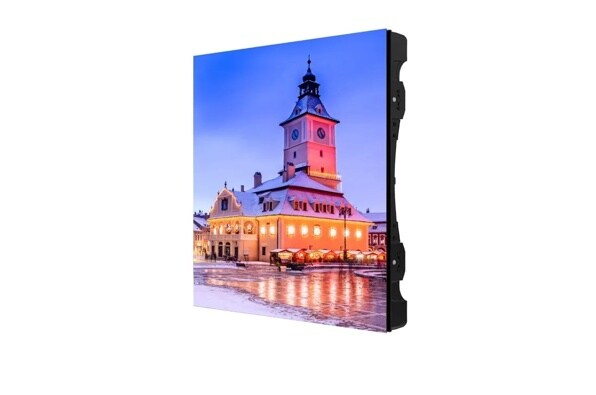

LBAE Studio Series Wall Direct View LED with webOS™

With pinpoint color reproduction, low latency of video processing, and HDR capability.

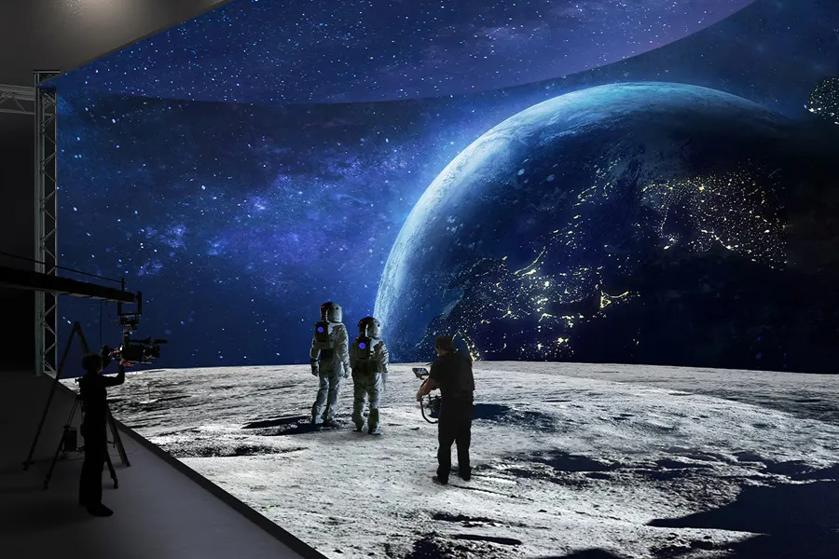

The mechanical connection between the two panels is secured by an angle adapter system and a fast lock, adjustable by 10 degrees in concave areas and 5 degrees in convex areas.

The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

Installation can be performed by stacking or hanging, using the optional accessories (single, double, triple beams) for customization to the studio environment.

Prevent the flow of black lines by adjusting the LED display’s V-Sync to match the frequency between the camera and Direct View LED. This can reduce a rolling shutter effect while the camera is shooting.

Phase Shift can make adjustments to the Direct View LED screen output timing. The Direct View LED screen can adjust timing manually to remove visual artefacts with Phase Shift if the camera recording results have caused a double image (double frame).

This series analyzes video input of Y’, Y’-Cb, and Y’Cr and shows Waveform and Vector Scope on LED tiles. False Color, Waveform, and Vector Scope for more video details or adjustments can be read on a display.

The RGB color gamut can be manually adjusted to match colors between LED tiles and camera to achieve desired colors.

Gamma adjustment can be made manually from 0 to 1023 to calibrate RGB and fix errors.

With LED displays supporting customized 3D-LUT, users can achieve their desired colors.

Although HDR metadata is not transferred from recorded video, tone-mapping can be made with this HDR manual adjustment feature.

Powered by LG’s high performance system controller, the LBAE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare.
