DISCONTINUED
LAEC015

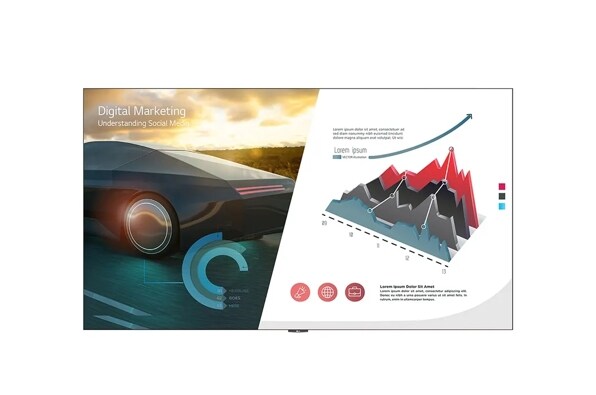

DISCONTINUED 136" All-in-One Direct View LED with webOS™, Embedded System Controller, & Built-in Speaker
Key Features
All Specs

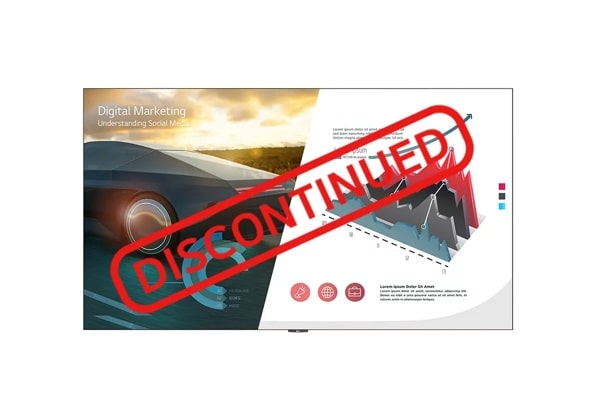

- This product has been DISCONTINUED. See all our current Direct View LED.
Compare
Specs & Resources
Physical Parameters
LED Type
Single SMD
Pixel Pitch
1.56 mm
Screen Size (Inches)
136"
Screen Resolution (W x H)
1,920 x 1,080 (FHD)
Module Resolution (W x H)
Not Available
Module Dimensions (W x H)
9.8 x 11. in / 250 × 281.3 mm
No. of Modules per Screen (W x H)
72 (12 x 6)
Screen Dimensions (W x H x D)
118.3 x 66.6 x 2.8 in / 3,004 × 1,692 × 70 mm
Screen Surface Area
54.5 ft² / 5.06 m²
Weight
291 lbs / 132 kg
Physical Pixel Density
409,600 pixels/m²
Flatness of Cabinet
±0.2 mm
Cabinet Material
Die-cast Aluminum
Service Access
Front
Electrical
Heat Dissipation (Max.)
5,800 BTU
Heat Dissipation (Avg.)
2,321 BTU
Power Consumption (Max.)
1700W
Power Supply
100-240V
Refresh Rate
3,960 Hz
Frame Rate
50 / 60 Hz
Power Consumption (Avg.)
680W
Power Consumption per Unit Area (Max.)
336 W/m²
Heat Dissipation per Unit Area (Max.)
1,146 BTU/m²
Connectivity
HDMI In
Yes (x3)
IR In (3.5 mm)
Yes (x1)
DisplayPort In
Yes (x1)
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RJ45 (LAN)
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
AC In
Not Available
Optical Digital Audio Out
Yes (x1)
Controller
Controller
Embedded
Optical
Max. Brightness (After Calibration)
Up to 500 nits
Color Temperature
3,200-9,300K
Viewing Angle (H x V)
160° x 160°
Brightness Uniformity
98%
Color Uniformity
±0.015 Cx, Cy
Contrast Ratio
3000:1
Processing Depth
16 bit (HDR10, HDR10 Pro)
Lifetime
up to 100,000 hrs (Half Brightness)
Audio/Sound
Built-in Speakers
Yes (x2) 9W
Features
Magic Remote Compatibility
Yes
Crestron Certified Compatibility
Yes
LG Software Compatible
ConnectedCare™
Yes
LG One:Quick Share
Yes
Regulatory & Certifications
ETL (Regulatory)
Yes
IP Rating (Rear)
IP20
IP Rating (Front)
IP30
CB
Yes
REACH (Environmental)
Yes
Safety 60950-1
No
CE (Regulatory)
Yes
RoHS (Environmental)
Yes
FCC (Regulatory)
Yes
BS476 Part7 (UK Fire Rating)
No
cTUVus
No
TAA Compliance
No
Warranty & Other
Warranty
3 Year Limited
Assembled In
China
Onscreen Display Languages
Not Available
Optional Accessories
Floor Stand
Basic Accessories (included)
Wall Mount
Environmental Conditions
Operation Humidity
10-80% RH
Operation Temperature
32°F to 104°F / 0°C to 40°C
