3.3 mm Miraclass LED Cinema Screen

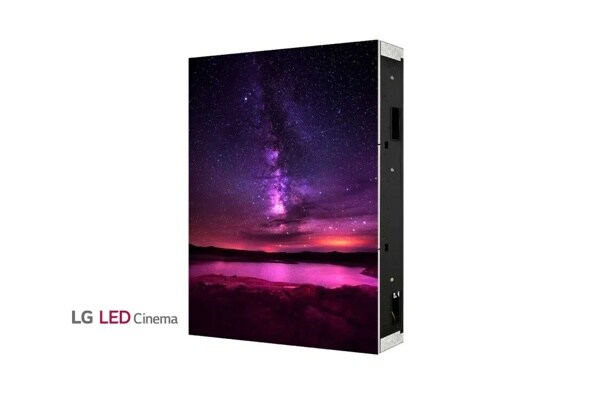

LAD Series Product Gallery Image Front Right angle view with infill
LAD033FB7B0 Product Gallery Image Rear view
LAD033FB7B0 Product Gallery Image Bottom view
LAD033FB7B0 Product Gallery Image Top view
DISCONTINUED
LAD Series Product Gallery Image Front Right angle view with infill
LAD033FB7B1

3.3 mm Miraclass LED Cinema Screen

Key Features
All Specs
  • This product has been DISCONTINUED. See all our current Direct View LED.

Compare

Specs & Resources

Collapse All

LED Type
Single SMD
Pixel Pitch
3.3 mm
Module Resolution (W x H)
96 x 90
Module Dimensions (W x H)
12.6 x 11.8 in / 320 x 300 mm
Weight per Module
Not Available
Total Modules (per cabinet)
6
No. of Modules per Cabinet (W x H)
2 x 3
Cabinet Resolution (W x H)
192 x 270
Cabinet Dimensions (W x H x D)
25.2 x 35.4 x 7.5 in / 640 x 900 x 191 mm
Cabinet Surface Area
Not Available
Weight per Cabinet
63.9 lbs / 29 kg
Weight per Unit Area
Not Available
Physical Pixel Density
Not Available
Flatness of Cabinet
Not Available
Cabinet Material
Iron & Aluminum
Service Access
Rear
90 Degree Corner Cut
No
Curveable
No
Minimum Radius
N/A
Controller
Embedded
min viewing distance (5-7 mm per foot)
17-23 feet
Power Supply
100 to 240V
Refresh Rate
3,072 Hz
Frame Rate
50 / 60 Hz
Power Consumption per Cabinet (Avg.)
90W
Power Consumption per Cabinet (Max.)
90W
Heat Dissipation per Cabinet (Avg.)
Not Available
Power Consumption per Unit Area (Max.)
Not Available
Heat Dissipation per Cabinet (Max.)
Not Available
Heat Dissipation per Unit Area (Max.)
Not Available
Max. Brightness (After Calibration)
Up to 48 nits
Color Temperature
Not Available
Brightness Uniformity
85%
Color Uniformity
±0.05 Cx, Cy
Contrast Ratio
4,000:1
Processing Depth
16 bit
Visual Viewing Angle (H x V)
120° x 120°
Lifetime (Half brightness)
Up to 100,000 hrs
ETL (Regulatory)
No
RoHS (Environmental)
No
KC
No
CB
No
IP Rating (Solid / Liquid Ingress) (Front)
IP30
REACH (Environmental)
No
FCC (Regulatory)
No
EN13501-1
No
Fire Protection
No
BS476 Part7 (UK Fire Rating)
No
Eye Comfort
No
Safety 60950-1
No
cTUVus
No
CE (Regulatory)
No
CCC
No
IP Rating (Solid / Liquid Ingress) (Rear)
IP20
TAA Compliance
No
Warranty
3 Year Limited
Operating Humidity
10% to 80% RH
Operating Temperature
32° F to 104° F / 0° C to 40° C
