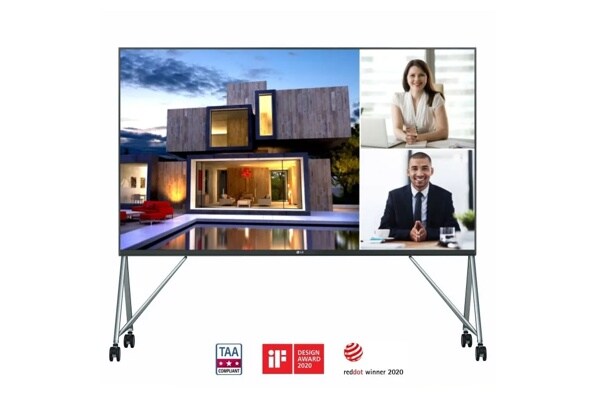

130” All-in-one DVLED LAAF Series Signage with HDR10 Support, SoC with webOS, Compatible with AV Control Systems
DISCONTINUED
LAA015F
130” All-in-one DVLED LAAF Series Signage with HDR10 Support, SoC with webOS, Compatible with AV Control Systems
Key Features
All Specs
- Pixel Pitch: 1.5mm
- Screen Size: 130"
- Brightness: 500 cd/m²
- HDR10 Pro / Surface Sound
- Embedded System Controller
- TAA Compliant
Compare
Specs & Resources
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.50
Unit Case Dimensions (W x H x D, mm)
960x540x128.5
Unit Case Surface Area (m²)
0.518
Weight per Unit Case (kg/unit)
Master: 20.85, Auxiliary: 19.24
Physical Pixel Density (pixels/m²)
444,444
Flatness of Unit Case (mm)
±0.2
Unit Case Material
Front : Die Casting Aluminum, Rear : PC+ABS
Service Access
Front and Rear
Screen Resolution (WxH)
1,920x1,080
Screen Dimensions (WxH, mm)
2,880x1,620x128.5
Screen Weight (kg)
162.1
No. of Modules per Unit Case (WxH)
4x3
Unit Case Resolution (WxH)
640x360
Weight per Square Meter (kg/㎡)
37.6
CERTIFICATION
EMC
FCC Class A / CE / KC
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
Environment
RoHS
OPTICAL SPECIFICATIONS
Min. Brightness (After Calibration)
500 cd/㎡
Color Temperature
6,500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
16 (HDR10)
ELECTRICAL SPECIFICATIONS
Power Consumption (W/unit, Avg.)
1,765
Power Consumption (W/unit, Max.)
3,530
Power Consumption (W/㎡, Max.)
760
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
CONNECTIVITY(EMBEDDED CONTROLLER)
Video Inputs
HDMI In(3), DP In, USB
Control
RJ45 In, RS232C In/out
Special Features
Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected2)
OPERATION SPECIFICATIONS
Operating Temperature
0℃ to 40℃
Operating Humidity
10-80% RH
Lifetime (Half brightness, hrs)1
100,000
All image simulations are for illustration purposes only.
